Main 12 Causes of Overheating

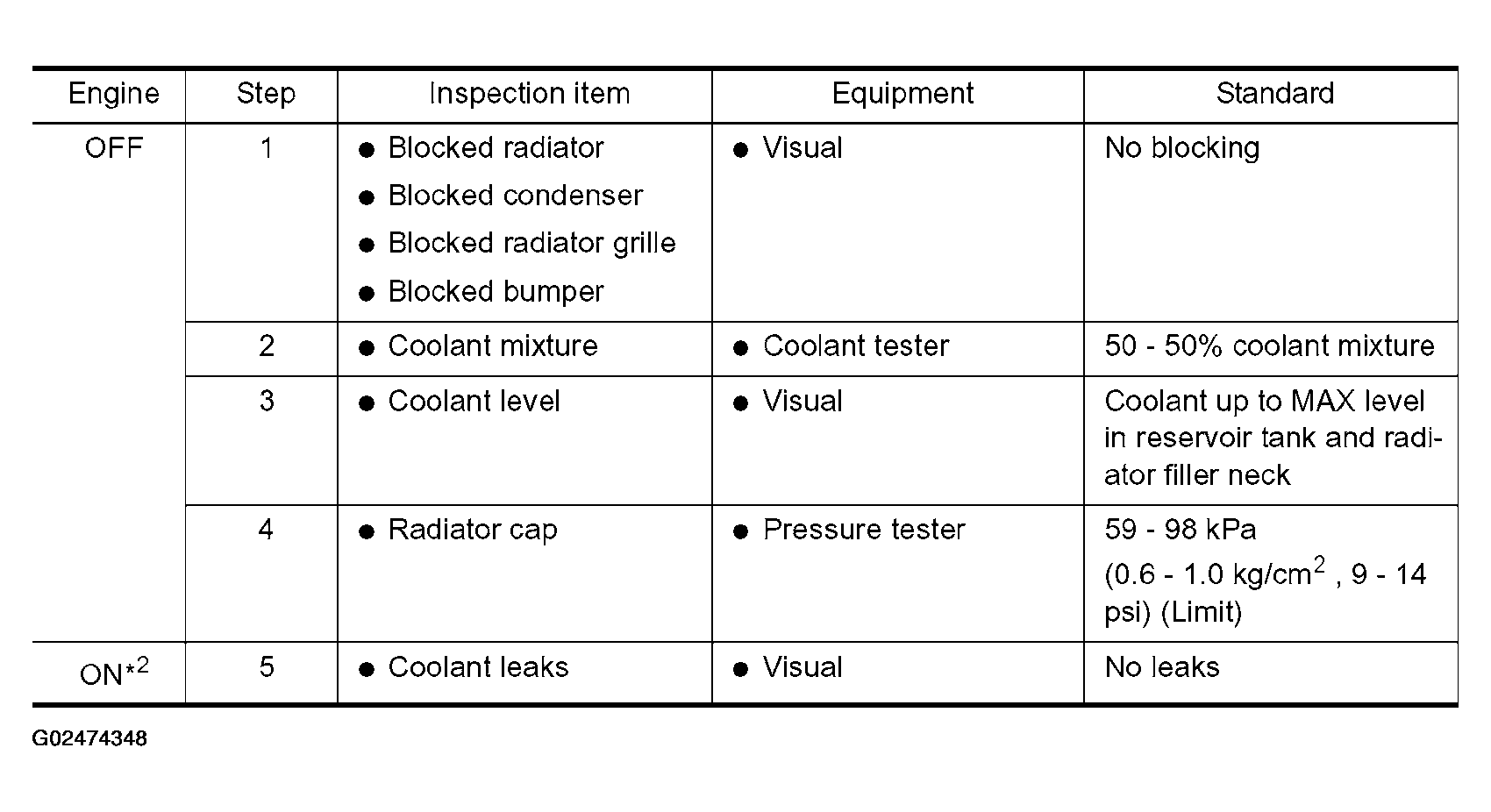

Fig 1: Overheating Causes Reference (1 Of 2)
G02474348Courtesy of NISSAN MOTOR CO., U.S.A.

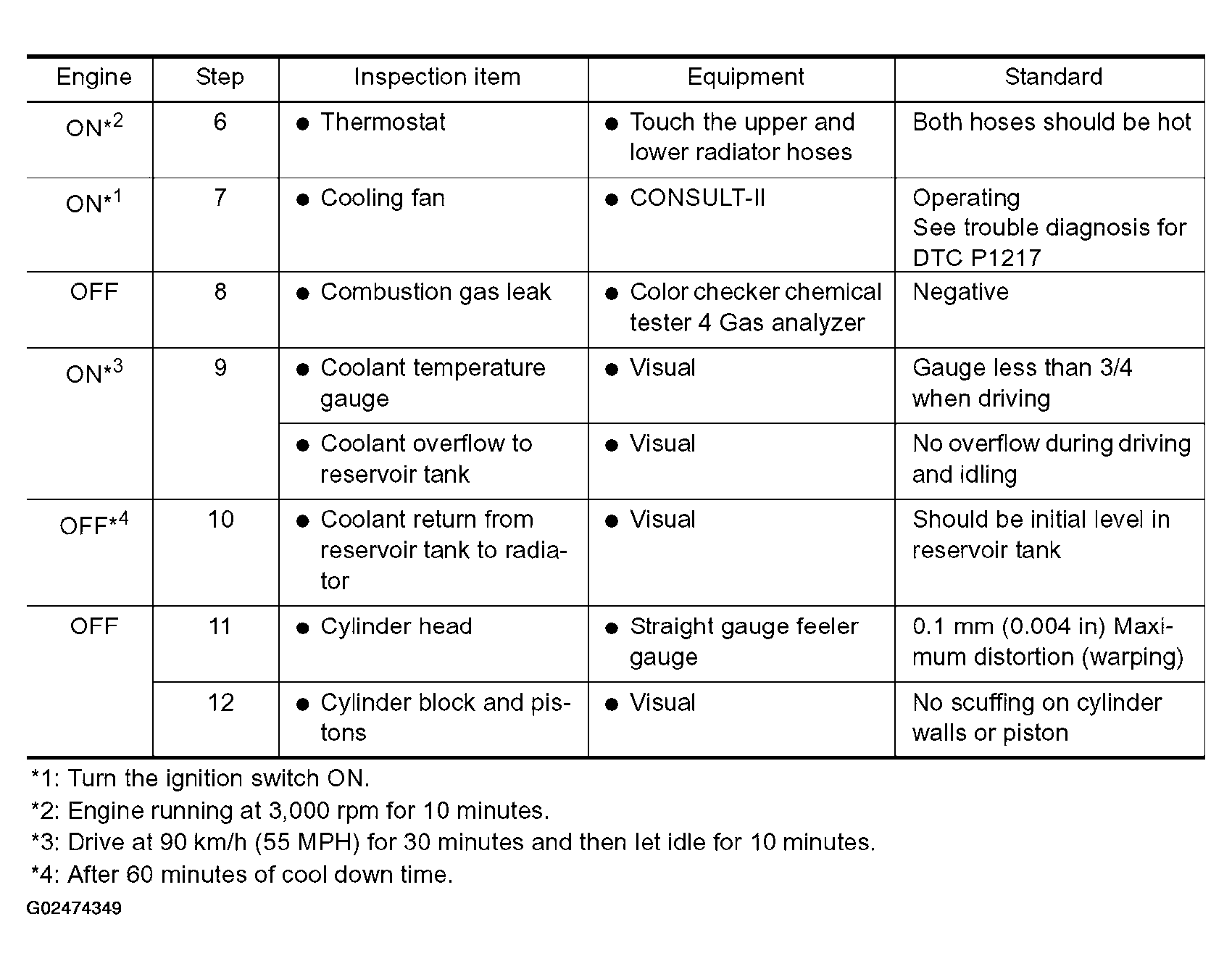

Fig 2: Overheating Causes Reference (2 Of 2)
G02474349Courtesy of NISSAN MOTOR CO., U.S.A.

For more information, refer to "OVERHEATING CAUSE ANALYSIS ".
