With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.

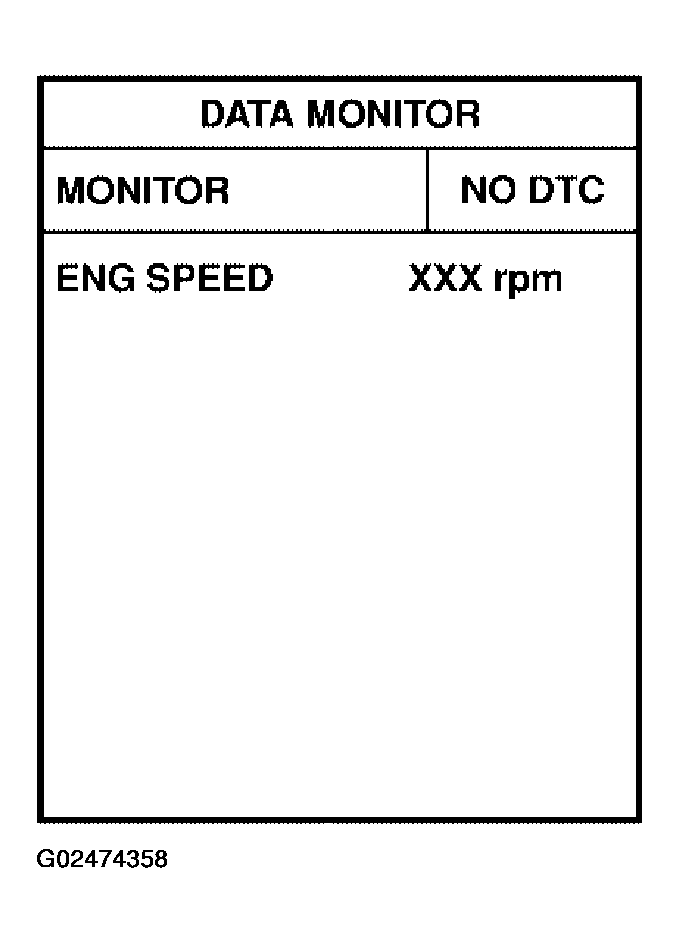

    Fig 1: CONSULT-II Data Monitor Display
    G02474358Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch OFF, wait at least 10 seconds.
  4. Turn ignition switch ON.
  5. Repeat step 3 to 4 for 32 times.
  6. If 1 st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "
