Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten three ground screws on the body. Refer to "GROUND INSPECTION ".

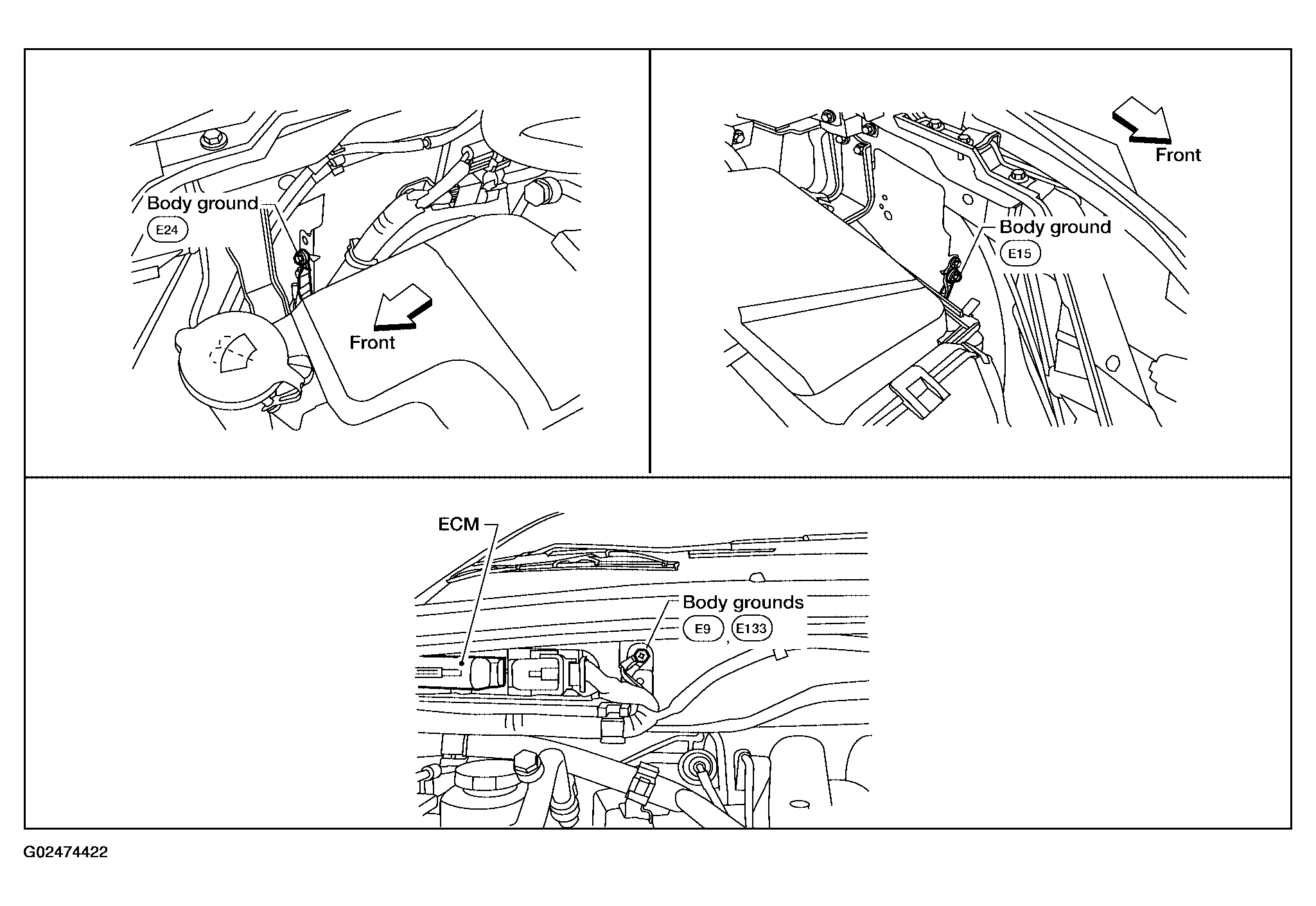

      Fig 1: Loosening & Retightening Ground Screws
      G02474422Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: GO TO 2.
    • NG: Repair or replace ground connections.
  2. RETIGHTEN AIR FUEL RATIO (A/F) SENSOR 1

    Loosen and retighten the air fuel ratio (A/F) sensor 1.

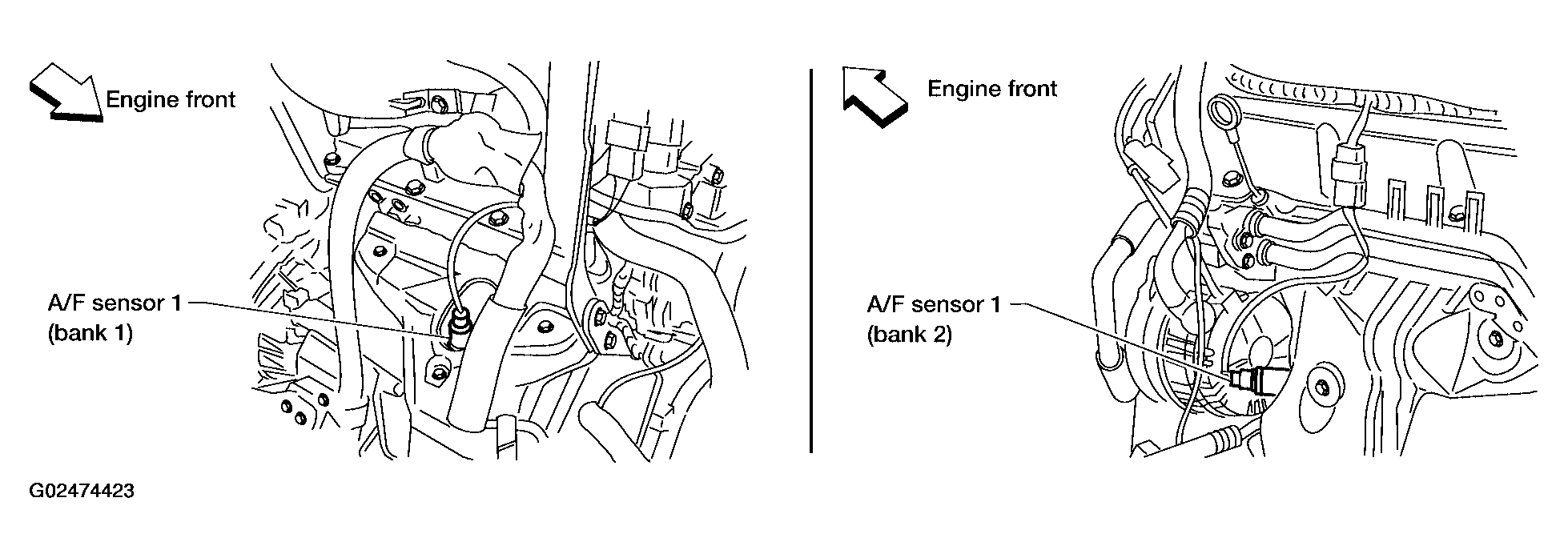

    Fig 2: Air Fuel Ratio (A/F) Sensors
    G02474423Courtesy of NISSAN MOTOR CO., U.S.A.
    • Tightening torque: 50 N.m (5.1 kg-m, 37 ft-lb)
    • : GO TO 3.
  3. CLEAR THE SELF-LEARNING DATA.

    With CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Select "SELF-LEARNING CONT" in "WORK SUPPORT" mode with CONSULT-II.

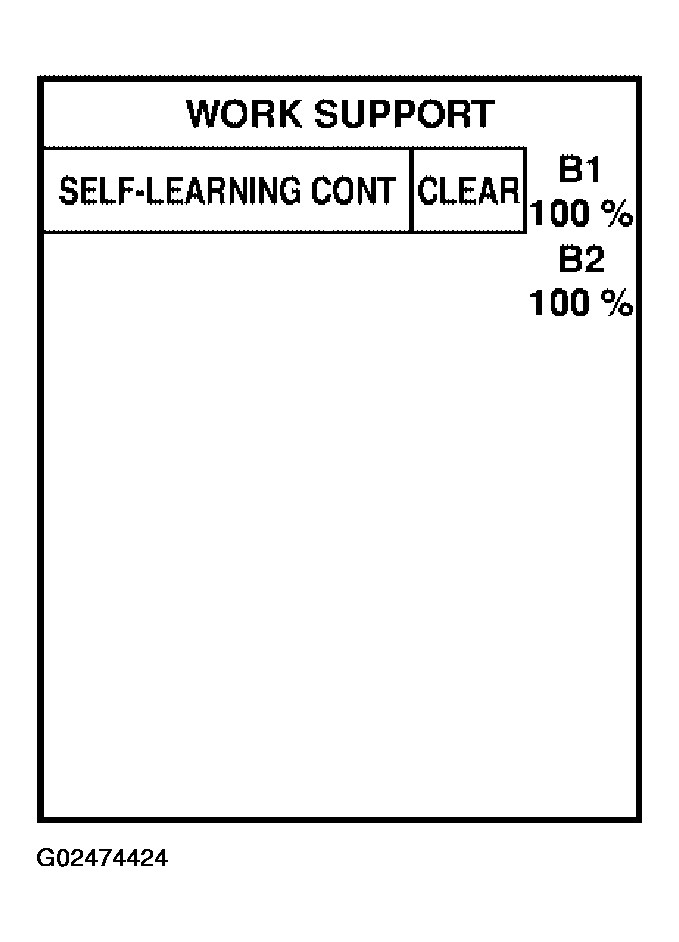

      Fig 3: CONSULT-II Work Support
      G02474424Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Clear the self-learning control coefficient by touching "CLEAR".
    4. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0172 or P0175 detected?

      Is it difficult to start engine?

    Without CONSULT-II

    1. Start engine and warm it up to normal operating temperature.
    2. Turn ignition switch OFF.
    3. Disconnect mass air flow sensor harness connector.

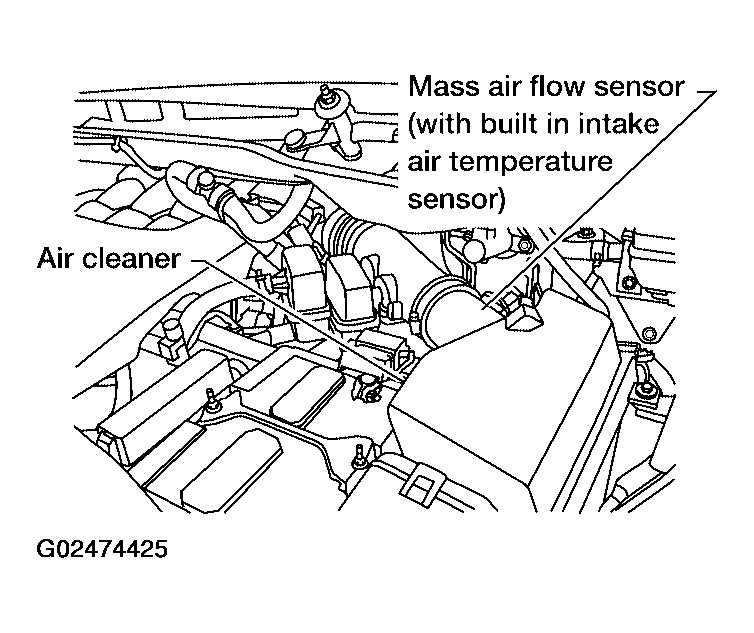

      Fig 4: Disconnecting Mass Air Flow Sensor Harness Connector
      G02474425Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Restart engine and let it idle for at least 5 seconds.
    5. Stop engine and reconnect mass air flow sensor harness connector.
    6. Make sure DTC P0102 is displayed.
    7. Erase the DTC memory. Refer to "HOW TO ERASE EMISSION-RELATED DIAGNOSTIC INFORMATION ".
    8. Make sure DTC P0000 is displayed.
    9. Run engine for at least 10 minutes at idle speed.

      Is the 1st trip DTC P0172 or P0175 detected?

      Is it difficult to start engine?

    Yes or No

  4. CHECK HARNESS CONNECTOR
    1. Turn ignition switch OFF.
    2. Disconnect A/F sensor 1 harness connector.

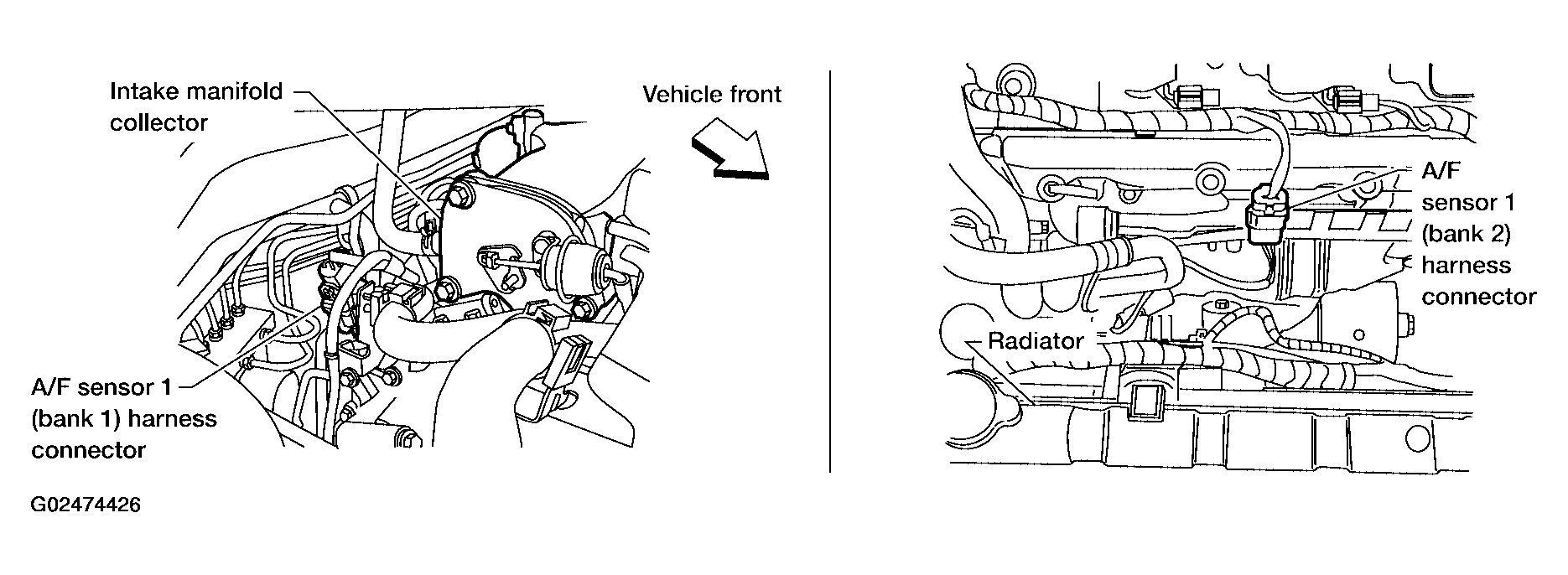

      Fig 5: Disconnecting A/F Sensor 1 Harness Connector
      G02474426Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check harness connector for water.
      • Water should not exit.

    OK or NG

    • OK: GO TO 5.
    • NG: Repair or replace harness connector.
  5. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
    1. Turn ignition switch ON.
    2. Check voltage between A/F sensor 1 terminal 3 and ground with CONSULT-II or tester.

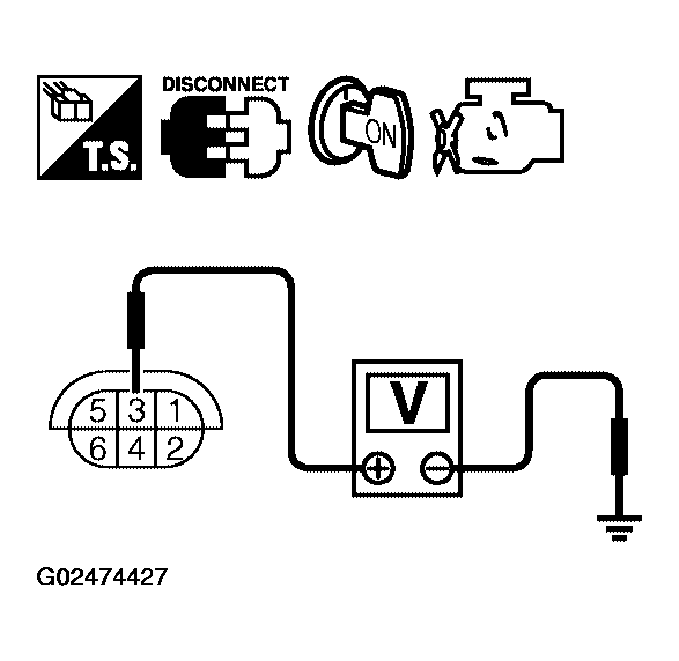

      Fig 6: Checking Voltage Between A/F Sensor 1 Terminal 3 & Ground
      G02474427Courtesy of NISSAN MOTOR CO., U.S.A.
      • Voltage: Battery voltage

    OK or NG

    • OK: GO TO  7.
    • NG: GO TO 6.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E5, F14
    • IPDM E/R harness connector E122
    • 15A fuse
    • Harness for open or short between A/F sensor 1 and fuse
    • : Repair or replace harness or connectors.
  7. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between the following terminals.

      Refer to WIRING DIAGRAM .

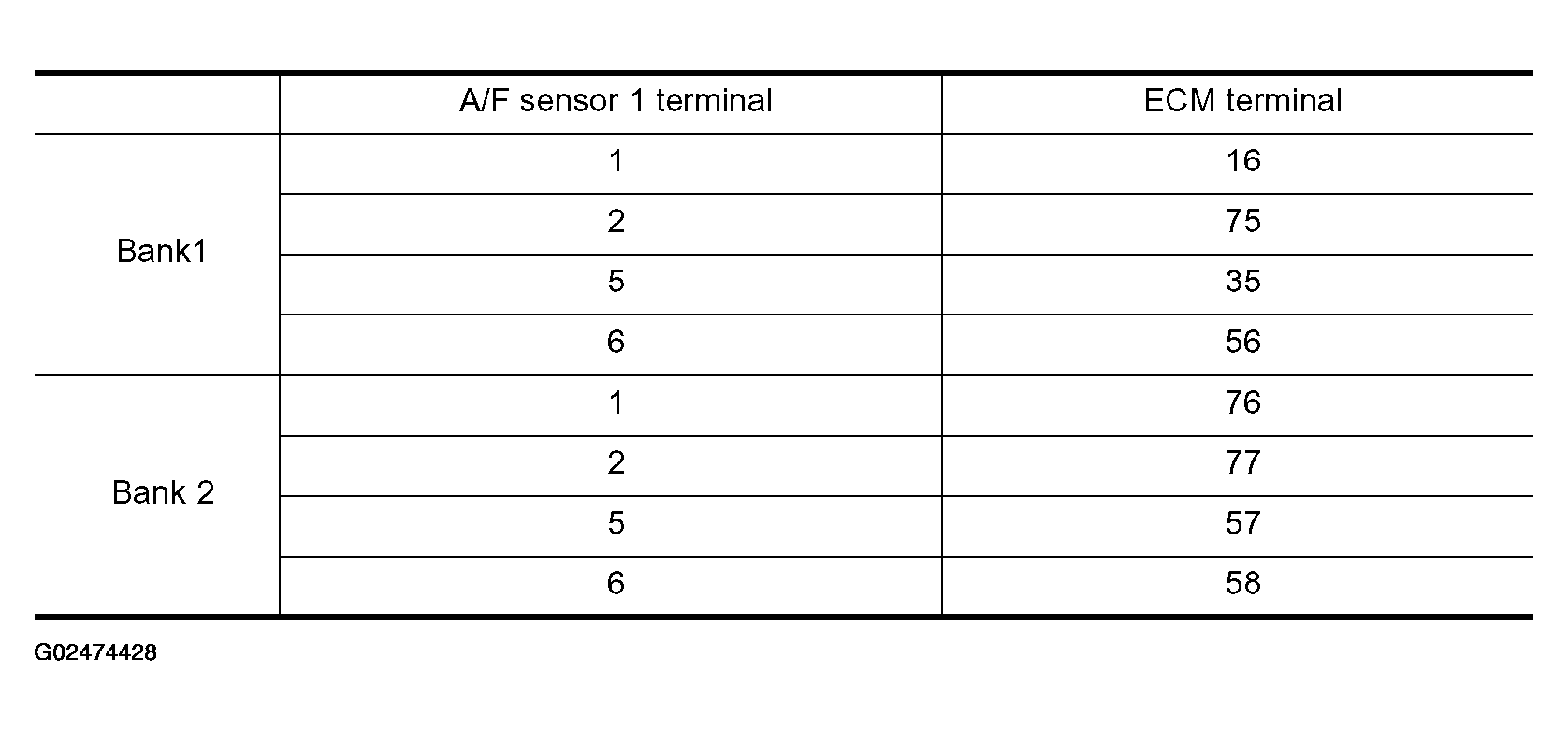

      Fig 7: Terminals Sensor Reference Chart
      G02474428Courtesy of NISSAN MOTOR CO., U.S.A.
      • Continuity should exist.
    4. Check harness continuity between the following terminals and ground.

      Refer to WIRING DIAGRAM .

      Fig 8: Terminals Sensor Reference Chart
      G02474429Courtesy of NISSAN MOTOR CO., U.S.A.
      • Continuity should not exist.
    5. Also check harness for short to power.

    OK or NG

    • OK: GO TO 8.
    • NG: Repair open circuit or short to ground or short to power in harness or connectors.
  8. CHECK A/F SENSOR 1 HEATER

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    • OK: GO TO 9.
    • NG: Replace A/F sensor 1.
  9. CHECK INTERMITTENT INCIDENT

    Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    OK or NG

    • OK: Replace A/F sensor 1.
    • NG: Repair or replace.
