ASCD Steering Switch

  1. Disconnect combination switch (spiral cable).
  2. Check continuity between combination switch (spiral cable) terminals 14 and 15 with pushing each switch.

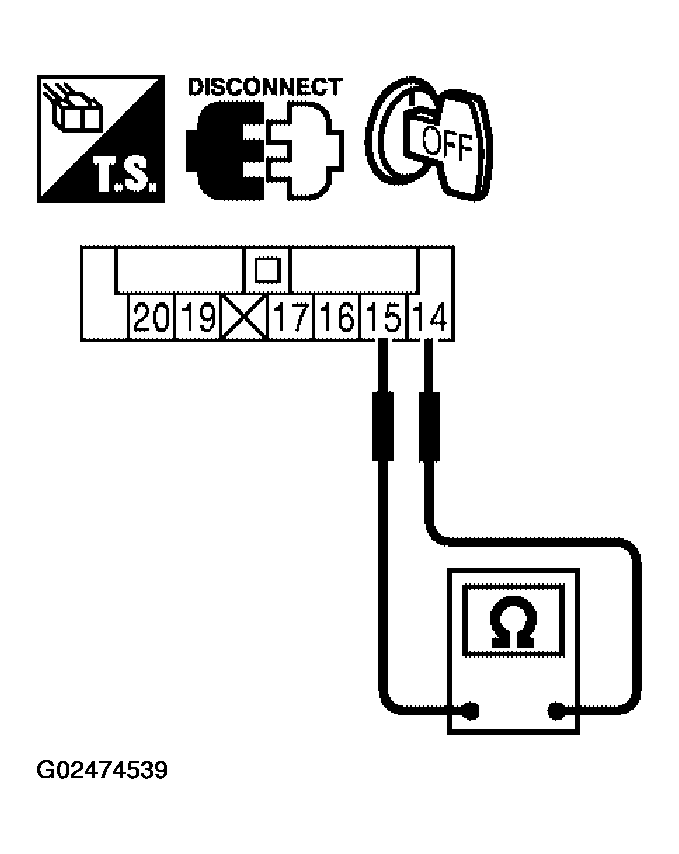

    Fig 1: Checking Continuity Between Combination Switch Terminals 14 & 15
    G02474539Courtesy of NISSAN MOTOR CO., U.S.A.

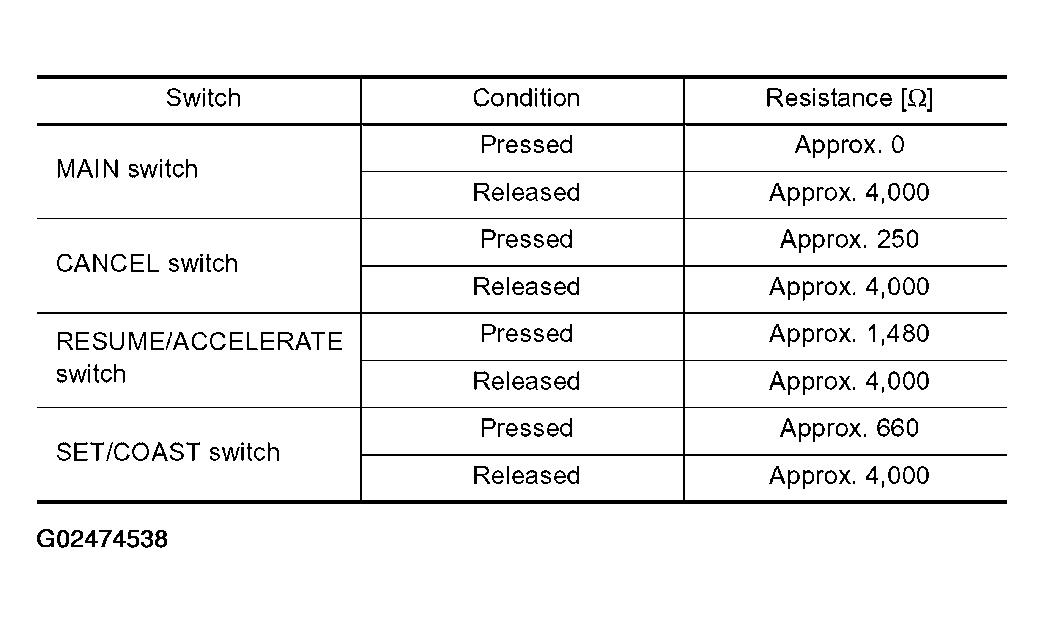

    Fig 2: Switch Condition Reference Chart
    G02474538Courtesy of NISSAN MOTOR CO., U.S.A.
