Stop Lamp Switch

Disconnect stop lamp switch harness connector.

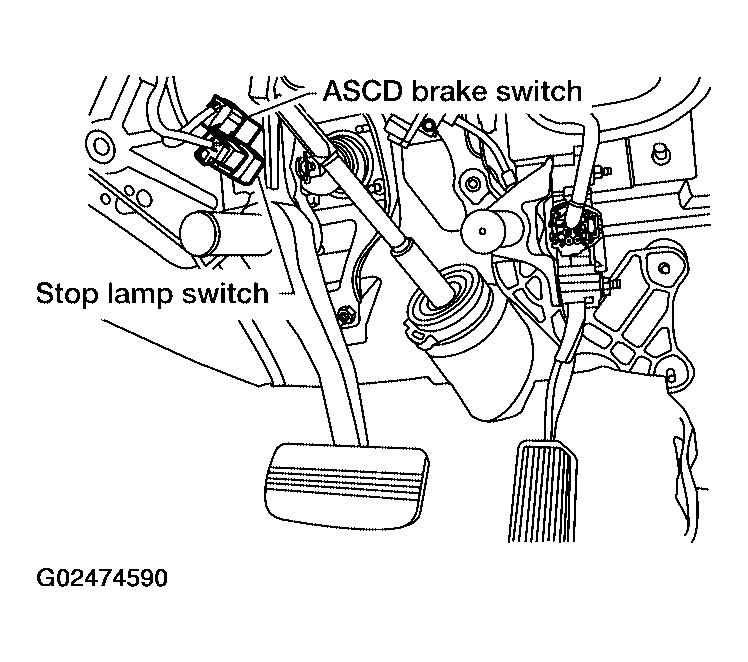

Fig 1: Disconnecting Stop Lamp Switch Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

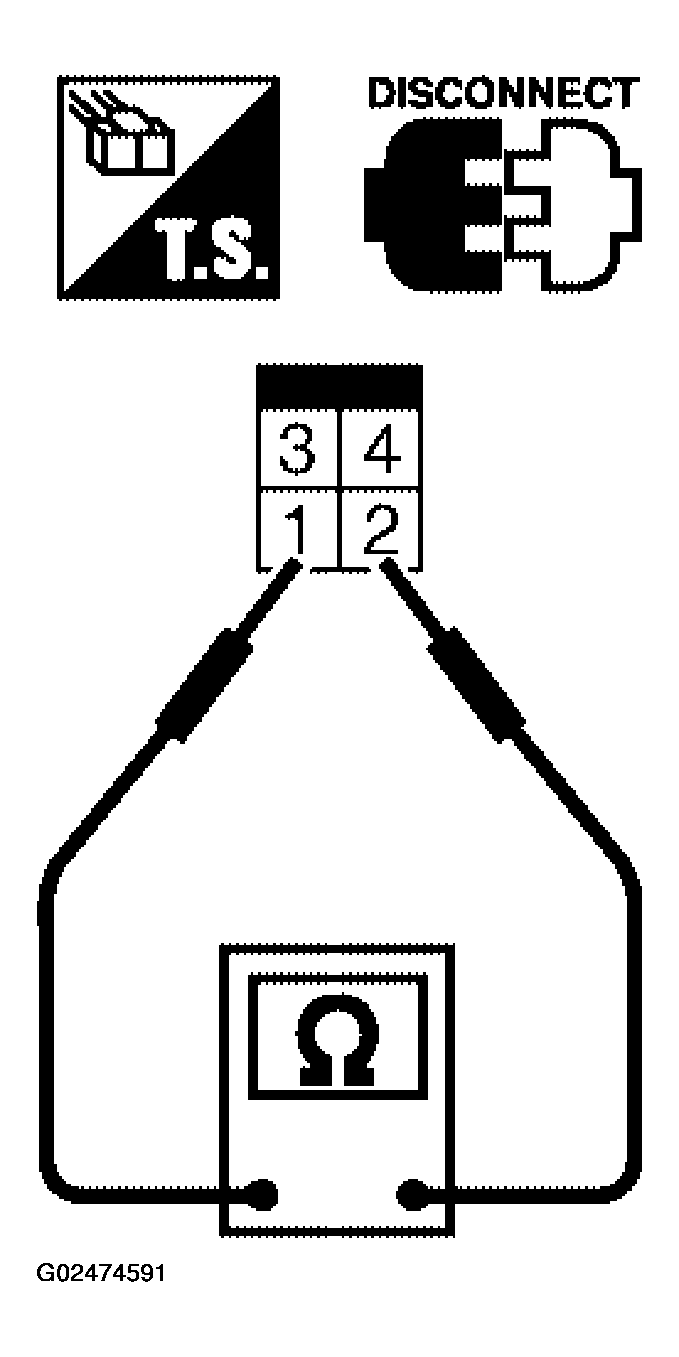

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.

CONTINUITY CONDITION TABLE

Conditions	Continuity
Brake pedal fully released	Should not exist.
Brake pedal slightly depressed	Should exist.

If NG, adjust stop lamp installation, refer to "BRAKE PEDAL " and perform step 2 again.
