Without CONSULT-II

Check air passage continuity and operation delay time under the following conditions.

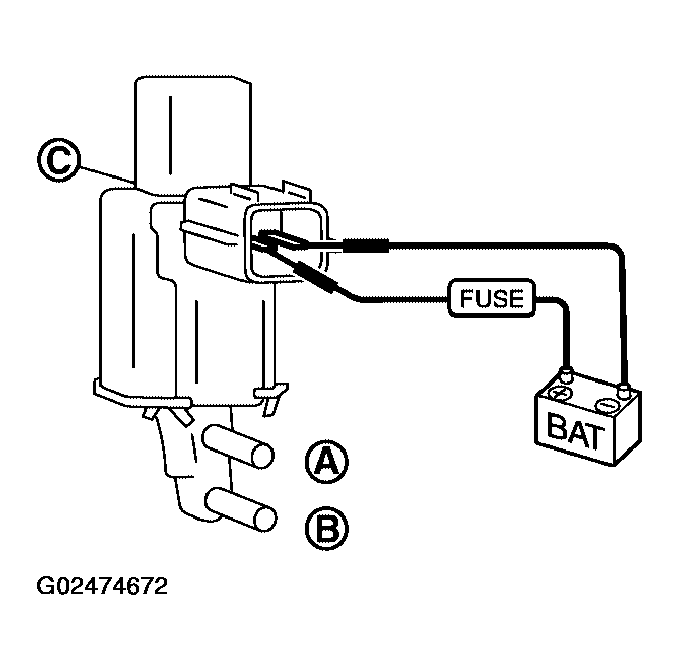

Fig 1: Checking Air Passage Continuity Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

AIR PASSAGE CONTINUITY TABLE

Condition	Air passage continuity between A and B	Air passage continuity between A and C
12V direct current supply between terminals 1 and 2	Yes	No
No supply	No	Yes
