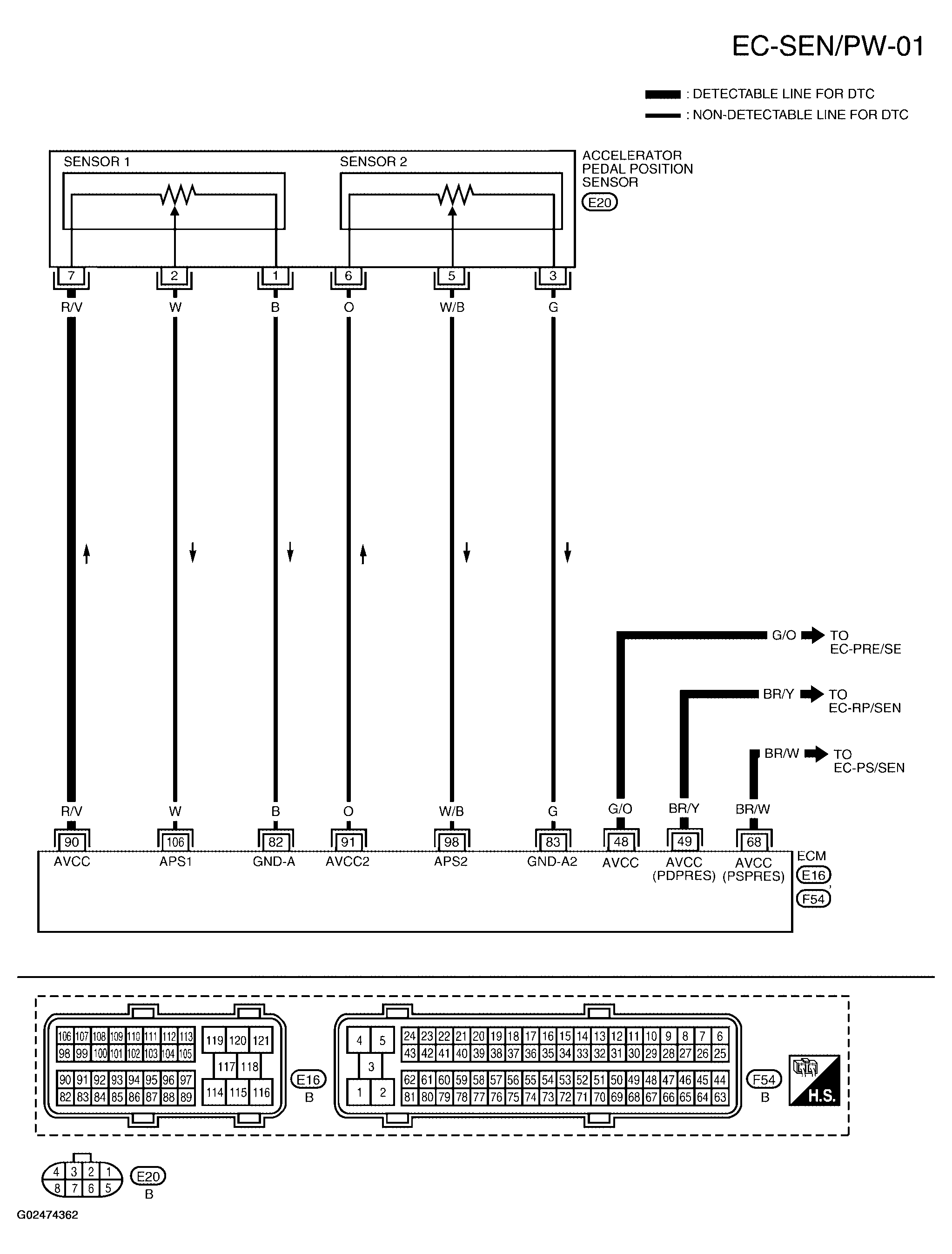

DTC P1229: Sensor Power Supply: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMINALS AND REFERENCE VALUE TABLE
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 48 | G/O | EVAP control system pressure sensor power supply | [Ignition switch: ON] | Approximately 5V |
| 49 | BR/Y | Refrigerant pressure sensor power supply | [Ignition switch: ON] | Approximately 5V |
| 68 | BR/W | PSP sensor power supply | [Ignition switch: ON] | Approximately 5V |
| 90 | R/V | APP sensor 1 power supply | [Ignition switch: ON] | Approximately 5V |
