ASCD Clutch Switch (For M/T Models)

Check continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.

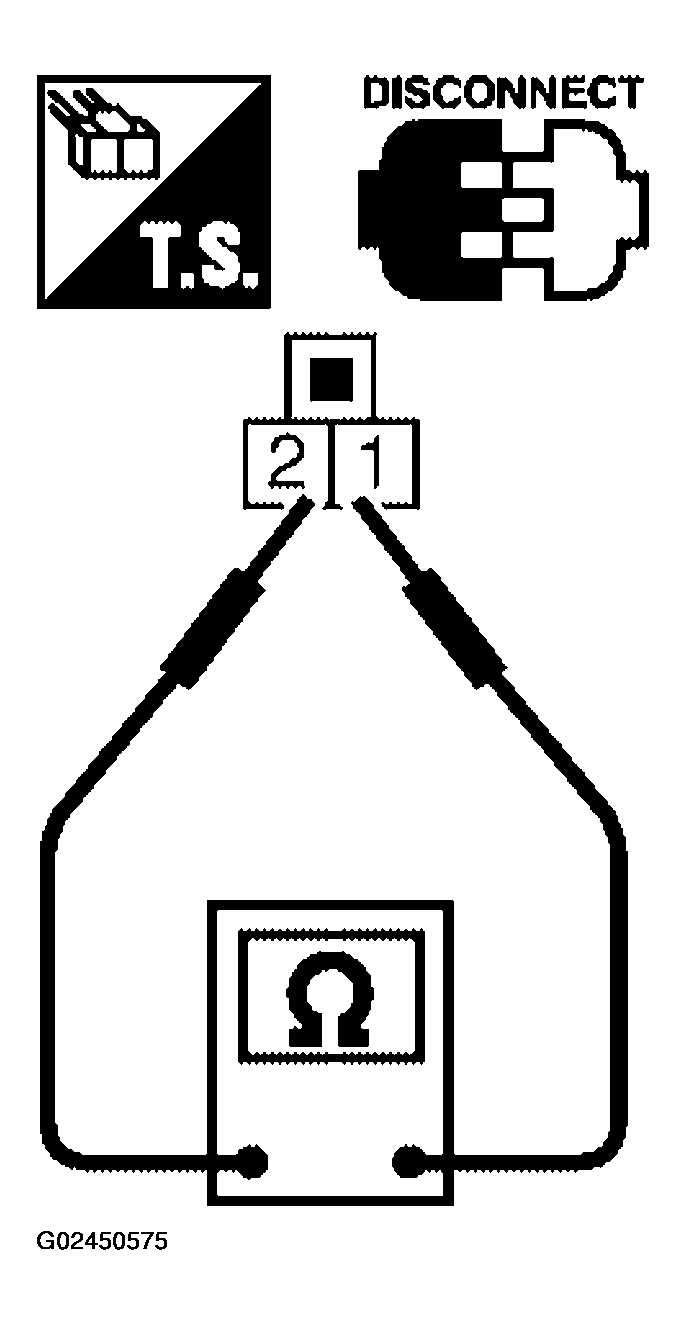

Fig 1: Checking Continuity Between ASCD Clutch Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

ASCD CLUTCH SWITCH TERMINALS 1 AND 2 TERMINAL CONTINUITY CONDITIONS

Condition	Continuity
When clutch pedal is fully released.	Should exist.
When clutch pedal is depressed.	Should not exist.

If NG, adjust ASCD clutch switch installation, refer to "CLUTCH SYSTEM ", and perform step 3 again.
