Method B

  1. Remove ignition coil No. 1.

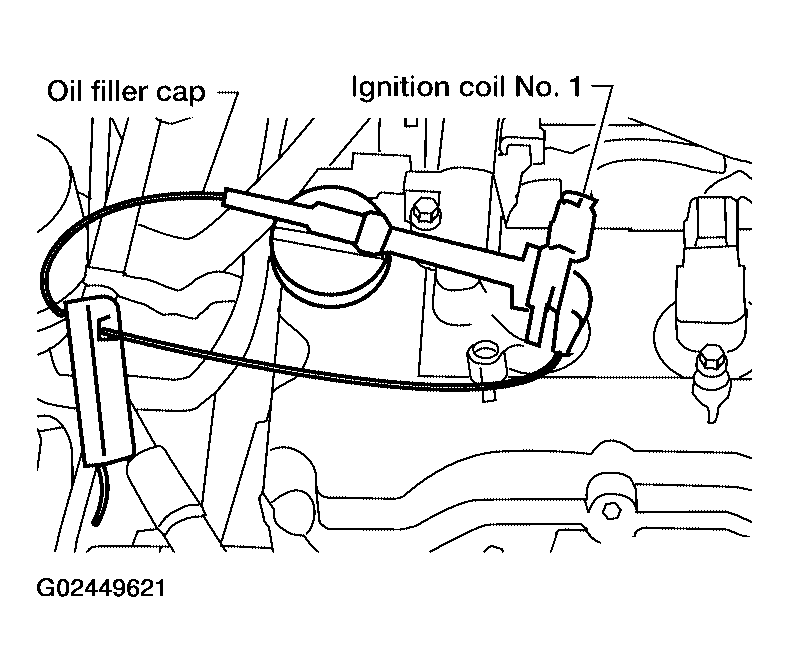

    Fig 1: Removing Ignition Coil No. 1
    G02449621Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Connect ignition coil No. 1 and spark plug No. 1 with suitable high-tension wire as shown, and attach timing light clamp to this wire.

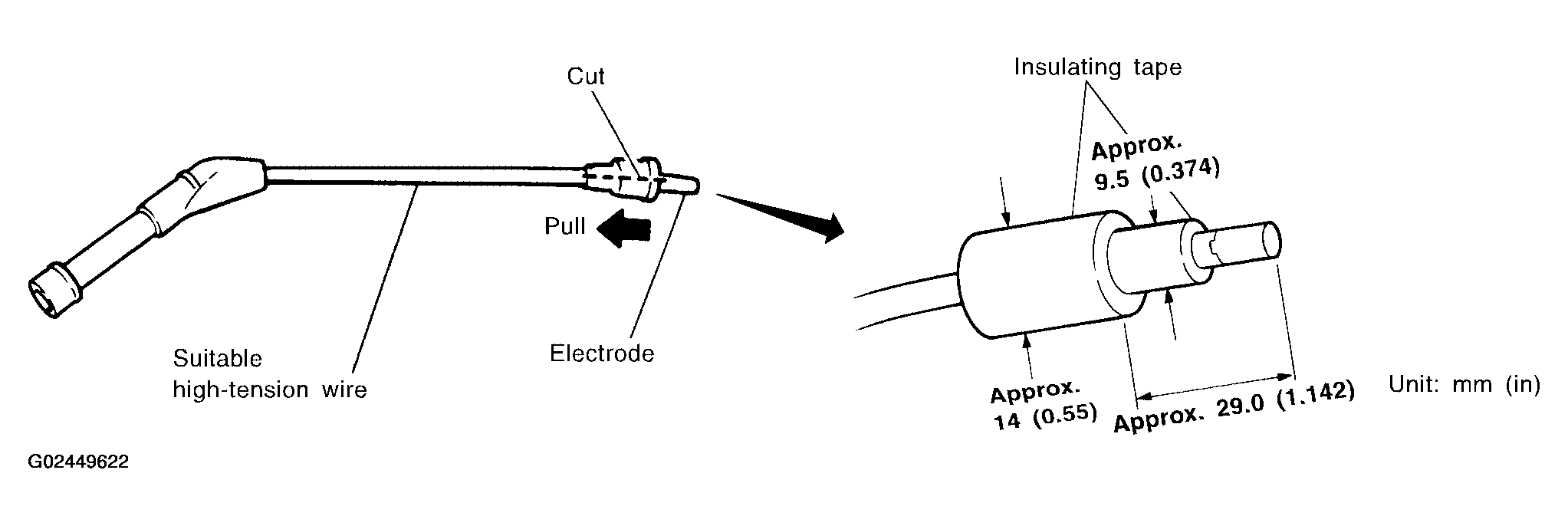

    Fig 2: Spark Plug High-Tension Wire
    G02449622Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

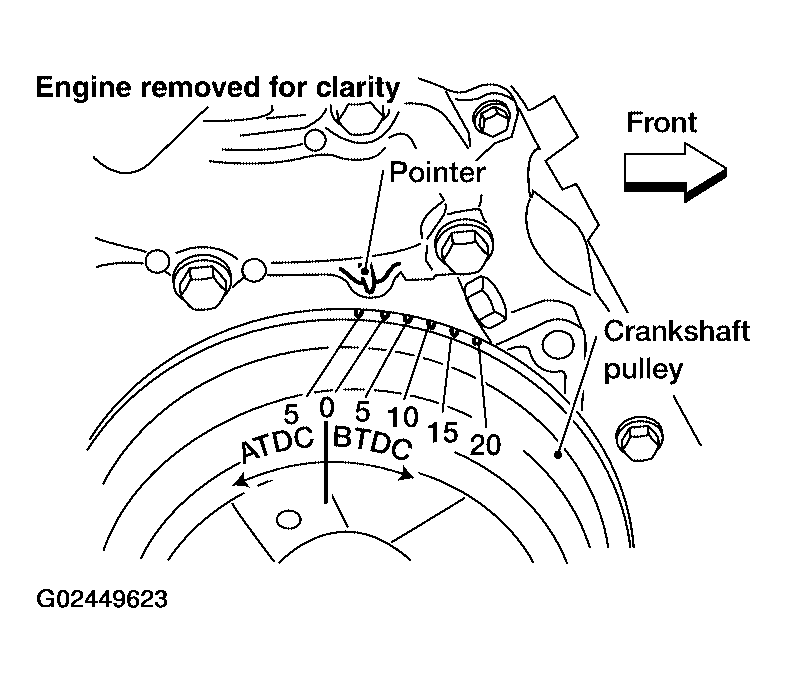

    Fig 3: Identifying Ignition Timing Marks On Crankshaft Pulley
    G02449623Courtesy of NISSAN MOTOR CO., U.S.A.
