Operation Procedure

With CONSULT-II

1. Check the VIN of the vehicle and note it. Refer to "IDENTIFICATION INFORMATION ".
2. Turn ignition switch ON and engine stopped.
3. Select "VIN REGISTRATION" in "WORK SUPPORT" mode.

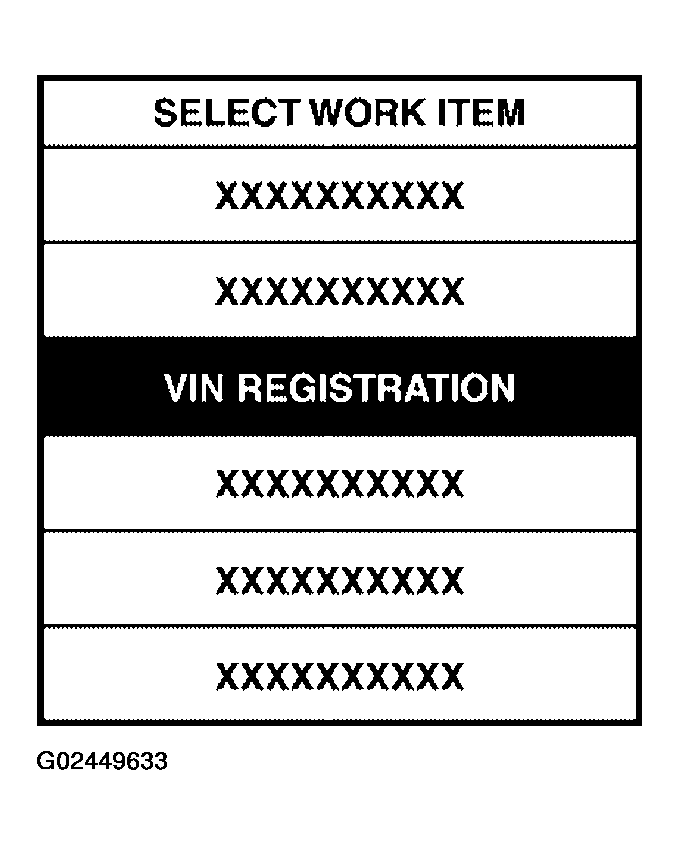

   Fig 1: CONSULT-II Display - SELECT WORK ITEM, VIN REGISTRATION

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Follow the instruction of CONSULT-II display.
