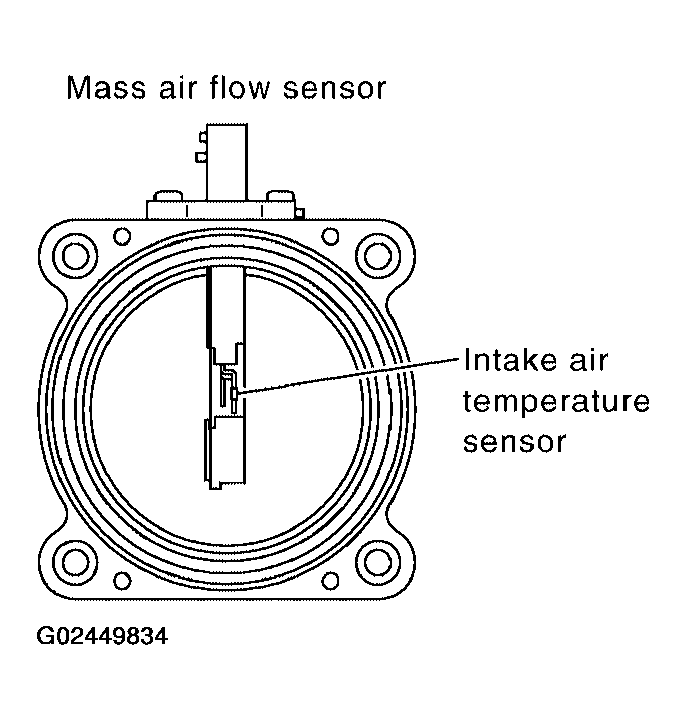

Check resistance between intake air temperature sensor terminals 5 and 6 under the following conditions.
Courtesy of NISSAN MOTOR CO., U.S.A.

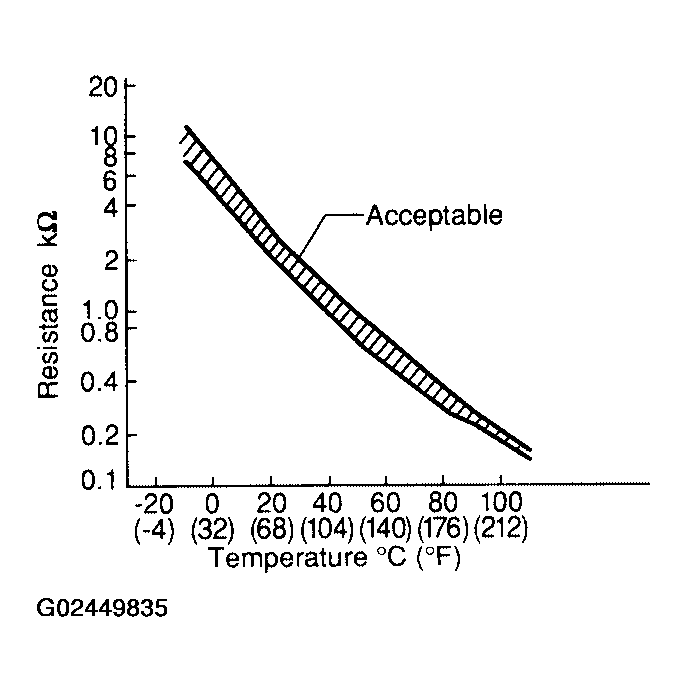

Courtesy of NISSAN MOTOR CO., U.S.A. IAT SENSOR RESISTANCE/TEMPERATURE SPECIFICATIONS
| Intake air temperature °C (°F) |
Resistance kΩ |
| 25(77) |
1.9 - 2.1 |
