Diagnostic Trouble Codes Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

WITH CONSULT-II

Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.

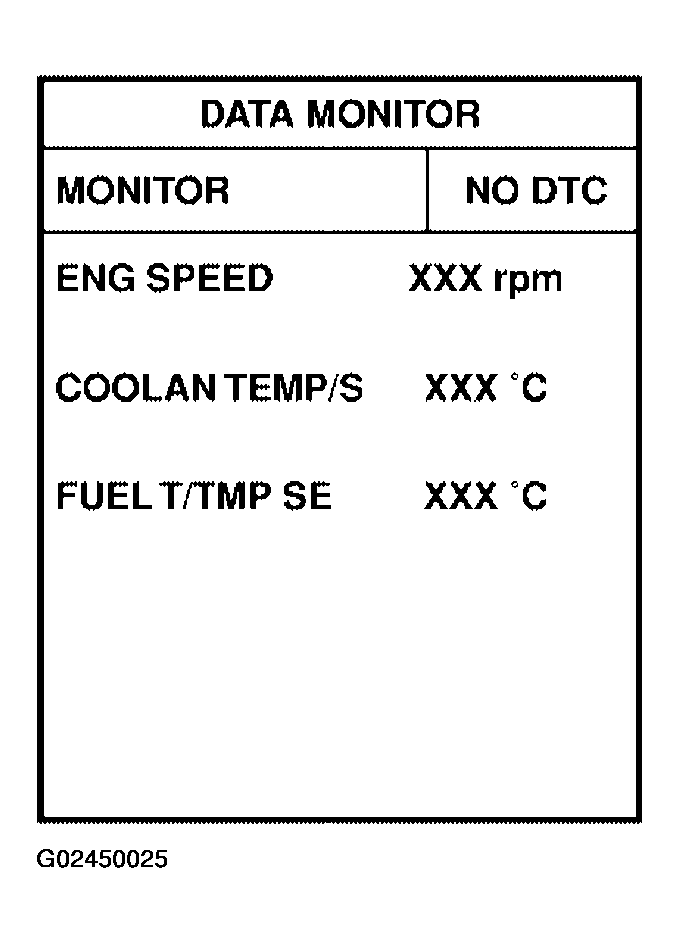

Fig 1: CONSULT-II Display - DATA MONITOR
Courtesy of NISSAN MOTOR CO., U.S.A.
Start engine and wait at least 40 seconds.
NOTE: Do not depress accelerator pedal even slightly.

If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

WITH GST

Follow the procedure "WITH CONSULT-II" above.
