EVAP Control Pressure Sensor

Remove EVAP control system pressure sensor with its harness connector connected from EVAP canister.
Do not reuse the O-ring, replace it with a new one.
Install a vacuum pump to EVAP control system pressure sensor.

Turn ignition switch ON and check output voltage between ECM terminal 32 and ground under the following conditions.

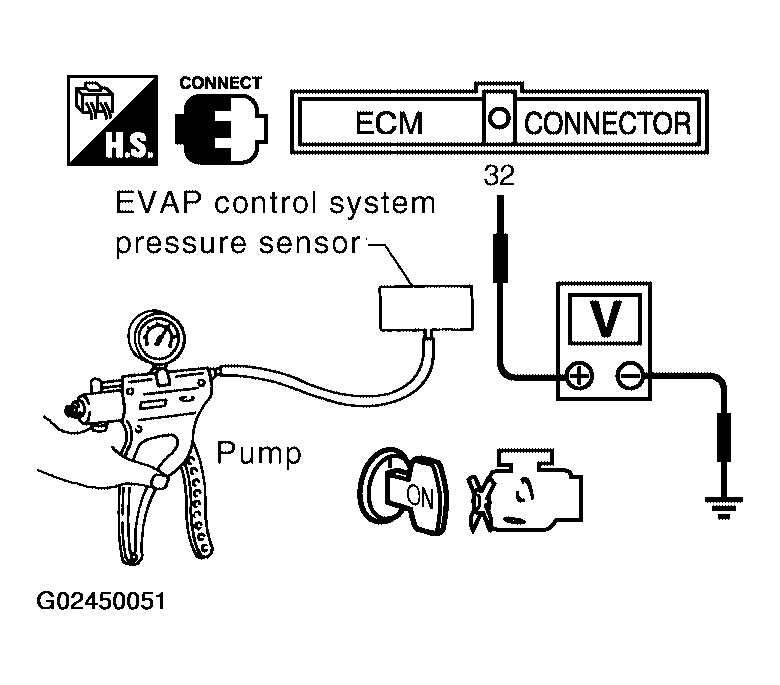

Fig 1: Checking Output Voltage Between ECM Connector Terminal 32 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

EVAP CONTROL SYSTEM PRESSURE SENSOR - VACUUM VERSUS VOLTAGE

Applied vacuum kPa (mmHg, inHg)	Voltage V
Not applied	1.8 - 4.8
-26.7 (-200, -7.87)	2.1 to 2.5V lower than above value

CAUTION:

Always calibrate the vacuum pump gauge when using it.
Do not apply below -93.3 kPa (-700 mmHg, -27.56 inHg) or pressure over 101.3 kPa (760 mmHg, 29.92 inHg).
