ASCD Brake Switch

Check harness continuity between ASCD brake switch terminals 1 and 2 under the following conditions.

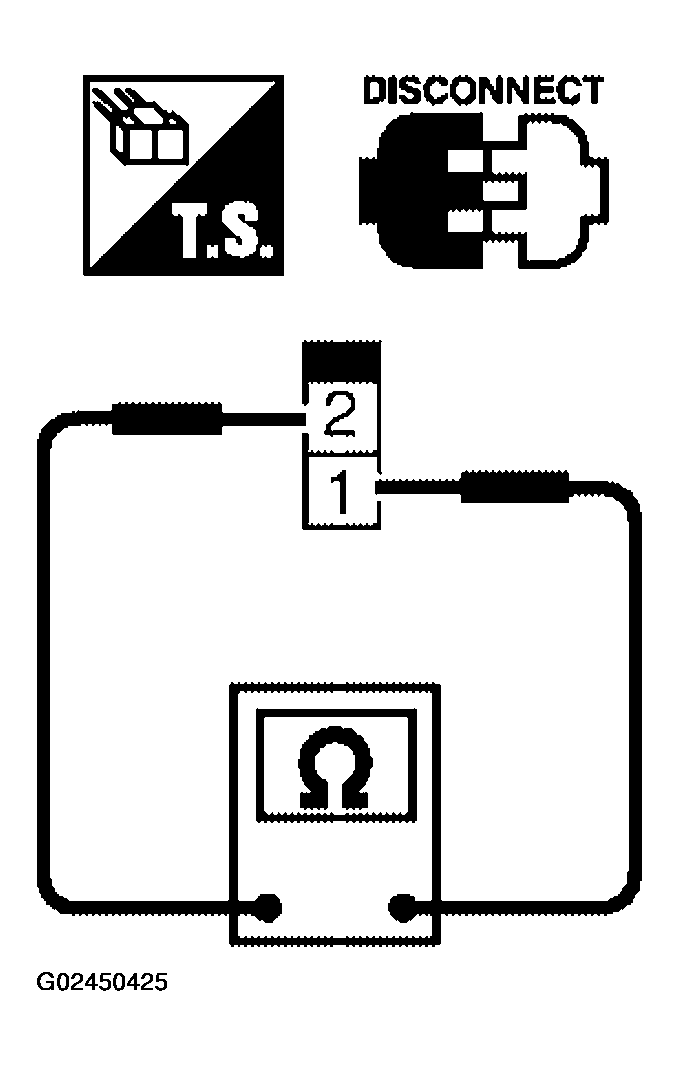

Fig 1: Checking Harness Continuity Between ASCD Brake Switch Connector Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

ASCD BRAKE SWITCH CONNECTOR TERMINALS 1 AND 2 CONTINUITY SPECIFICATION

Condition	Continuity
When brake pedal is fully released.	Should exist.
When brake pedal is depressed.	Should not exist.

If NG, adjust ASCD brake switch installation, refer to "BRAKE PEDAL AND BRACKET ", and perform step 3 again.
