ASCD Clutch Switch (For M/T Models)

Check harness continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.

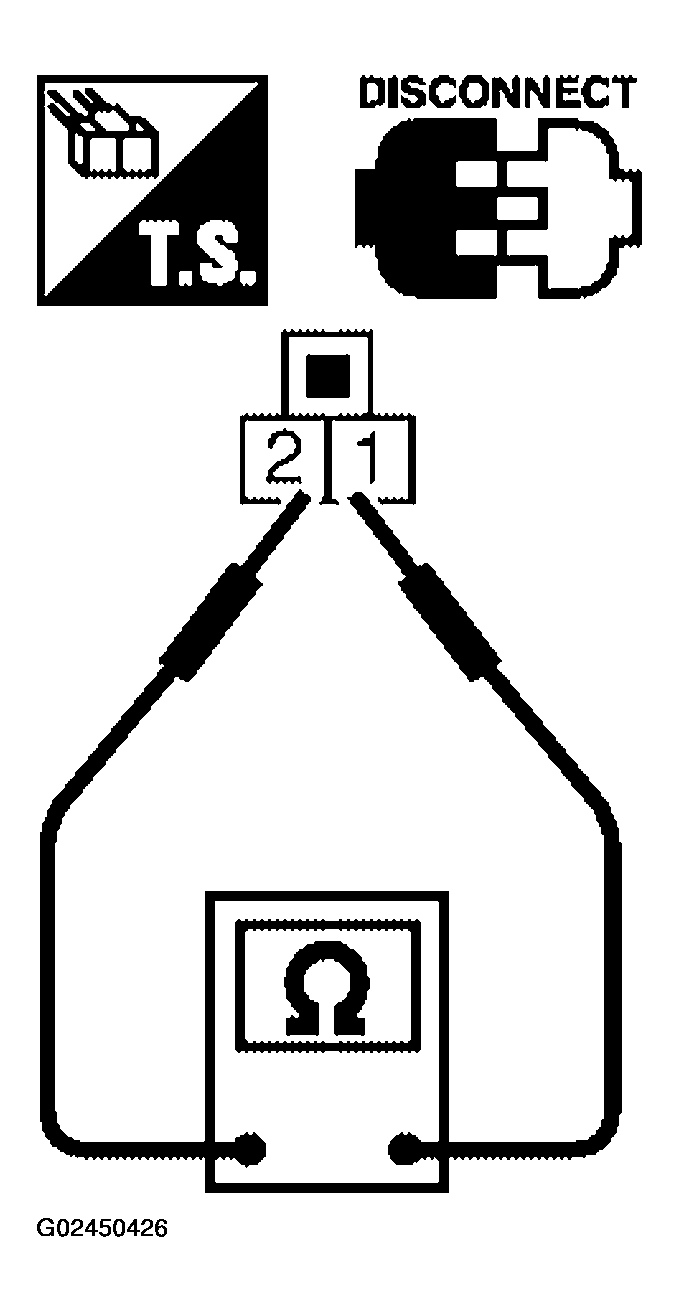

Fig 1: Checking Harness Continuity Between ASCD Clutch Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

ASCD BRAKE CLUTCH CONNECTOR TERMINALS 1 AND 2 CONTINUITY SPECIFICATION

Condition	Continuity
When clutch pedal is fully released.	Should exist.
When clutch pedal is depressed.	Should not exist.

If NG, adjust ASCD clutch switch installation, refer to CLUTCH SYSTEM , and perform step 3 again.
