Overall Function Check

Use this procedure to check the overall function of the park/neutral position switch circuit. During this check, a 1st trip DTC might not be confirmed.

WITHOUT CONSULT-II

1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 (PNP switch signal) and ground under the following conditions.

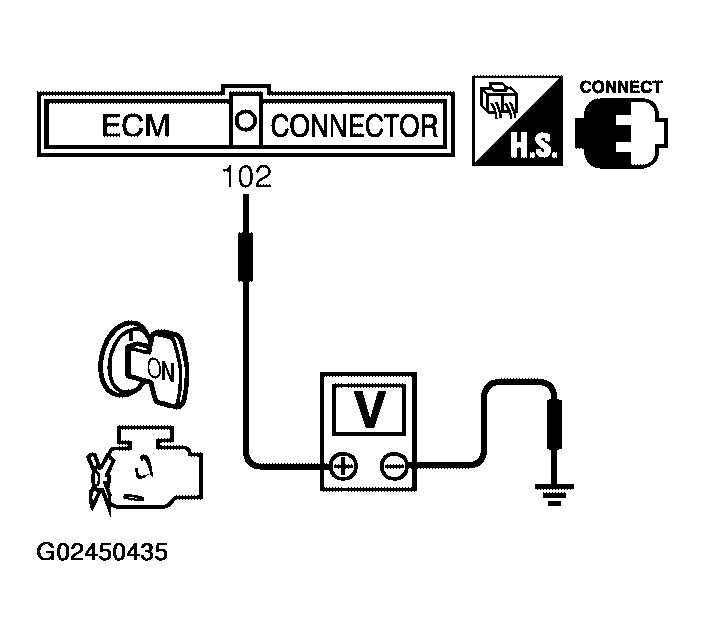

   Fig 1: Checking Voltage Between ECM Connector Terminal 102 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
   DTC P1706 CONFIRMATION PROCEDURE CONDITIONS (WITHOUT CONSULT-II)



   Condition (Gear position)	Voltage (V) (Known-good data)
   P or N position (A/T models) Neutral position (M/T models)	Approx. 0
   Except the above position	A/T models: Battery voltage M/T models: Approximately 5V

3. If NG, go to DIAGNOSTIC PROCEDURE .
