Diagnostic Procedure

  1. CHECK ENGINE START

    Turn ignition switch OFF, and restart engine.

    Is engine running?

    Yes or No

    • Yes (With CONSULT-II) : GO TO 2.
    • Yes (Without CONSULT-II) : GO TO  3.
    • No : GO TO  4.
  2. CHECK OVERALL FUNCTION

    With CONSULT-II

    1. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT-II.

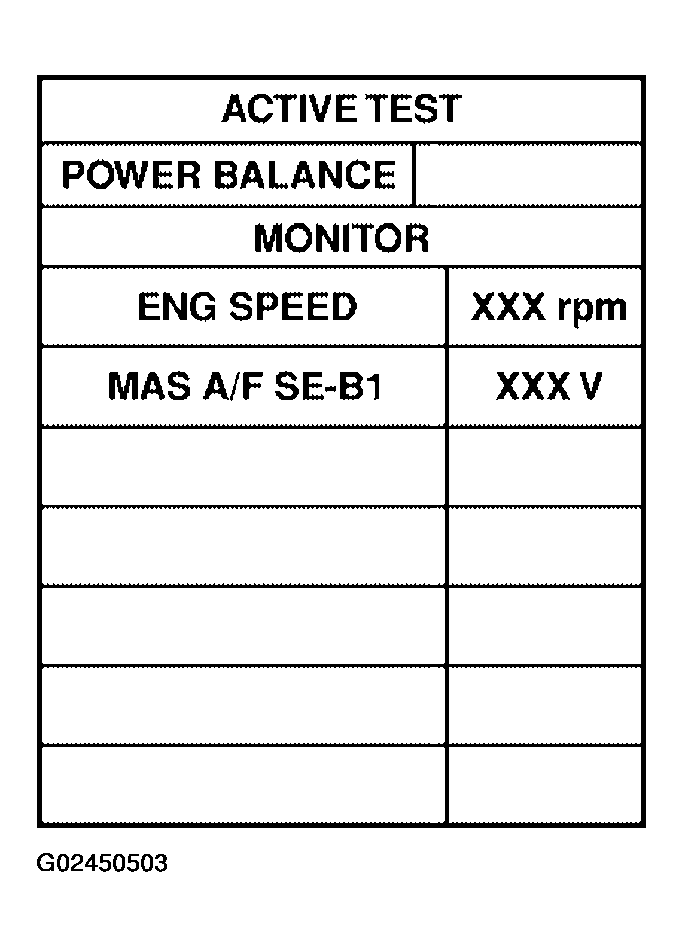

      Fig 1: CONSULT-II Display - ACTIVE TEST, POWER BALANCE
      G02450503Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Make sure that each circuit produces a momentary engine speed drop.

    OK or NG

    • OK : INSPECTION END
    • NG : GO TO  10.
  3. CHECK OVERALL FUNCTION

    Without CONSULT-II

    1. Let engine idle.
    2. Read the voltage signal between ECM terminals 61, 62, 80, 81 and ground with an oscilloscope.
    3. Verify that the oscilloscope screen shows the signal wave as shown Fig 2.
      NOTE: The pulse cycle changes depending on rpm at idle.

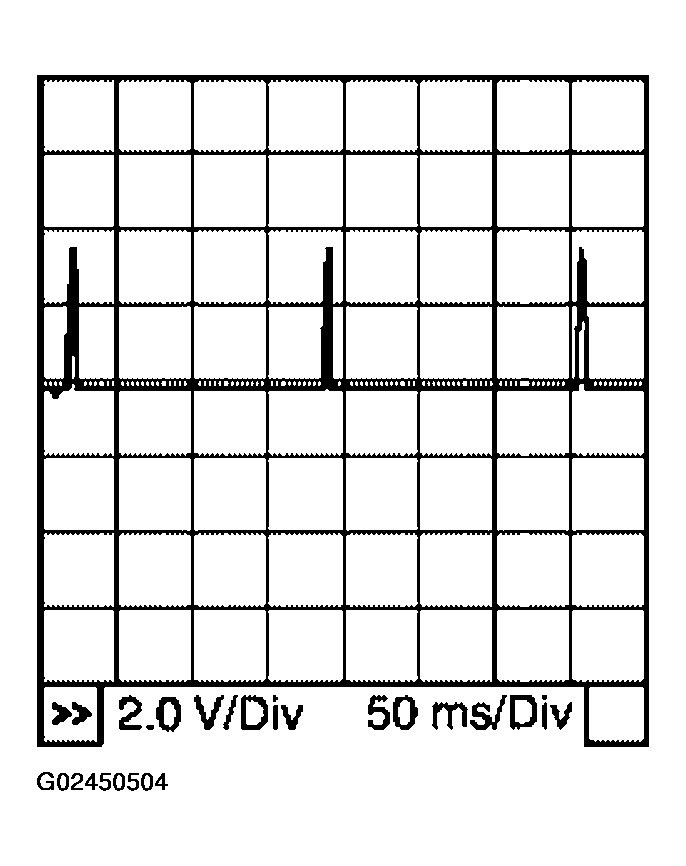

    Fig 2: Ignition Signal Wave Display On Oscilloscope Screen
    G02450504Courtesy of NISSAN MOTOR CO., U.S.A.

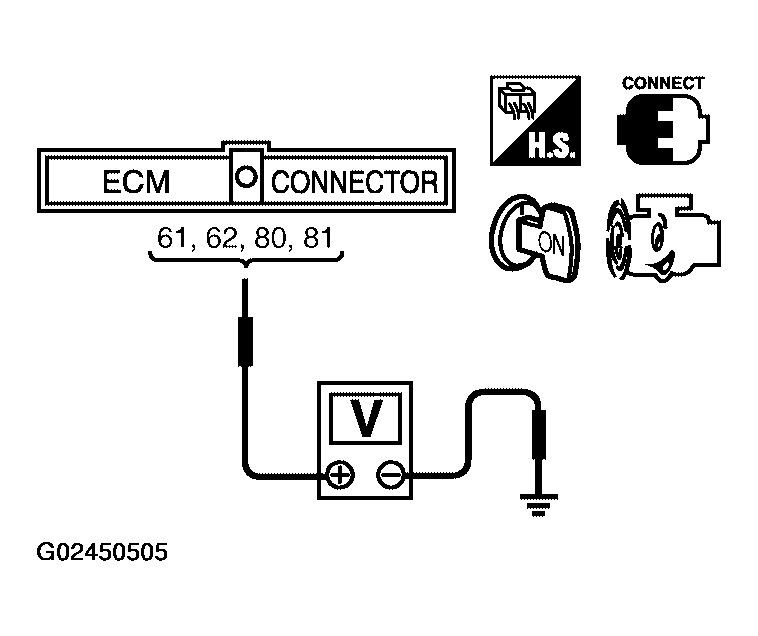

    Fig 3: Checking Voltage Signal Between ECM Connector Terminals 61, 62, 80, 81 And Ground
    G02450505Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : INSPECTION END
    • NG : GO TO  10.
  4. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-I
    1. Turn ignition switch ON.
    2. Check voltage between ECM terminals 119, 120 and ground with CONSULT-II or tester.
      • Voltage: Battery voltage

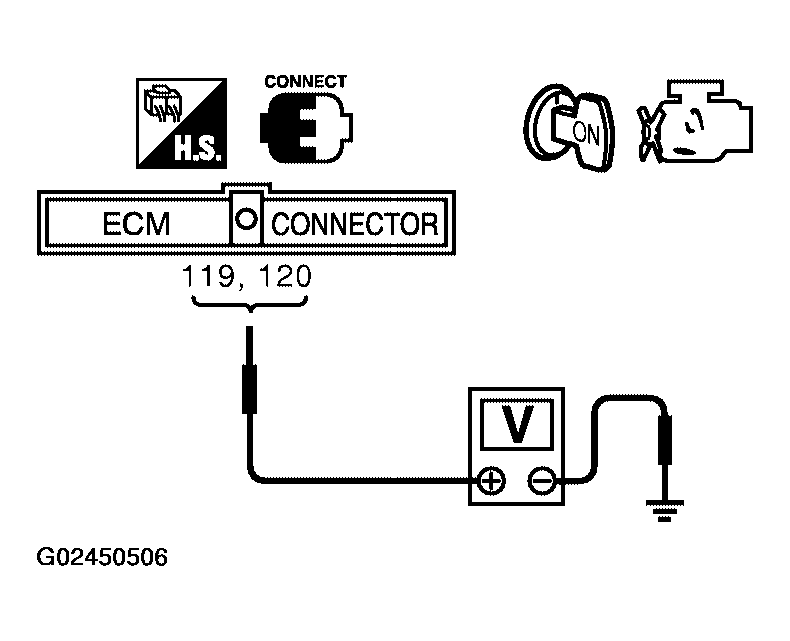

      3. Fig 4: Checking Voltage Between ECM Connector Terminals 119, 120 And Ground
      G02450506Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

  5. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-II
    1. Turn ignition switch OFF.
    2. Disconnect condenser harness connector.
    3. Turn ignition switch ON.
    4. Check voltage between condenser terminal 1 and ground with CONSULT-II or tester.
      • Voltage: Battery voltage

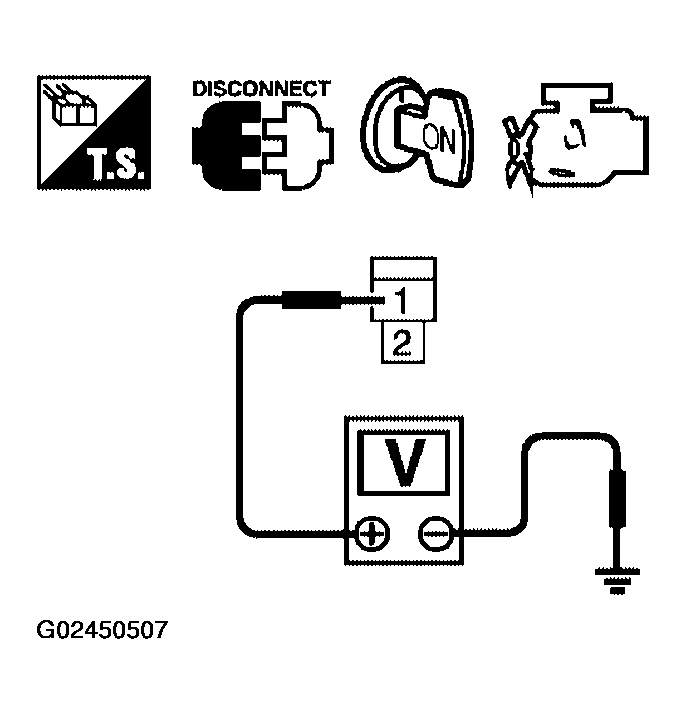

      Fig 5: Checking Voltage Between Condenser Connector Terminal 1 And Ground
      G02450507Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : GO TO  10.
    • NG : GO TO 6.
  6. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-III
    1. Turn ignition switch OFF.
    2. Disconnect ECM relay.

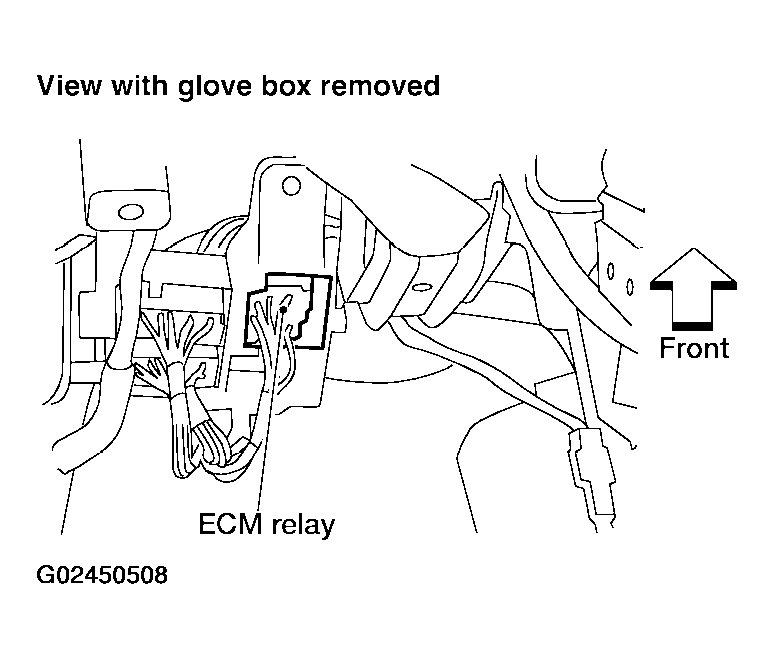

      Fig 6: Locating ECM Relay
      G02450508Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check harness continuity between ECM relay terminal 7 and condenser terminal 1.

      Refer to WIRING DIAGRAM .

      • Continuity should exist.
    4. Also check harness for short to ground and short to power.

    OK or NG

    • OK : GO TO 7.
    • NG : Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-IV

    Check voltage between ECM relay terminal 6 and ground with CONSULT-II or tester.

    • Voltage: Battery voltage

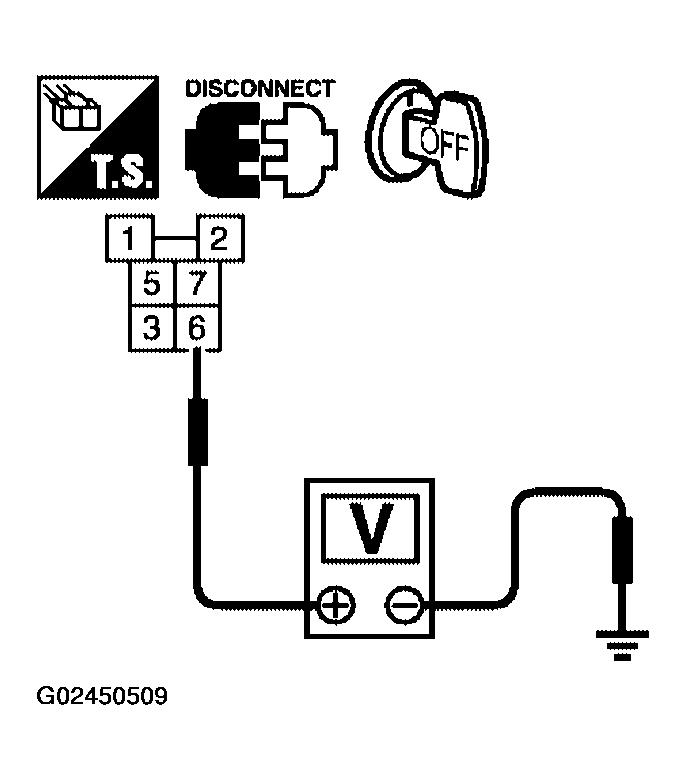

    Fig 7: Checking Voltage Between ECM Relay Connector Terminal 6 And Ground
    G02450509Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : GO TO  9.
    • NG : GO TO 8.
  8. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E10, F48
    • 15A fuse
    • Harness for open or short between ECM relay and battery
      • : Repair or replace harness or connectors.
  9. CHECK ECM RELAY

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    • OK : GO TO  17.
    • NG : Replace ECM relay.
  10. CHECK CONDENSER GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect condenser harness connector.
    3. Check harness continuity between condenser terminal 2 and ground.

      Refer to WIRING DIAGRAM .

      • Continuity should exist.
    4. Also check harness for short to power.

    OK or NG

    • OK : GO TO 11.
    • NG : Repair open circuit or short to power in harness or connector.
  11. CHECK CONDENSER

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    • OK : GO TO 12.
    • NG : Replace condenser.
  12. CHECK IGNITION COIL POWER SUPPLY CIRCUIT-V
    1. Turn ignition switch OFF.
    2. Reconnect all harness connectors disconnected.
    3. Disconnect ignition coil harness connector.

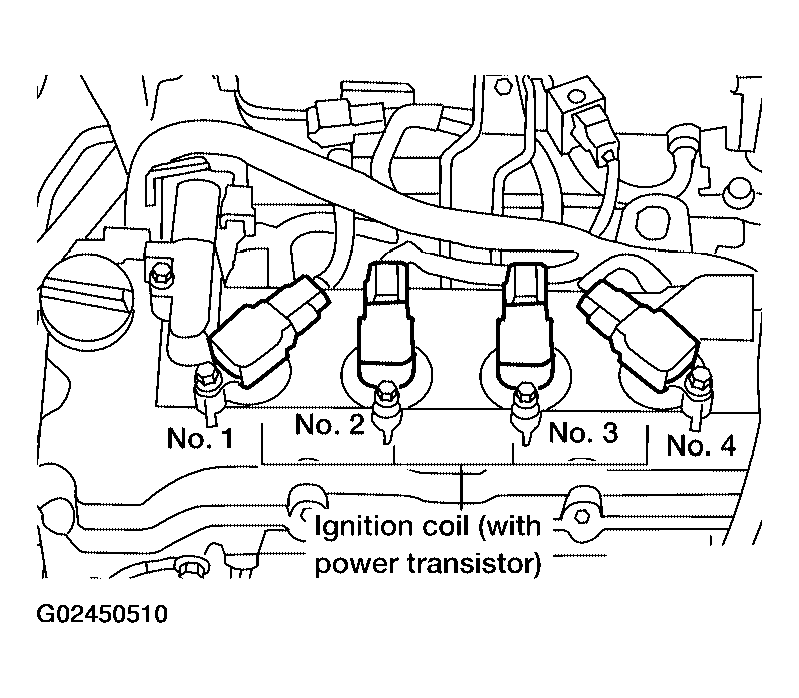

      Fig 8: Identifying Ignition Coils
      G02450510Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Turn ignition switch ON.
    5. Check voltage between ignition coil terminal 3 and ground with CONSULT-II or tester.
      • Voltage: Battery voltage

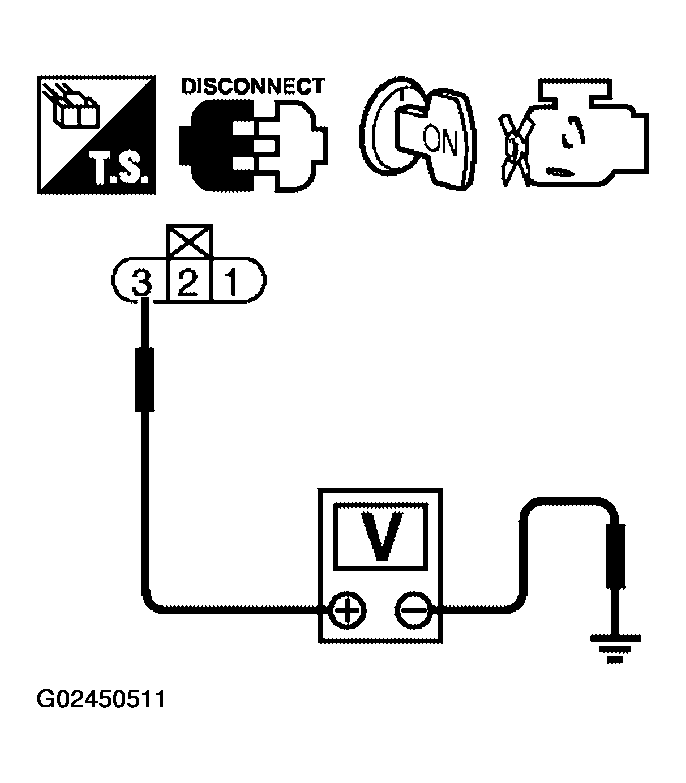

      Fig 9: Checking Voltage Between Ignition Coil Connector Terminal 3 And Ground
      G02450511Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : GO TO  14.
    • NG : GO TO 13.
  13. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness for open or short between ignition coil and ECM relay
      • : Repair open circuit or short to ground or short to power in harness or connectors.
  14. CHECK IGNITION COIL GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Check harness continuity between ignition coil terminal 2 and ground.

      Refer to WIRING DIAGRAM .

      • Continuity should exist.
    3. Also check harness for short to power.

    OK or NG

    • OK : GO TO 15.
    • NG : Repair open circuit or short to power in harness or connectors.
  15. CHECK IGNITION COIL OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminals 61, 62, 80, 81 and ignition coil terminal 1.

      Refer to WIRING DIAGRAM .

      • Continuity should exist.
    3. Also check harness for short to ground and short to power.

    OK or NG

    • OK : GO TO 16.
    • NG : Repair open circuit or short to ground or short to power in harness or connectors.
  16. CHECK IGNITION COIL WITH POWER TRANSISTOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    • OK : GO TO 17.
    • NG : Replace ignition coil with power transistor.
  17. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    • : INSPECTION END
