Component Inspection: Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in Fig 1.
    • Resistance: 12.5 - 18.4Ω [at 20°C (68°F)]

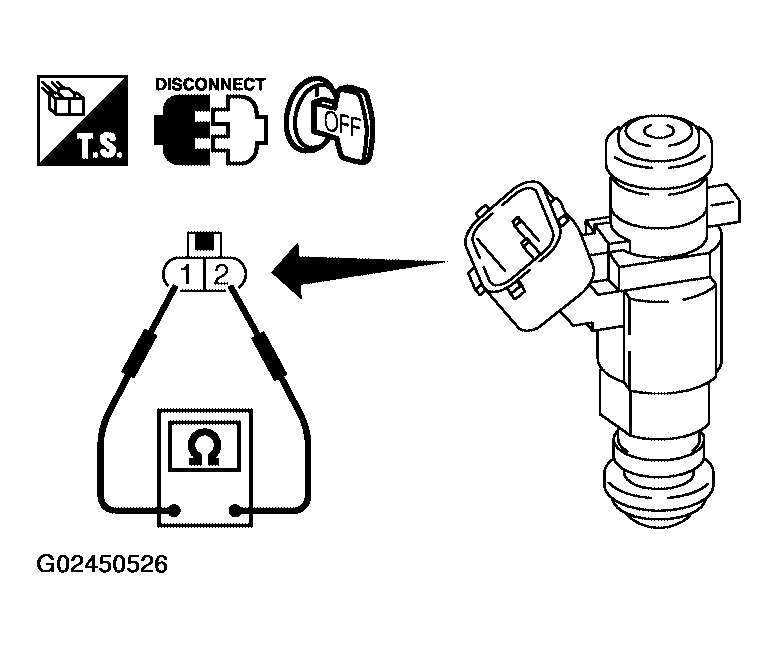

    Fig 1: Checking Resistance Between Fuel Injector Terminals
    G02450526Courtesy of NISSAN MOTOR CO., U.S.A.
