Generic Scan Tool (GST) Function: Function

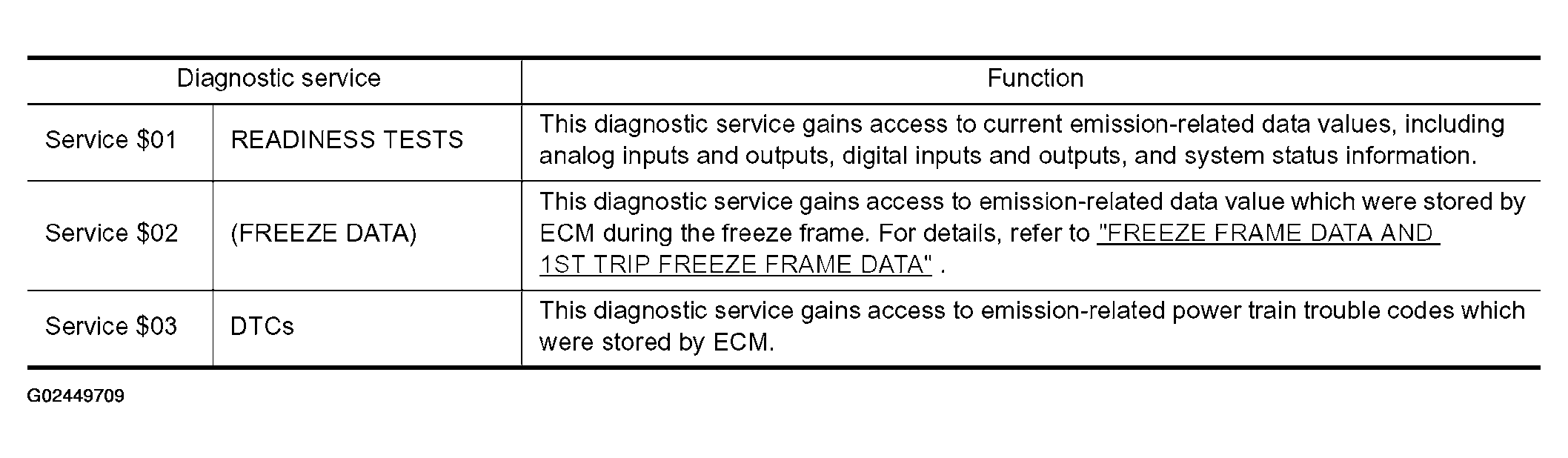

Fig 1: OBD-II Diagnostic Service Function Reference Chart (1 Of 2)
G02449709Courtesy of NISSAN MOTOR CO., U.S.A.

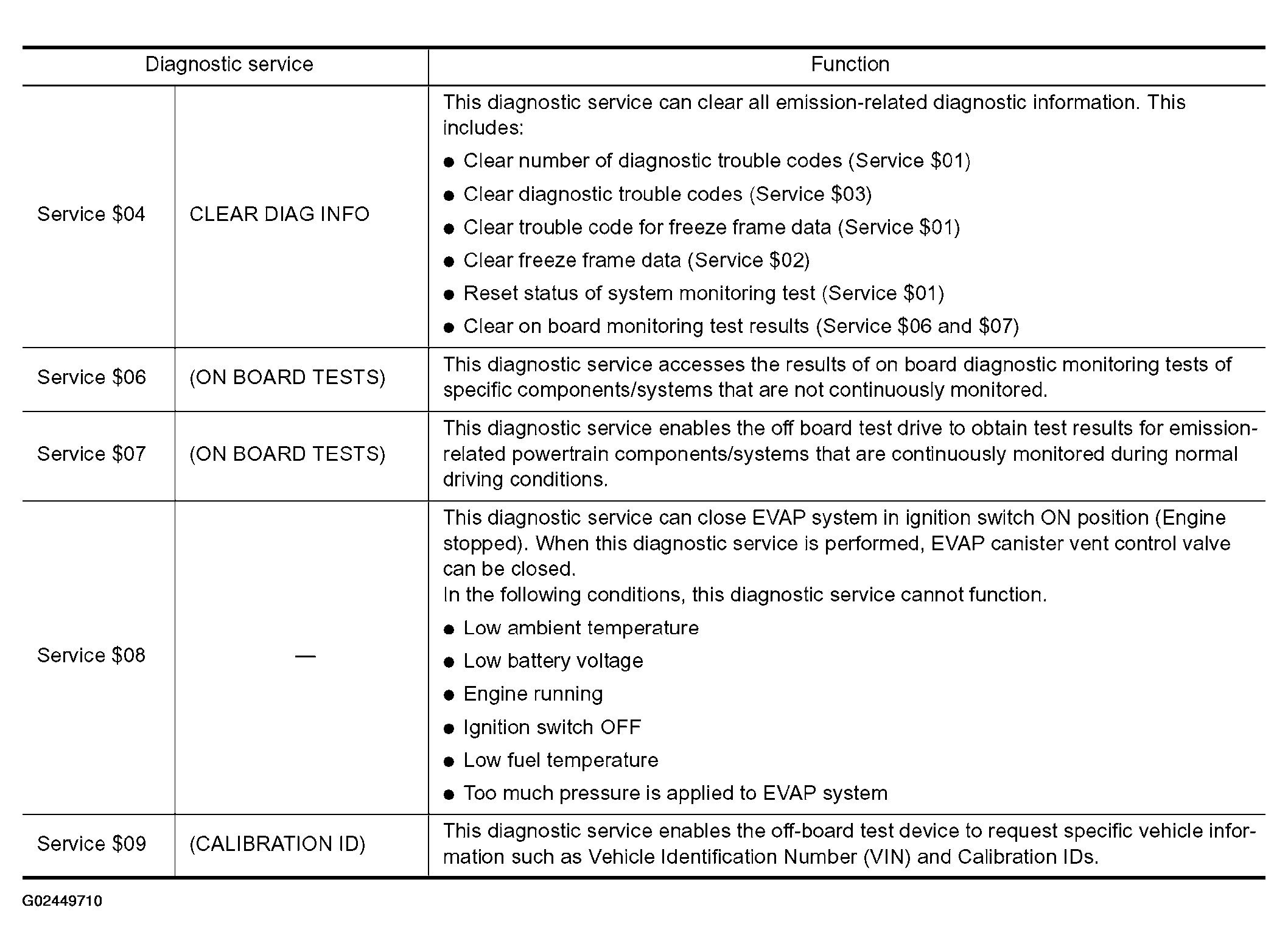

Fig 2: OBD-II Diagnostic Service Function Reference Chart (2 Of 2)
G02449710Courtesy of NISSAN MOTOR CO., U.S.A.
