Inspection Procedure

Turn ignition switch OFF.
Connect GST to data link connector, which is located under LH dash panel near the fuse box cover.

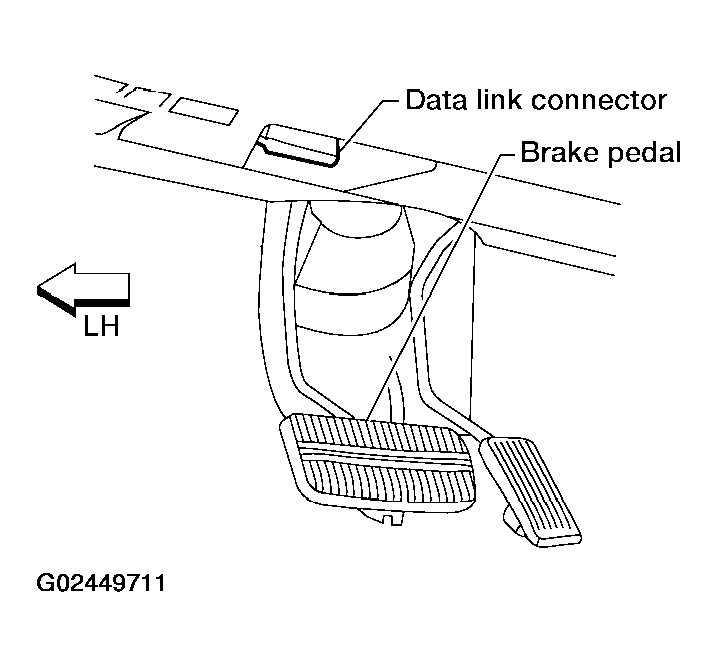

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Enter the program according to instruction on the screen or in the operation manual.
(*: Regarding GST screens, sample screens are shown.)

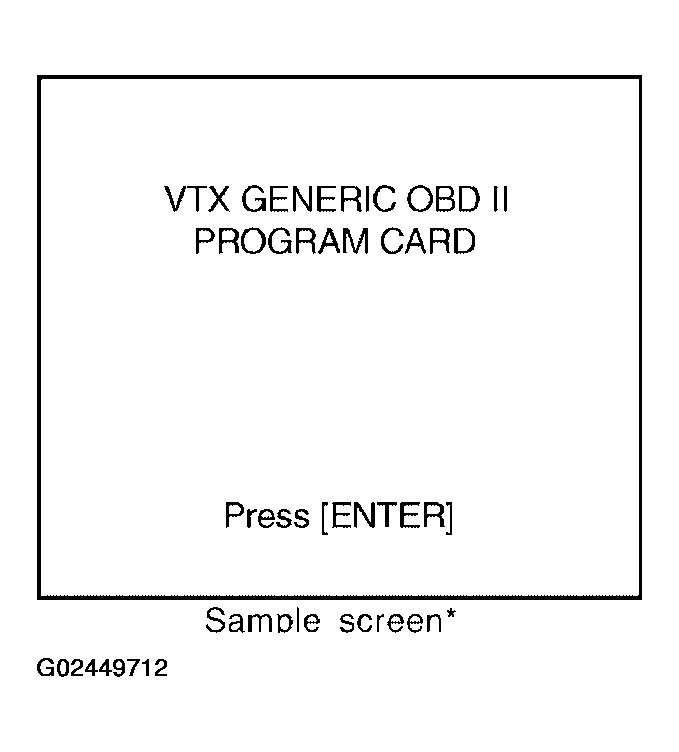

Fig 2: VTX Generic OBD Program Card - Scene Tool Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic service according to each service procedure.
For further information, see the of the tool maker.

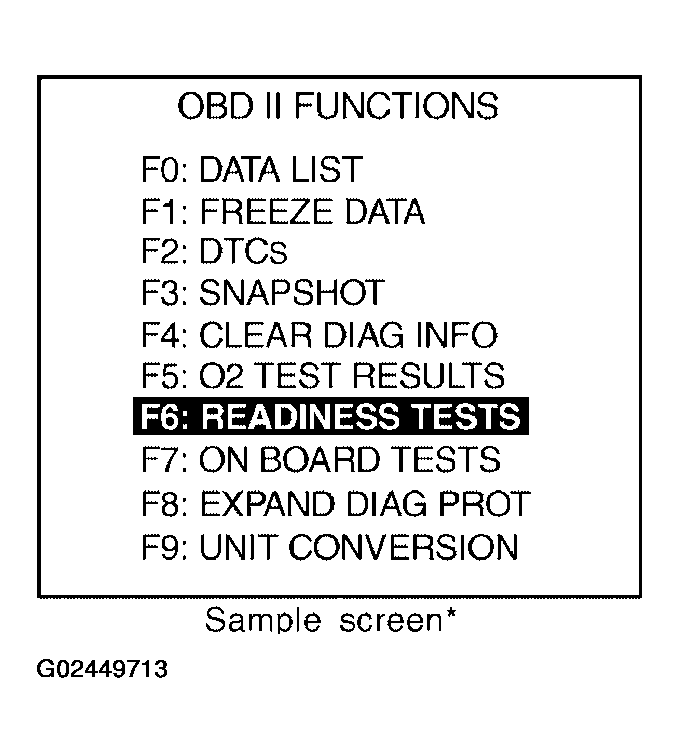

Fig 3: GST Scan Tool Display - OBD FUNCTIONS
Courtesy of NISSAN MOTOR CO., U.S.A.
