Engine Coolant Temperature Sensor

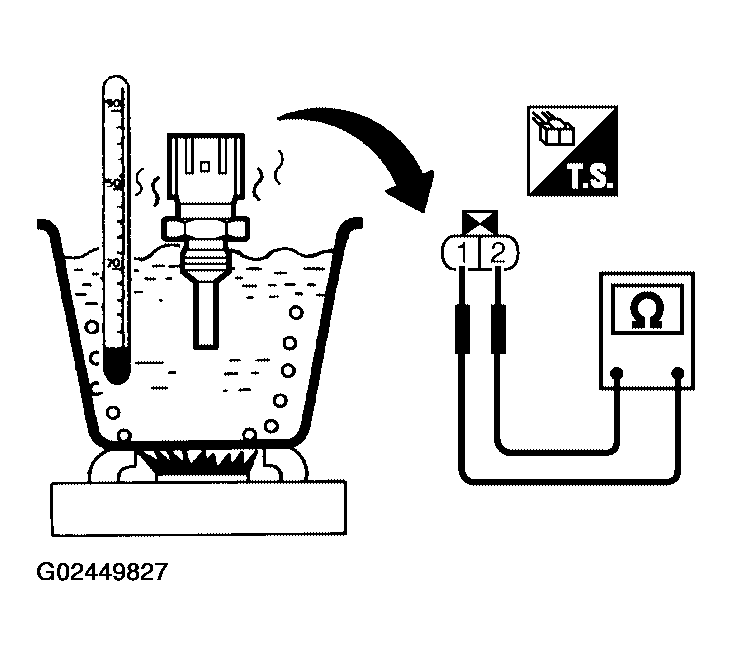

Check resistance as shown in Fig 1.

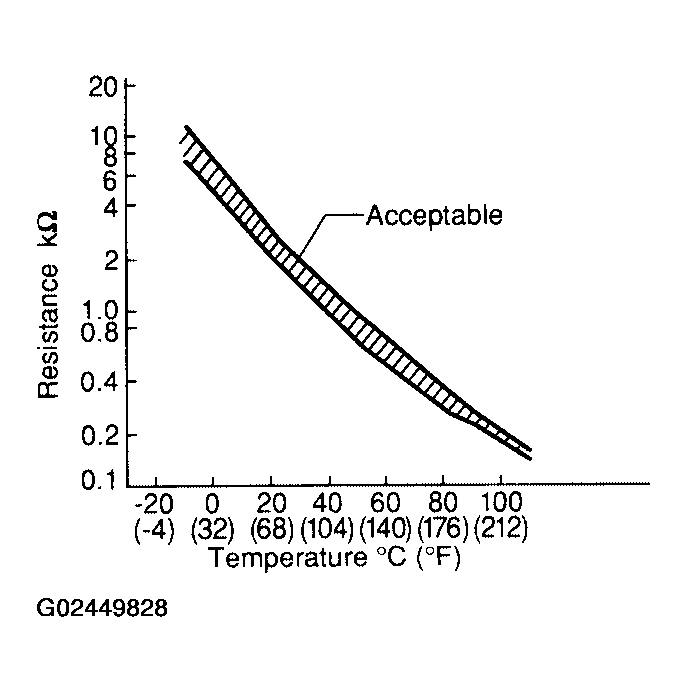

Reference data
ECT SENSOR RESISTANCE/TEMPERATURE SPECIFICATIONS
| Temperature °C (°F) | Resistance kΩ |
|---|---|
| 20 (68) | 2.1 - 2.9 |
| 50 (122) | 0.68 - 1.0 |
| 90 (194) | 0.236 - 0.260 |
If NG, replace engine coolant temperature sensor.
