DTC P0506: ISC System
>>
On Board Diagnosis Logic
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
On Board Diagnosis Logic

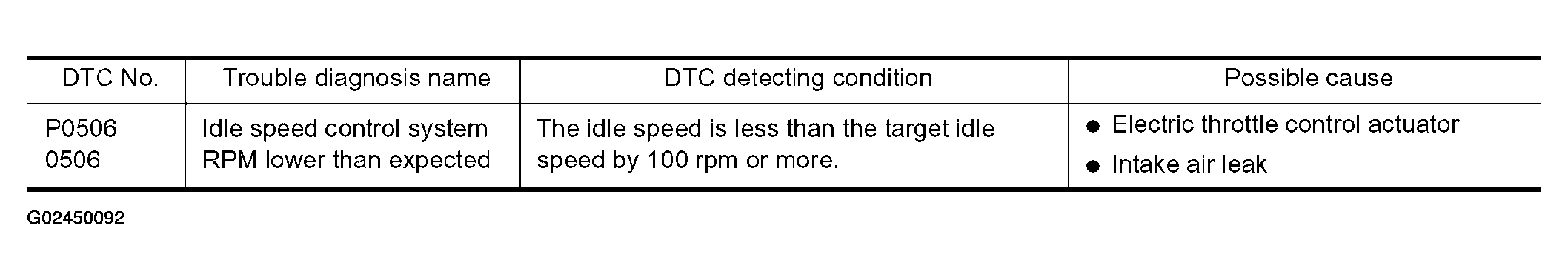

Fig 1: DTC P0506: On Board Diagnosis Logic
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
