Power Steering Pressure Sensor

  1. Reconnect all harness connectors disconnected.
  2. Start engine and let it idle.
  3. Check voltage between ECM terminal 12 and ground under the following conditions.

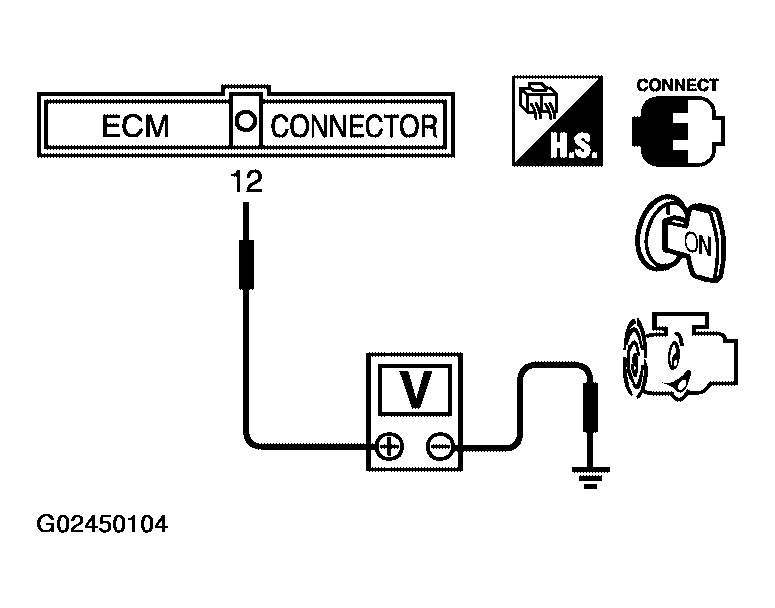

    Fig 1: Checking Voltage Between ECM Connector Terminal 12 And Ground
    G02450104Courtesy of NISSAN MOTOR CO., U.S.A.
    ECM CONNECTOR TERMINAL 12 VOLTAGE

    Condition Voltage
    Steering wheel is being turned fully. 0.5 - 4.0V
    Steering wheel is not being turned. 0.4 - 0.8V
