NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE .

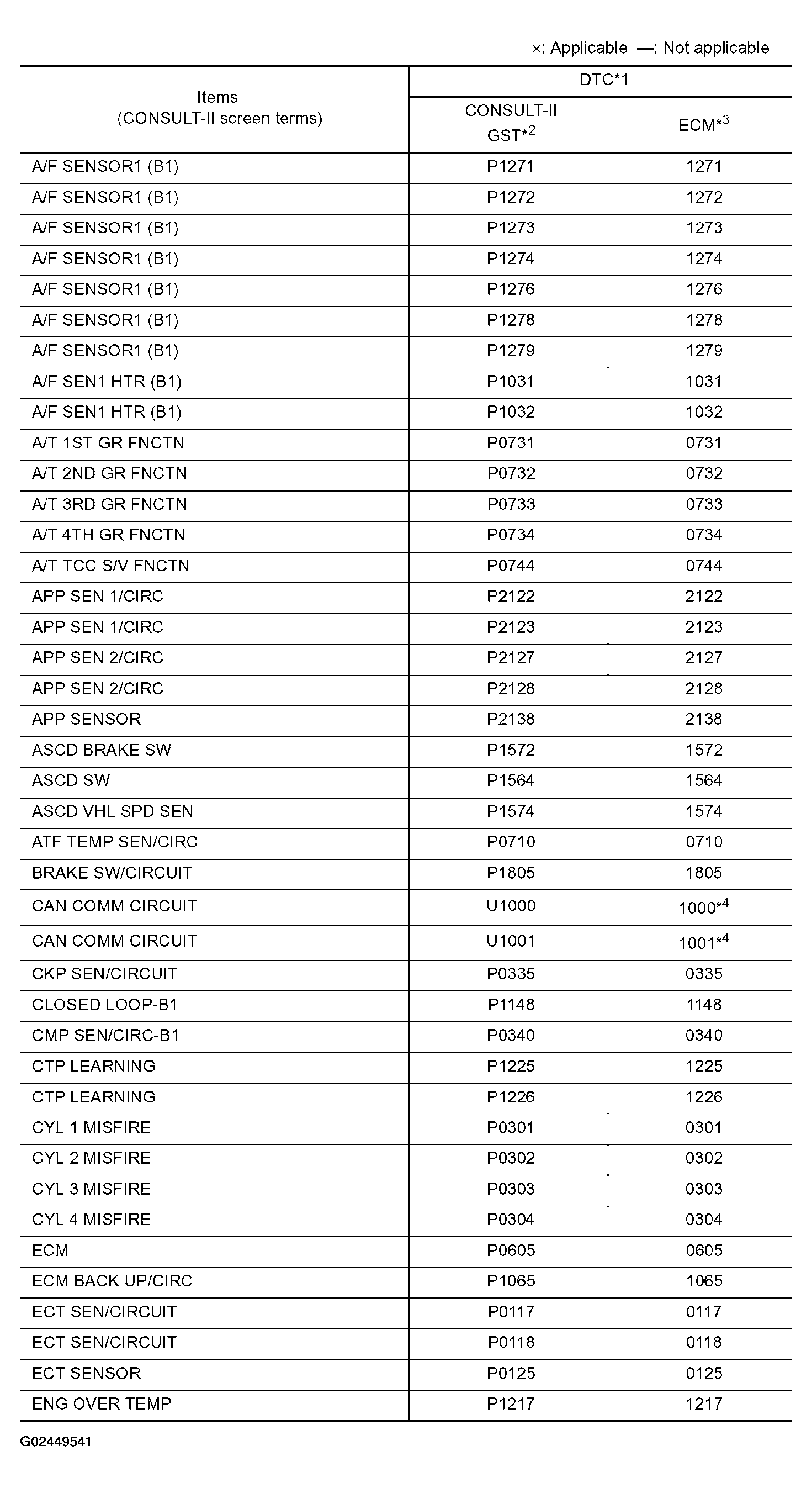

Fig 1: DTC Index By CONSULT-II Screen Display (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

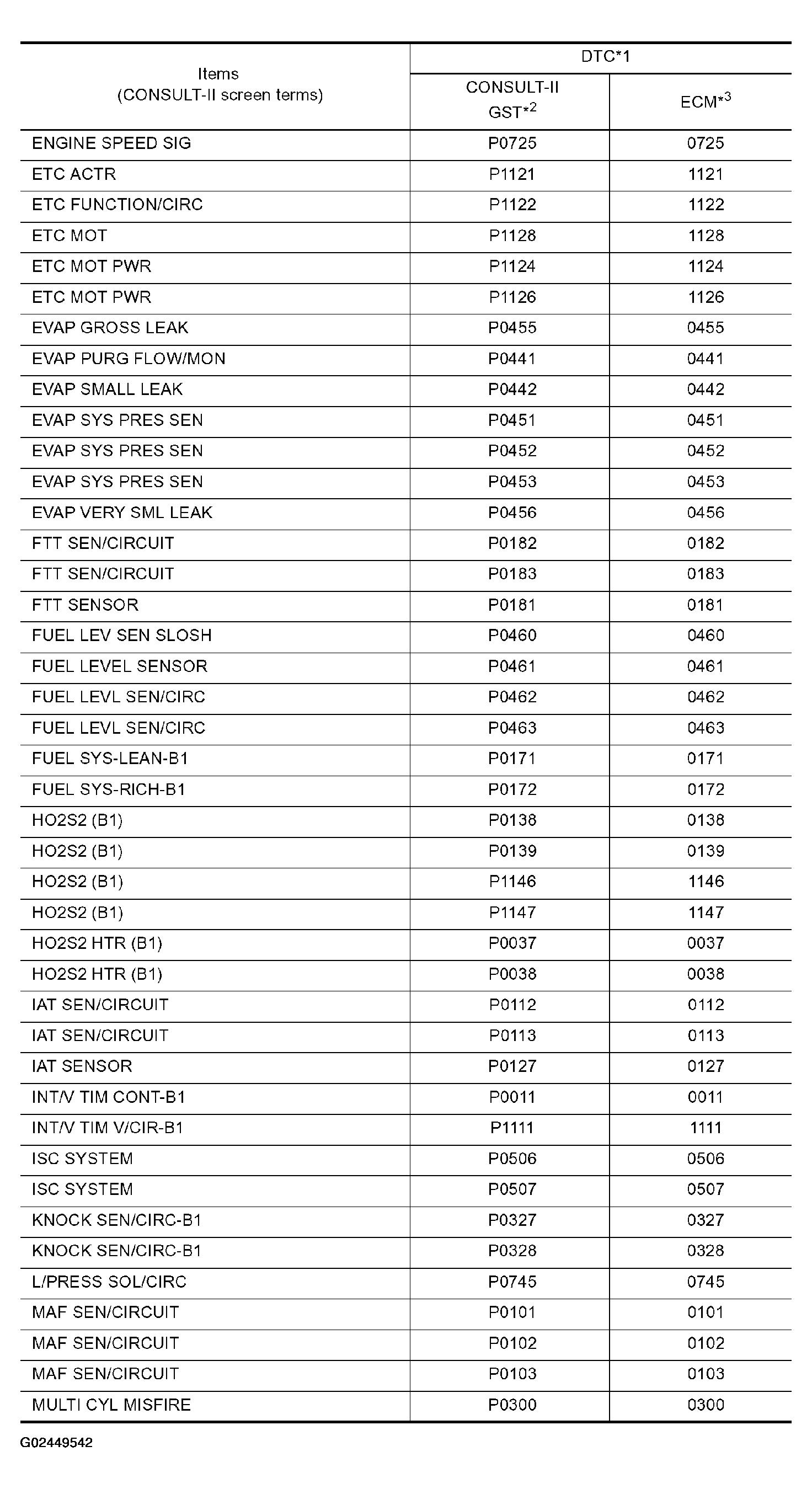

Fig 2: DTC Index By CONSULT-II Screen Display (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

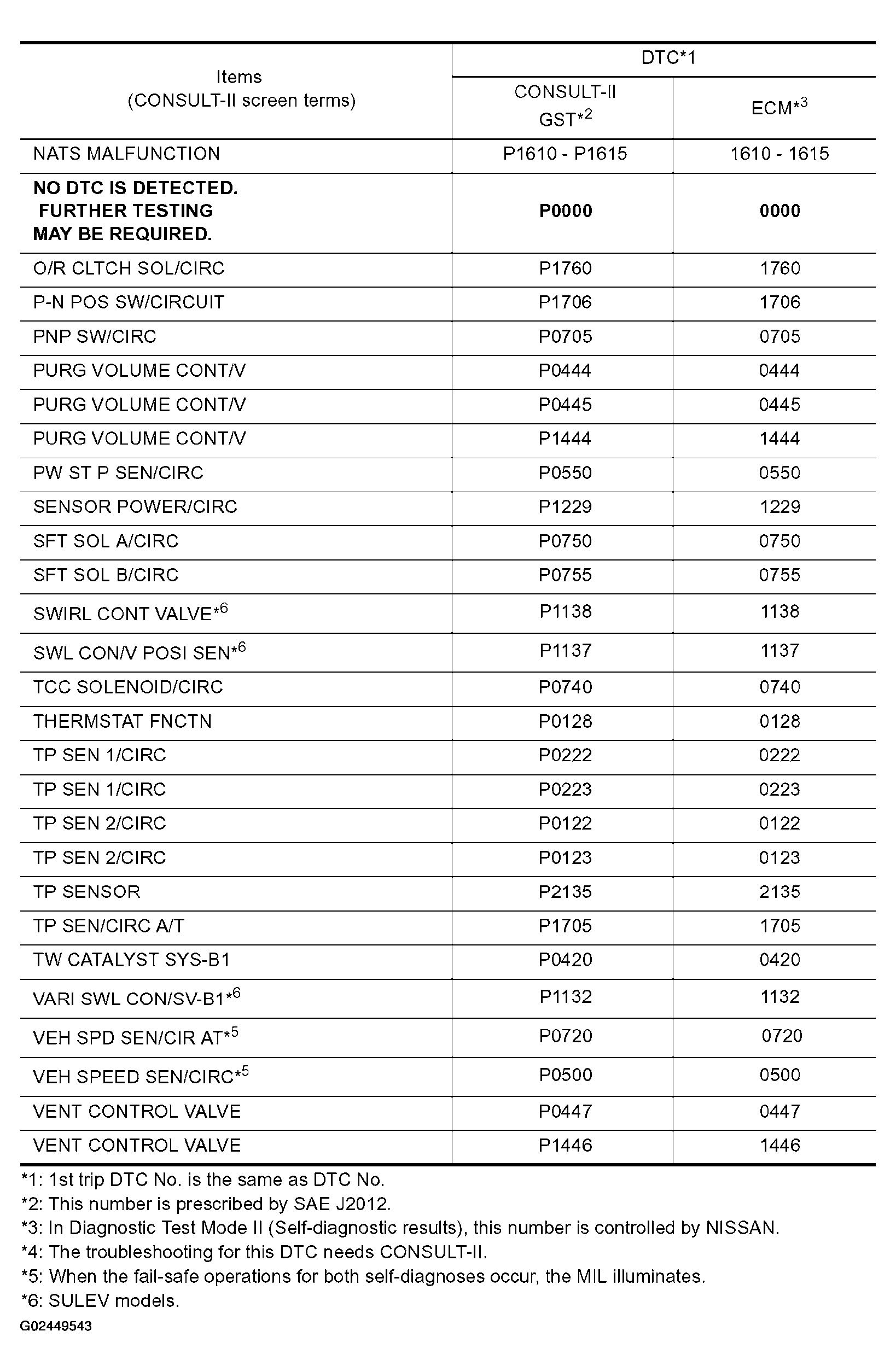

Fig 3: DTC Index By CONSULT-II Screen Display (3 Of 3)
