Ignition Signal: Wiring Diagram

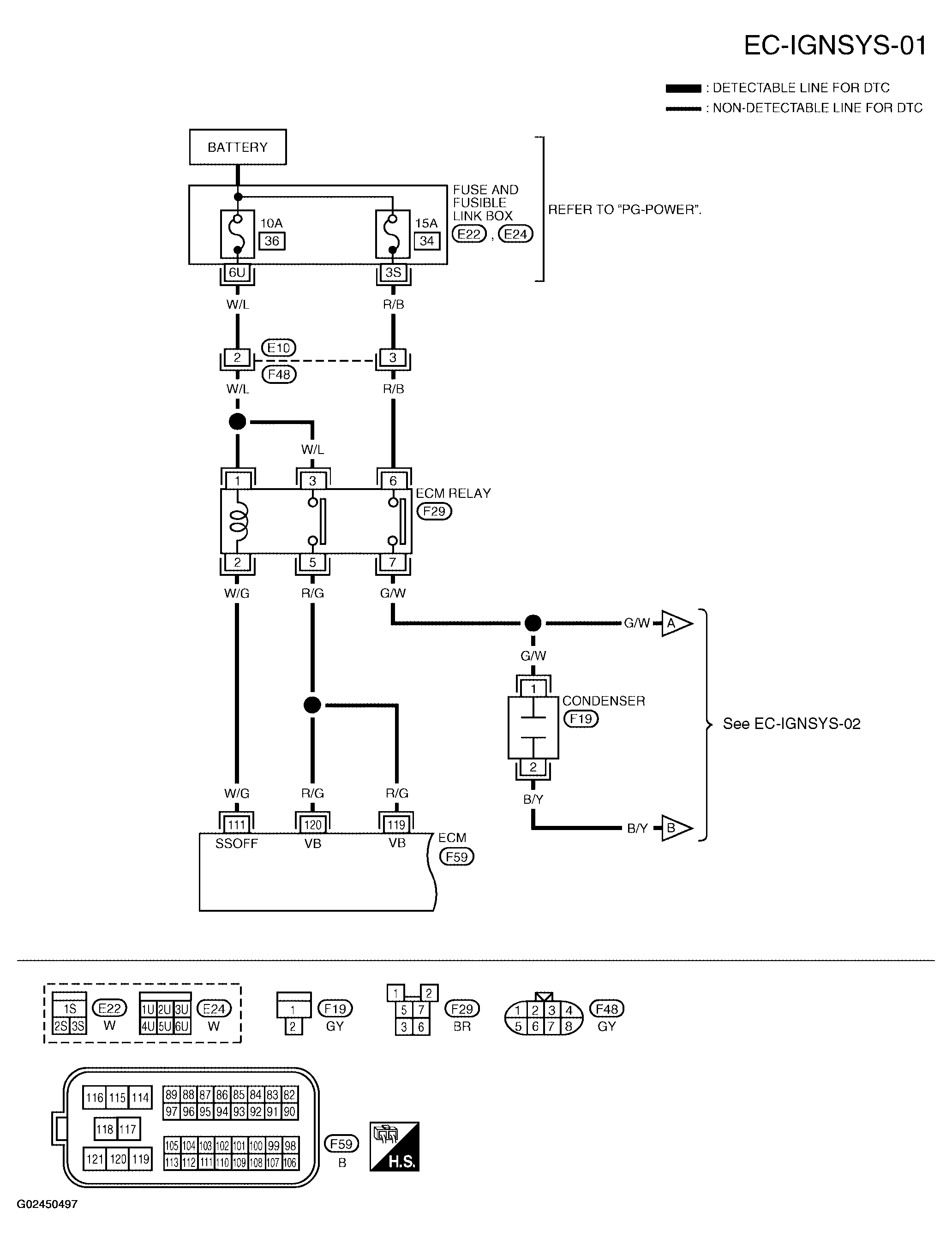

Fig 1: Wiring Diagram - Ignition Coil (EC-IGNSYS-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

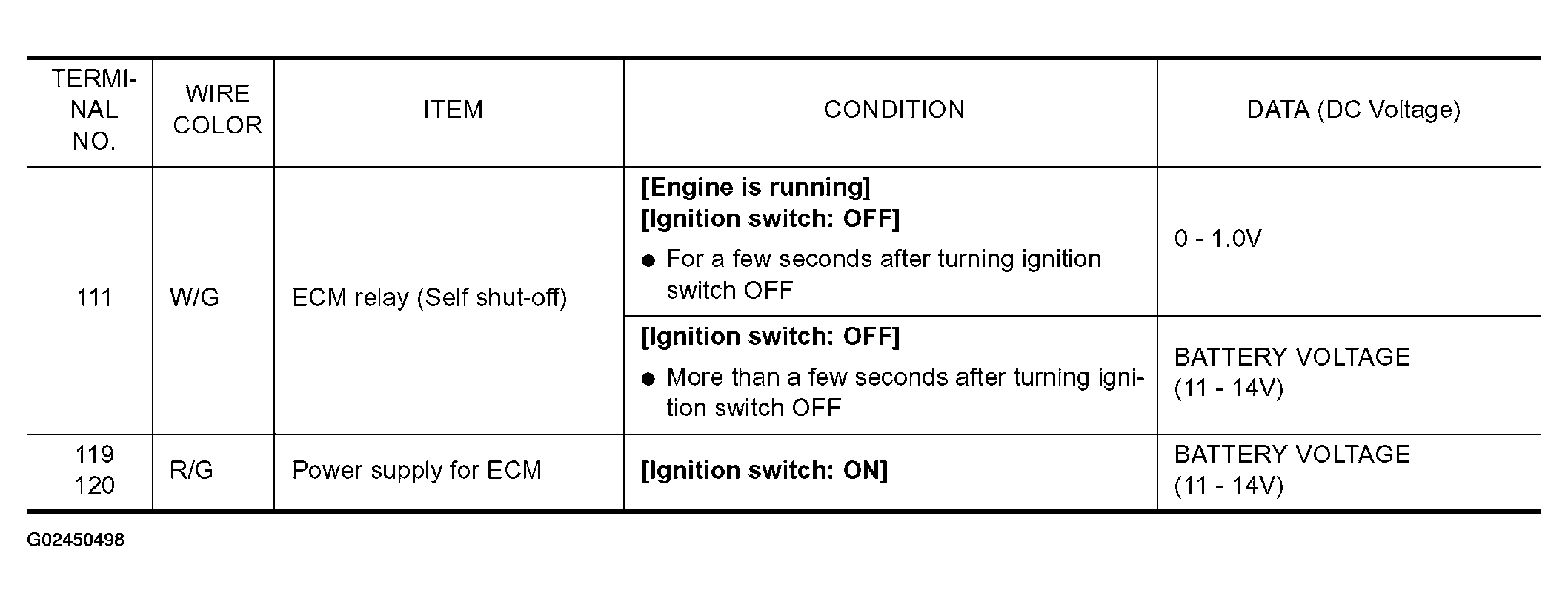

Fig 2: ECM Terminal Value Reference Chart - ECM Terminals 111, 119 & 120

Courtesy of NISSAN MOTOR CO., U.S.A.

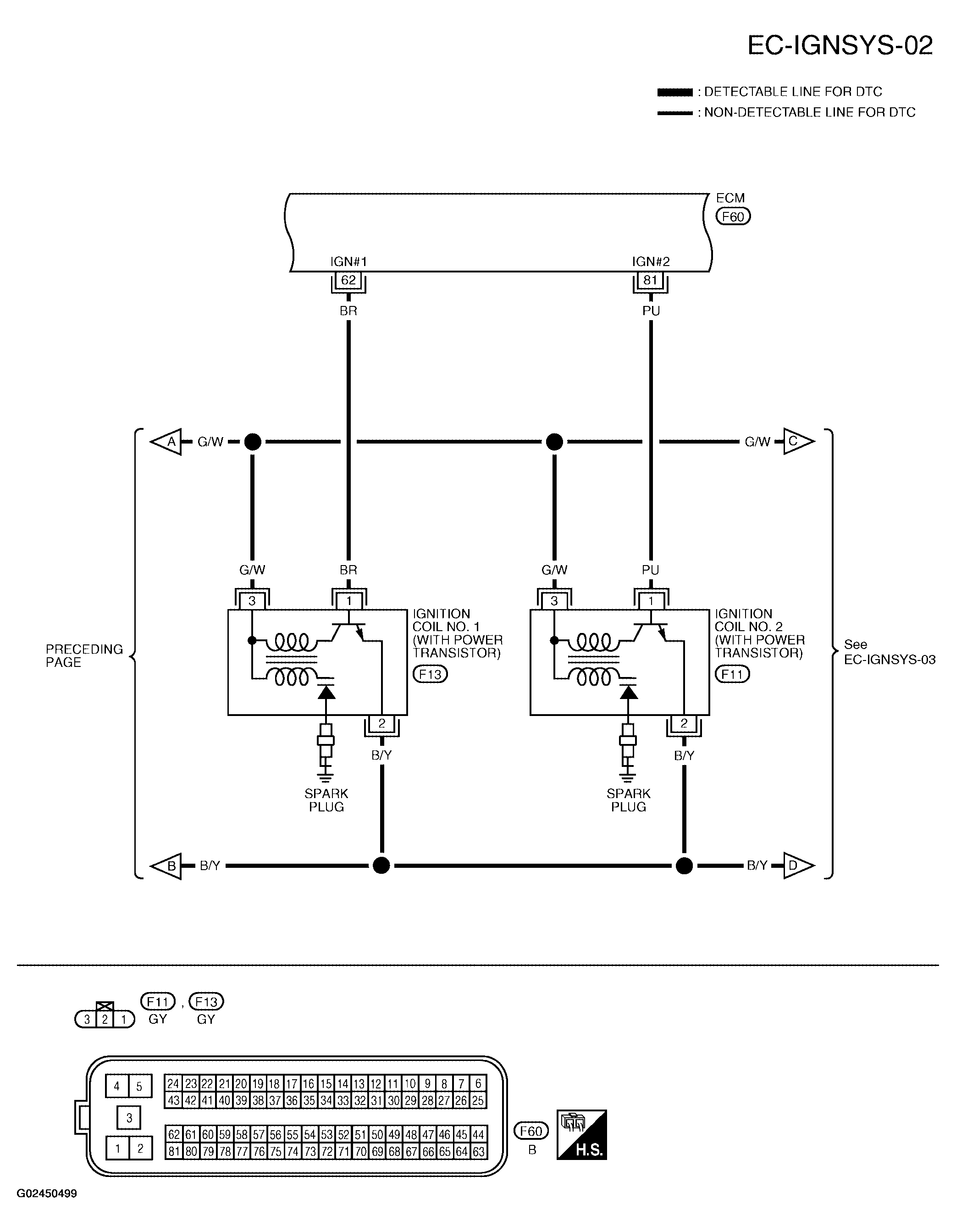

Fig 3: Wiring Diagram - Ignition Coil (EC-IGNSYS-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

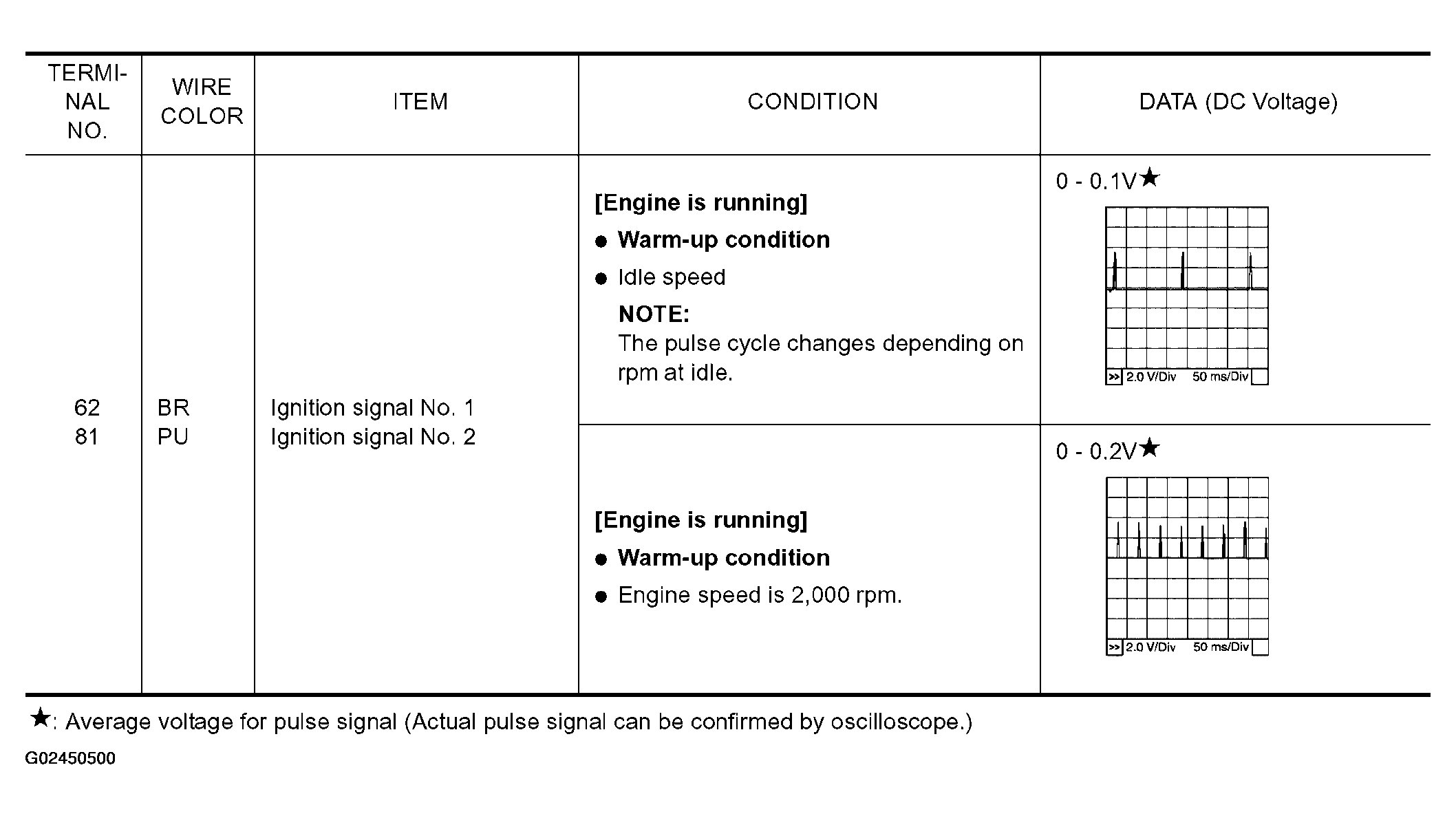

Fig 4: ECM Terminal Value Reference Chart - ECM Terminals 62 & 81

Courtesy of NISSAN MOTOR CO., U.S.A.

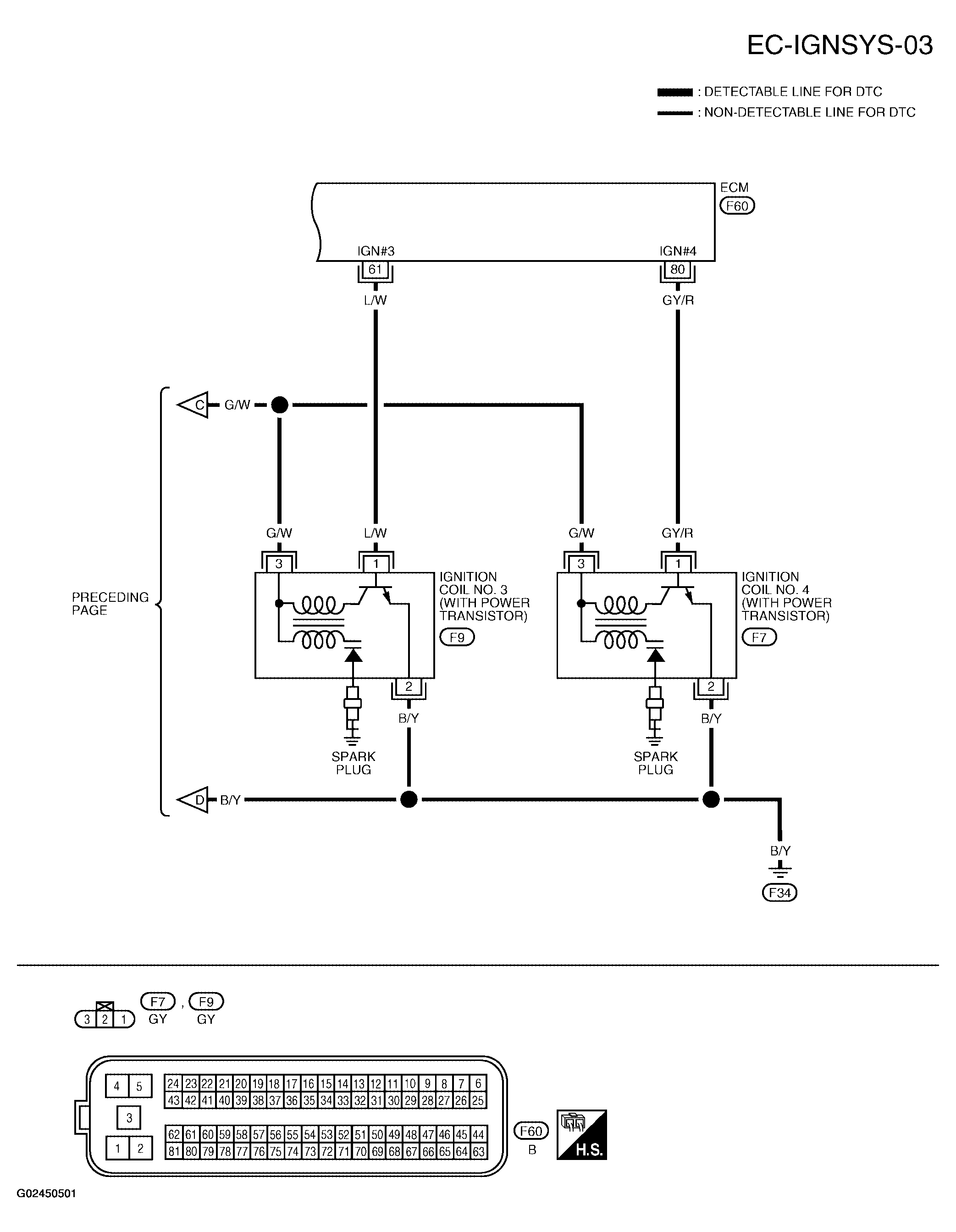

Fig 5: Wiring Diagram - Ignition Coil (EC-IGNSYS-03)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

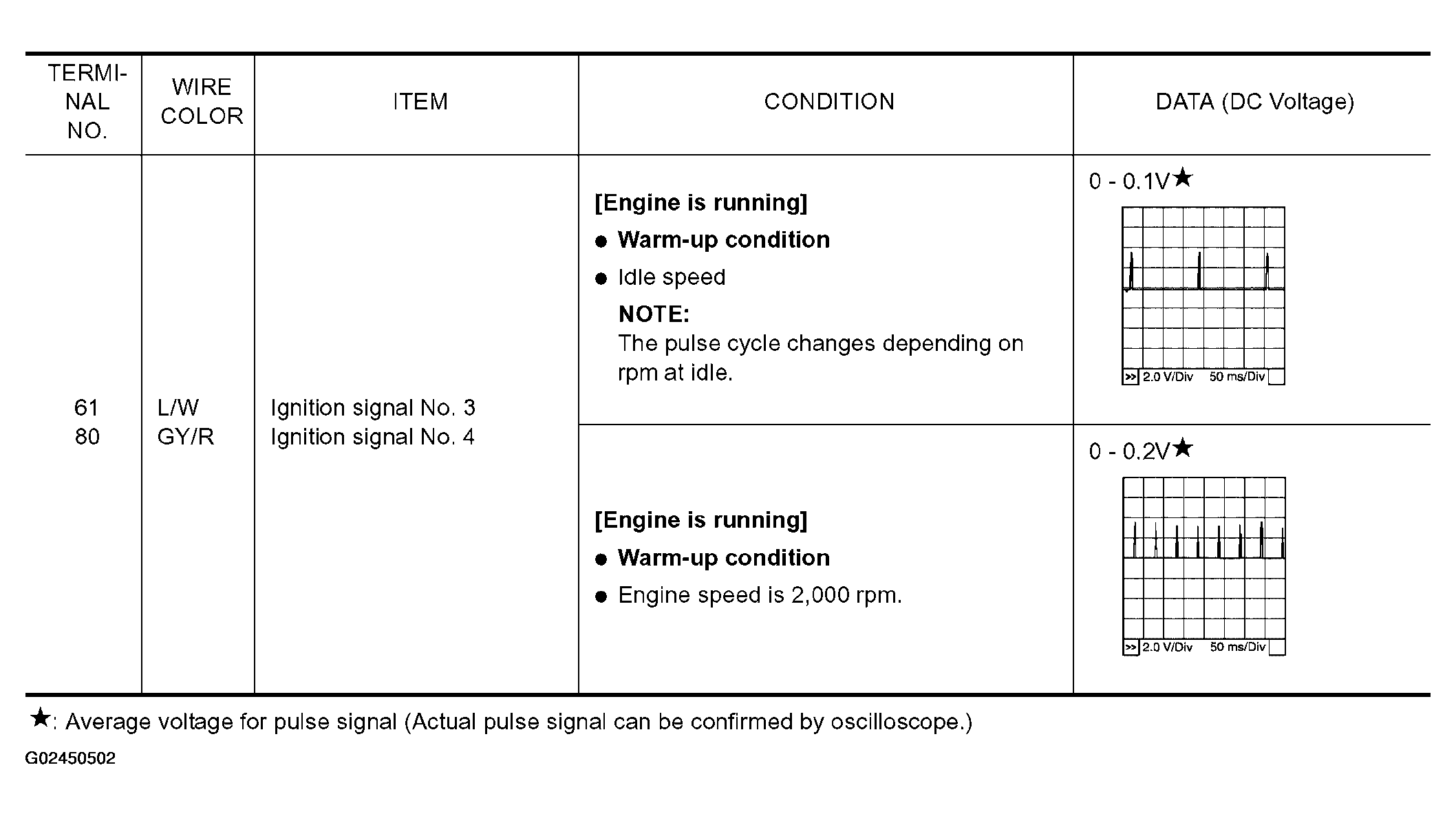

Fig 6: ECM Terminal Value Reference Chart - ECM Terminals 61 & 80

Courtesy of NISSAN MOTOR CO., U.S.A.
