Removal and Installation

CAUTION: Replace anchor bolts if they are deformed or worn out.

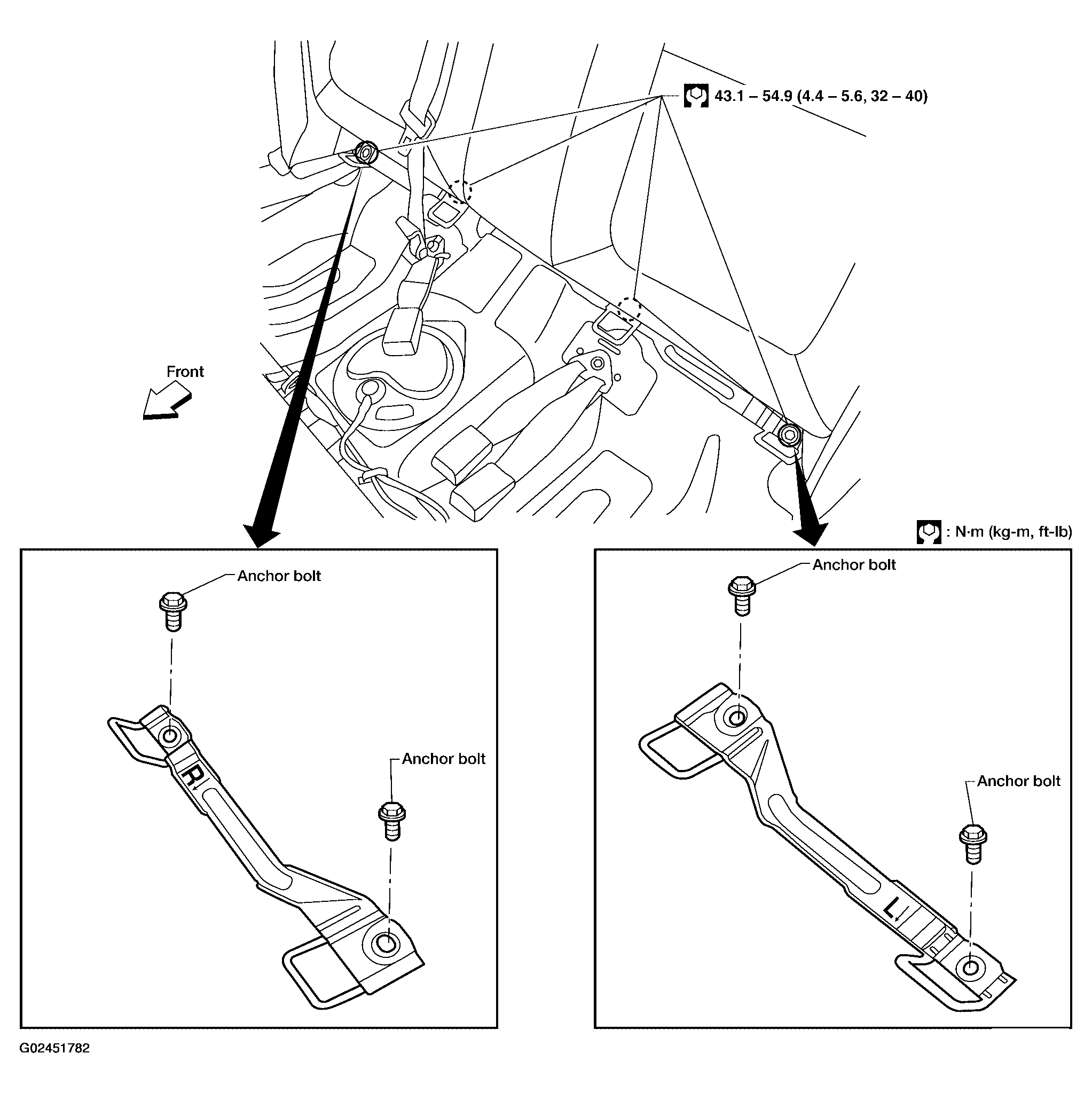

Fig 1: Removing/Installing Latch (Lower Anchors & Tether For Children) System
G02451782Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove rear seat cushion. Refer to REAR SEAT for details.
  2. Remove LH and RH LATCH System anchors.
NOTE: LH and RH LATCH System anchors are different.

Install with arrow facing forward.
