Removal and Installation

CAUTION: Replace anchor bolts if they are deformed or worn out.

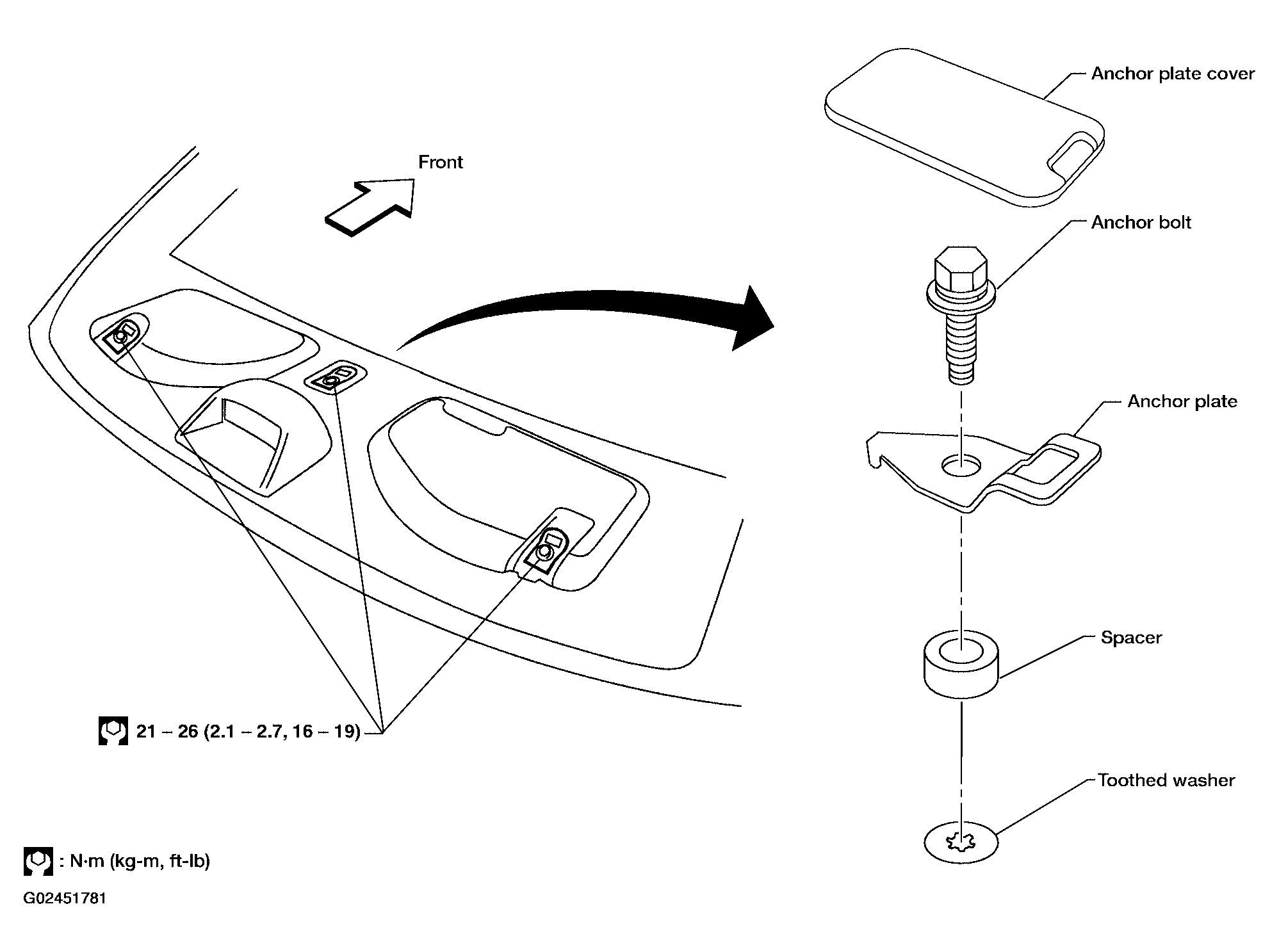

Fig 1: Removing/Installing Top Tether Strap Child Restraint With Torque Specifications
G02451781Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Remove anchor plate cover. Refer to SIDE AND FLOOR TRIM for details.
  2. Remove anchor plate.
    NOTE:
    • To install, reverse the removal procedure sequence.
