Consult-II Inspection Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn the ignition switch "OFF".
  2. Connect "CONSULT-II" to the data link connector.

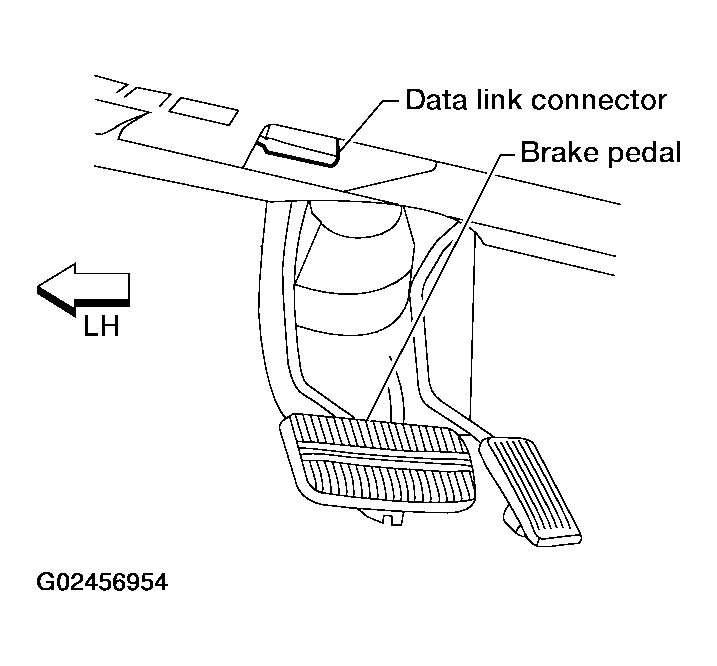

    Fig 1: Identifying Data Link Connector
    G02456954Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)".

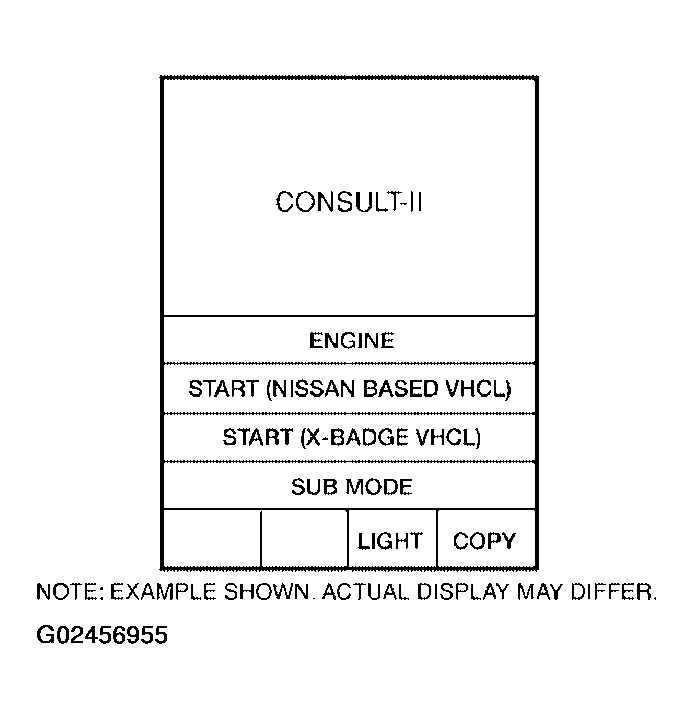

    Fig 2: CONSULT-II Diagnosis Function Display Start (Nissan Based VHCL) Screen
    G02456955Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "SMART ENTRANCE".
    Fig 3: CONSULT-II Diagnosis Function Display Smart Entrance Screen
    G02456956Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Perform each diagnostic item according to "DIAGNOSTIC ITEMS APPLICATION". Refer to DIAGNOSTIC ITEMS APPLICATION .

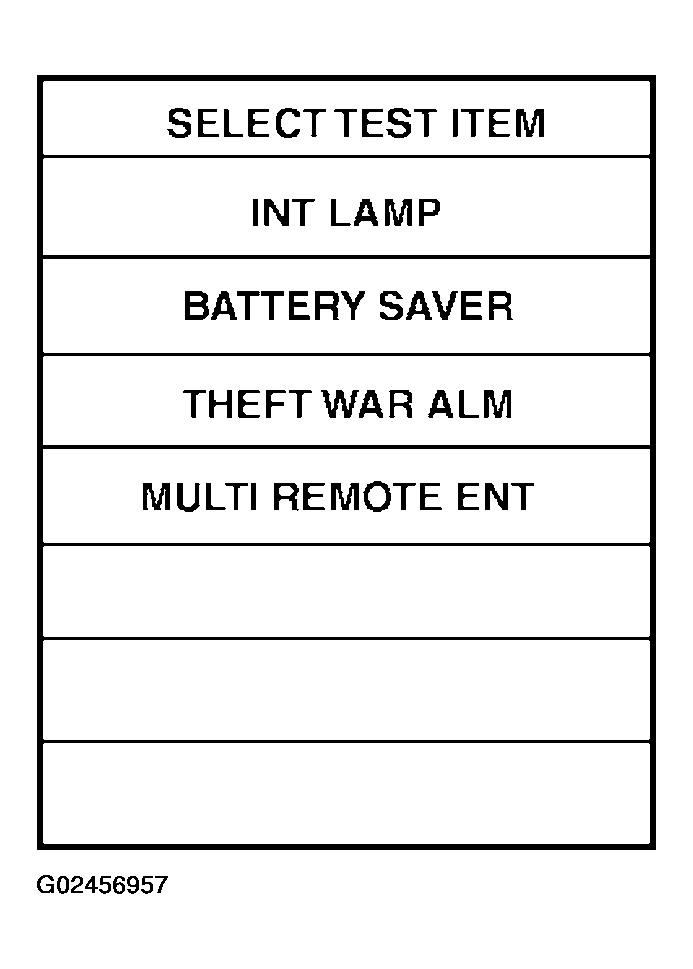

    Fig 4: CONSULT-II Diagnosis Function Display Select Test Items Screen
    G02456957Courtesy of NISSAN MOTOR CO., U.S.A.
