Smart Entrance Control Unit: Schematic

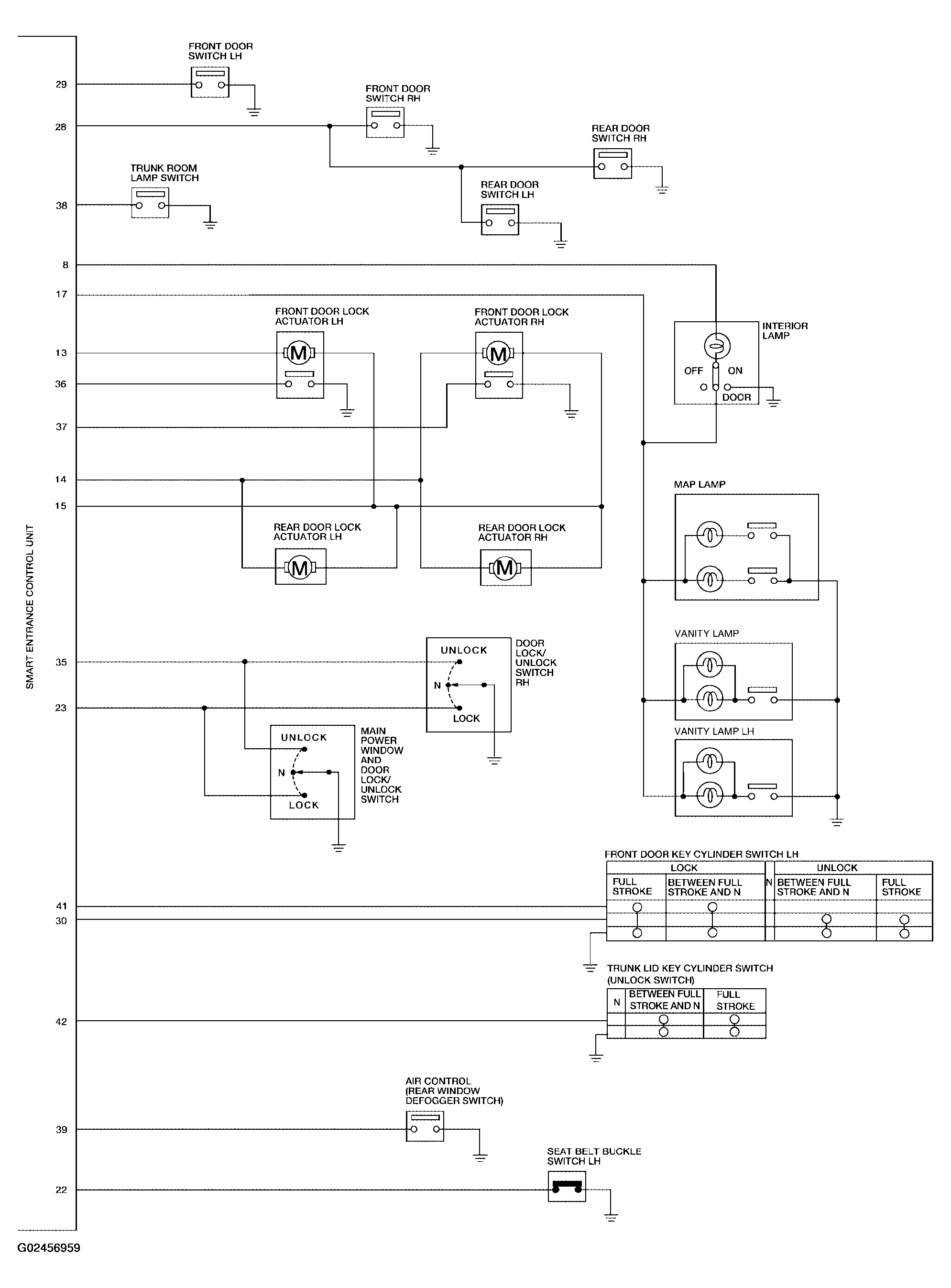

Fig 1: Schematic Diagram - Smart Entrance Control (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

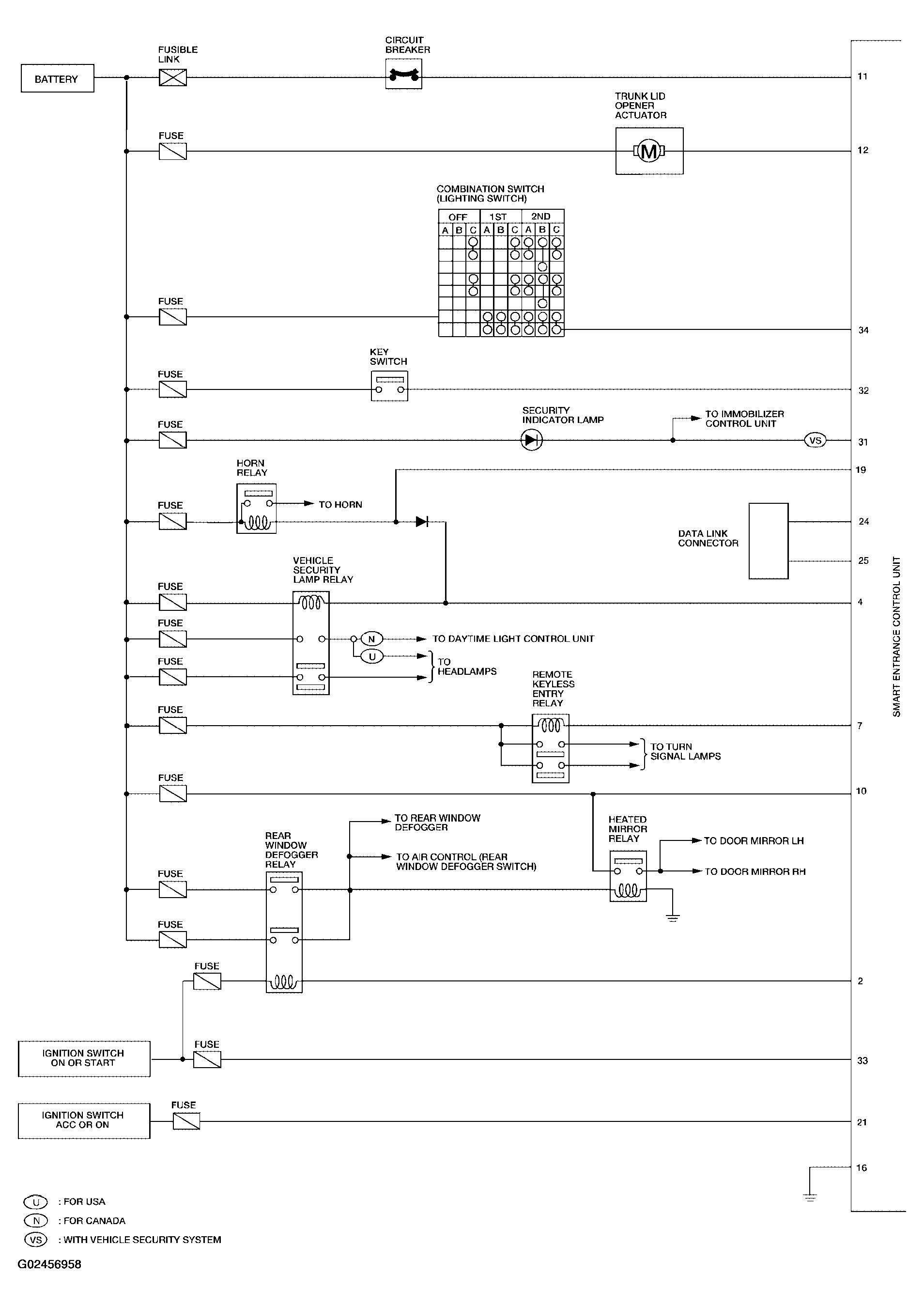

Fig 2: Schematic Diagram - Smart Entrance Control (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
