Engine Compartment

Measurement

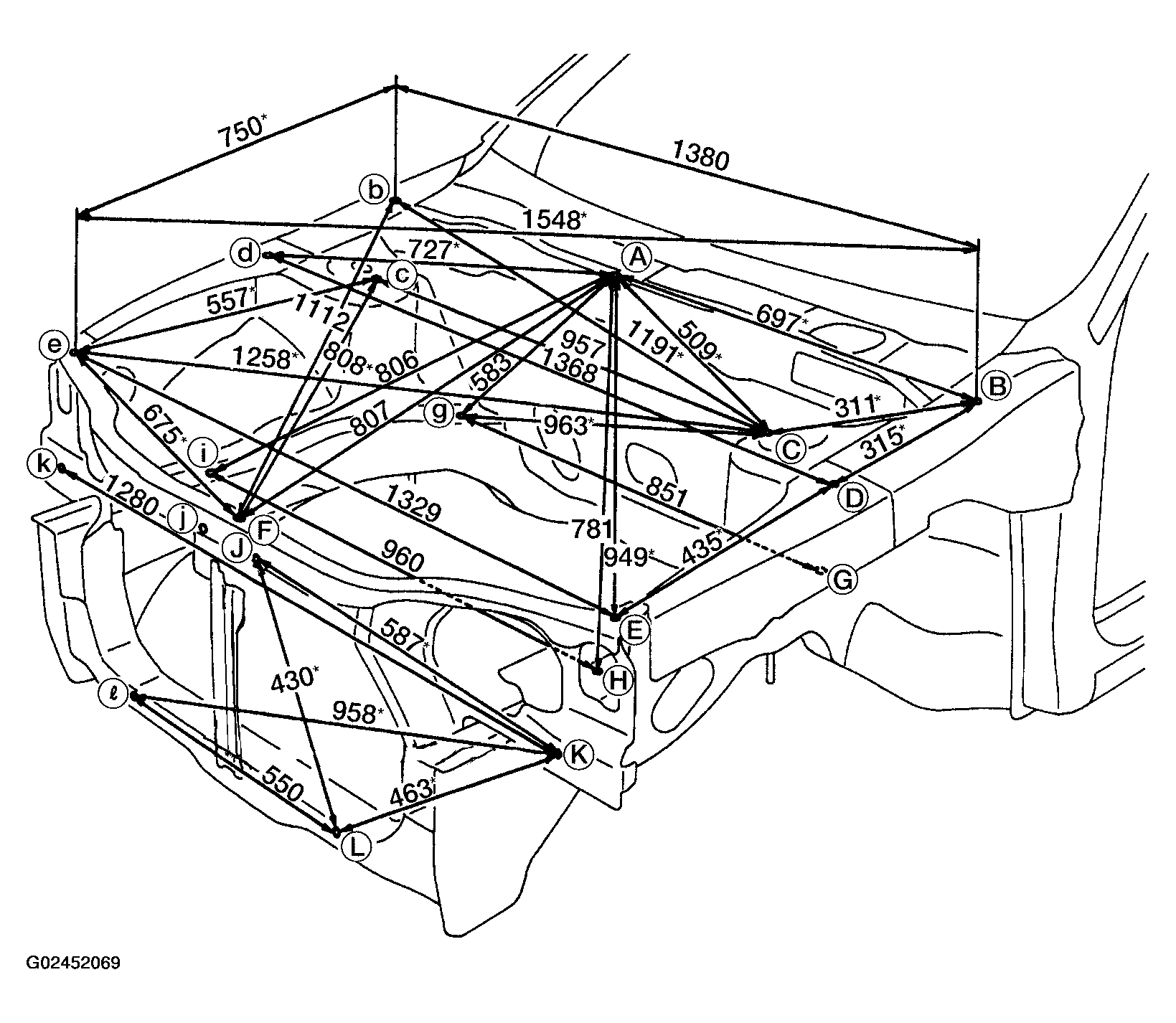

Fig 1: Engine Compartment Measurement (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Engine Compartment Measurement (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Measurement Points

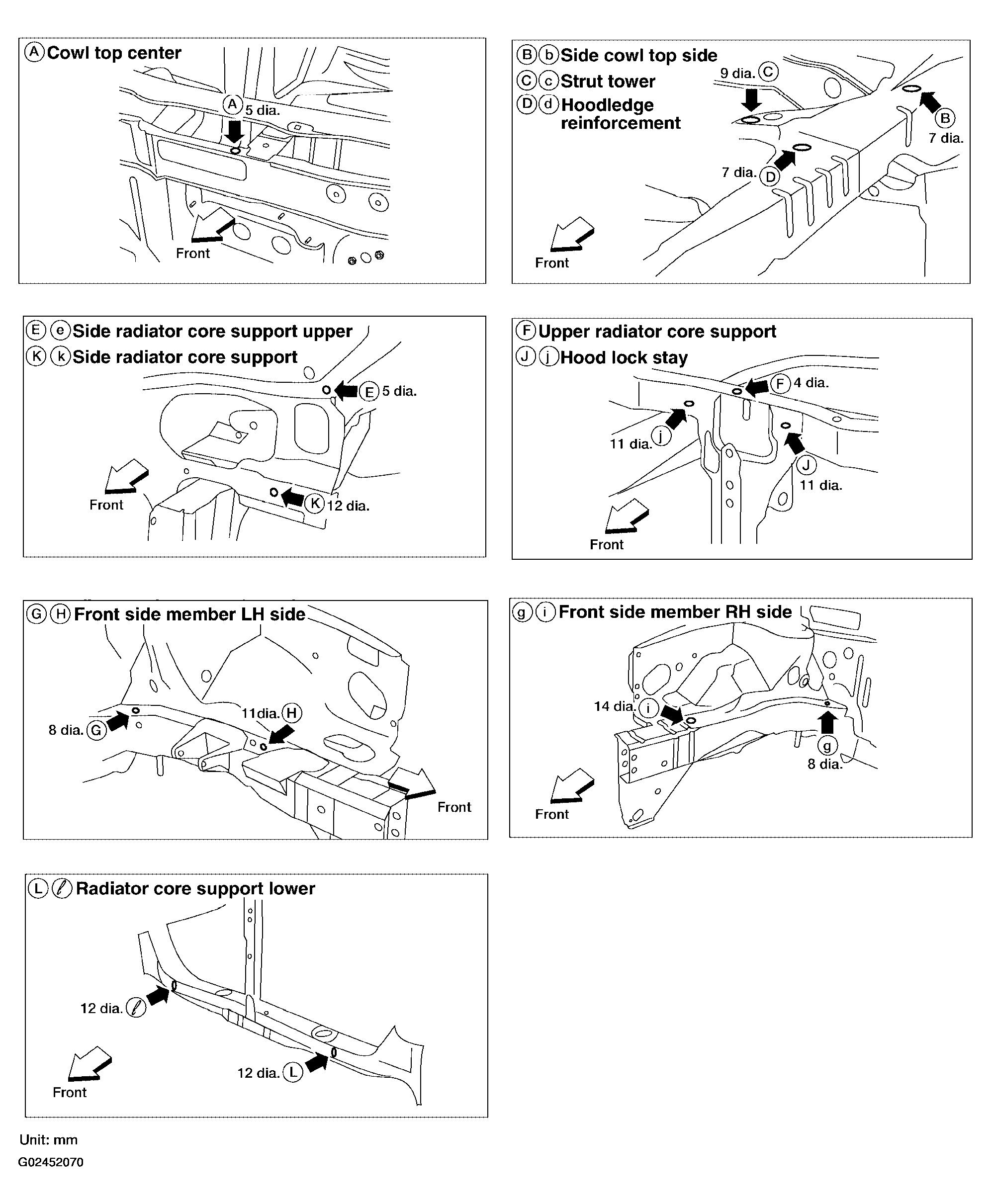

Fig 3: Engine Compartment Measurement Points

Courtesy of NISSAN MOTOR CO., U.S.A.
