KEYFOB Id Set Up With Consult-II

NOTE: If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. When the ID code of a lost keyfob is not known, all keyfob ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfobs must be re-registered.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.

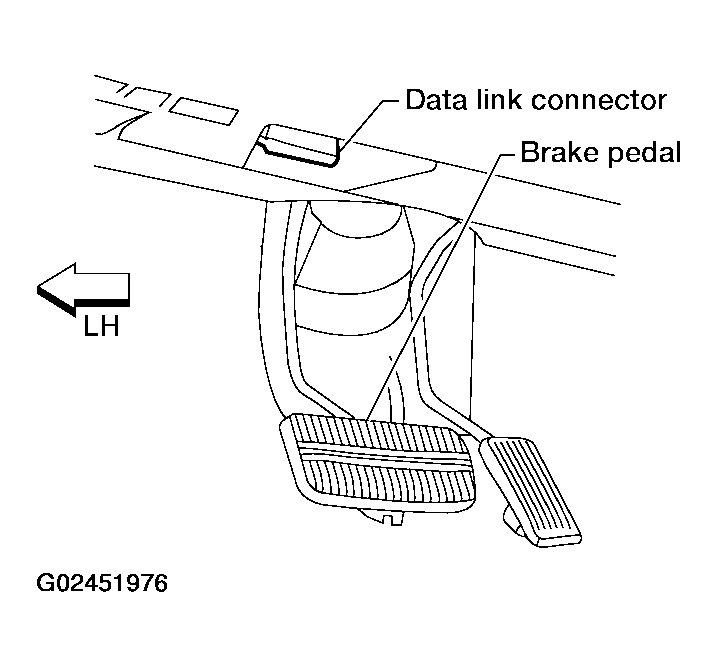

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

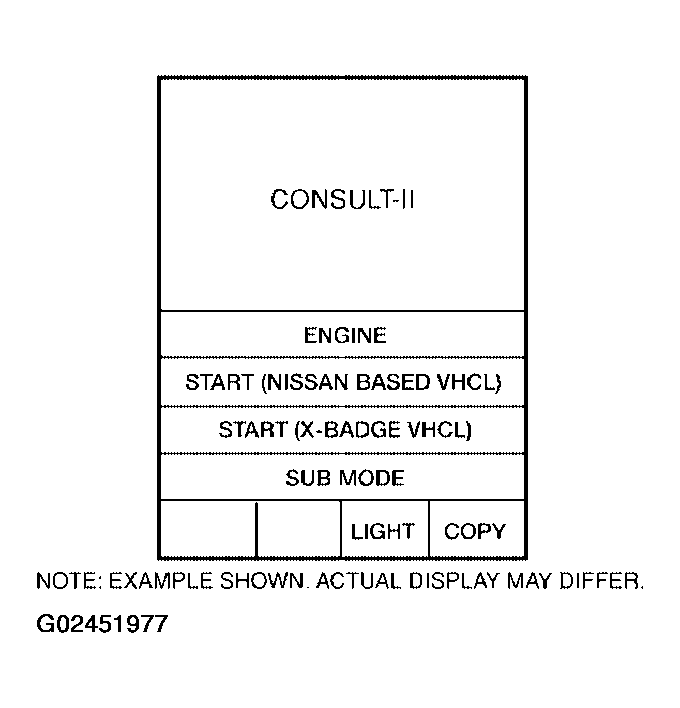

Fig 2: Identifying "START (NISSAN BASED VHCL)"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SMART ENTRANCE".
If "SMART ENTRANCE" is not indicated, refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

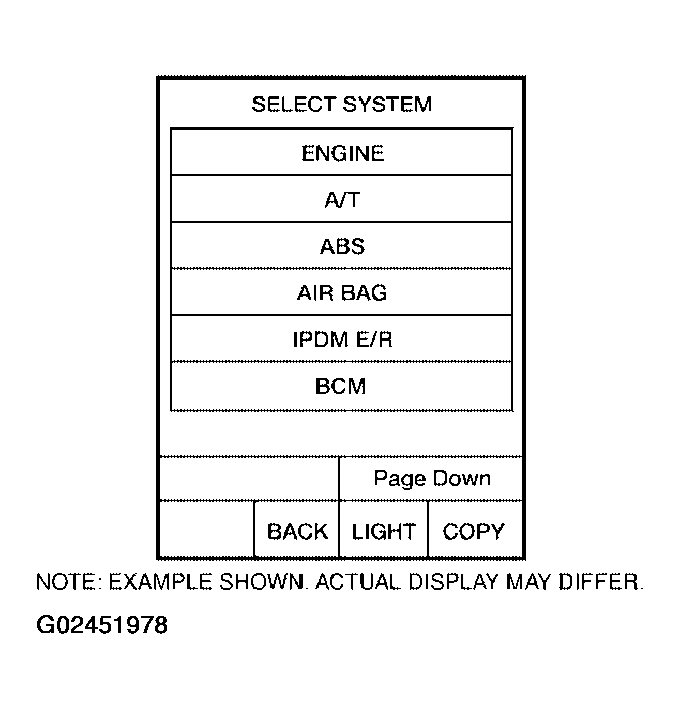

Fig 3: Identifying Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

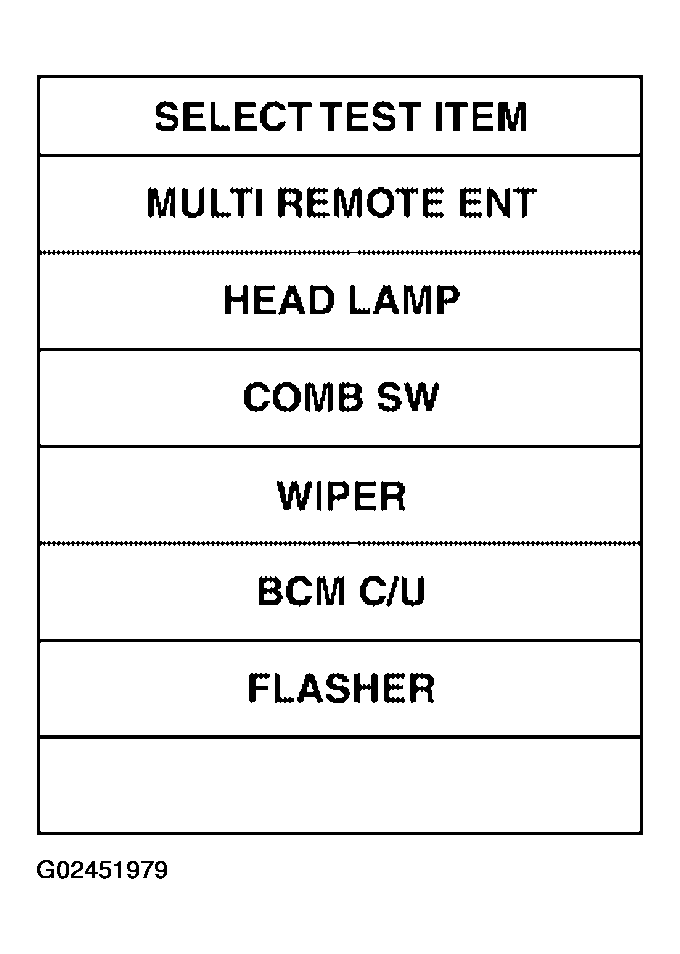

Fig 4: Identifying "MULTI REMOTE ENT"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WORK SUPPORT".

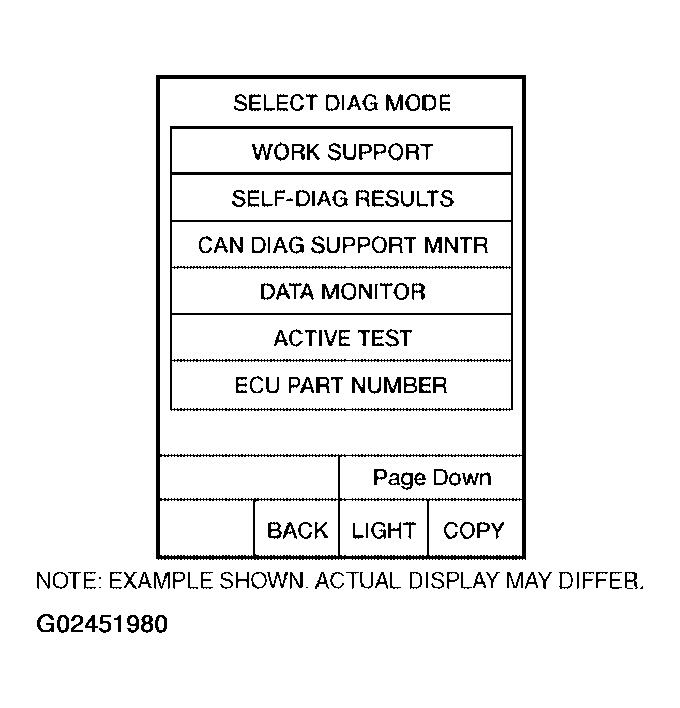

Fig 5: Identifying "WORK SUPPORT"
Courtesy of NISSAN MOTOR CO., U.S.A.
The items are shown that can be set up.
- "REMO CONT ID CONFIR"
  Use this mode to confirm if a keyfob ID code is registered or not.
- "REMO CONT ID REGIST"
  Use this mode to register a keyfob ID code.

  NOTE: Register the ID code when keyfob or smart entrance control unit is replaced, or when additional keyfob is required.
- "REMO CONT ID ERASUR"
  Use this mode to erase a keyfob ID code.
- "HZRD REM SET"
  Use this mode to activate or deactivate the hazard and horn reminder.

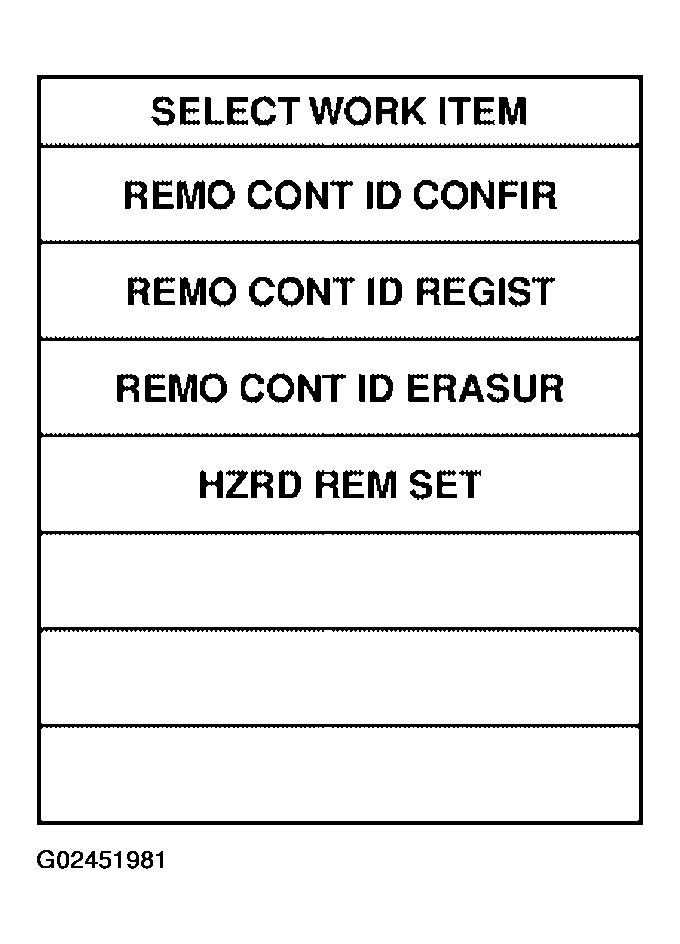

Fig 6: Identifying "REMO CONT ID CONFIR", "REMO CONT ID REGIST", "REMO CONT ID ERASUR" And "HZRD REM SET"
