Door Lock/Unlock Switch LH Check

CHECK DOOR LOCK/UNLOCK SWITCH INPUT SIGNAL
With CONSULT-II

Check door lock/unlock switch ("LOCK SW DR/AS"/ "UNLK SW DR/AS") in "DATA MONITOR" mode with CONSULT-II.

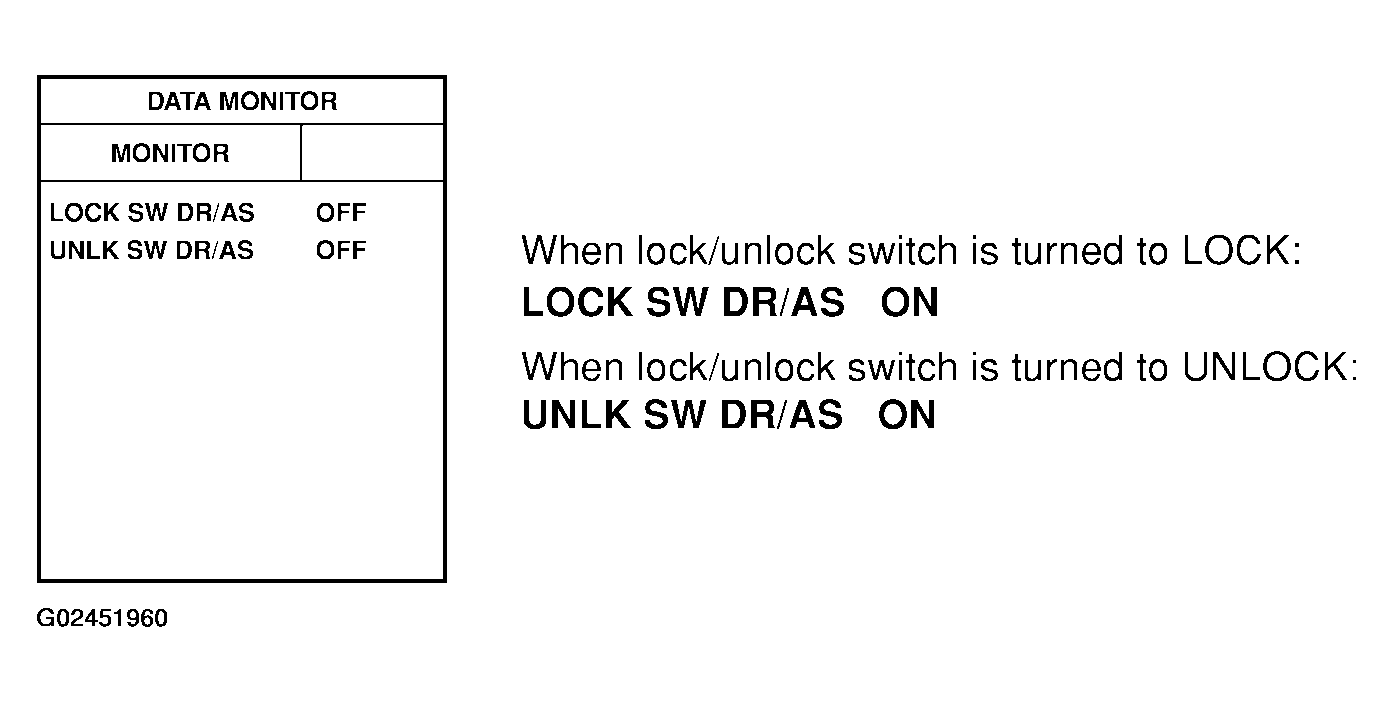

Fig 1: Identifying "LOCK SW DR/AS" And "UNLK SW DR/AS"
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Disconnect smart entrance control unit harness connector.
2. Check continuity between smart entrance control unit harness connector terminal 23 or 35 and ground.

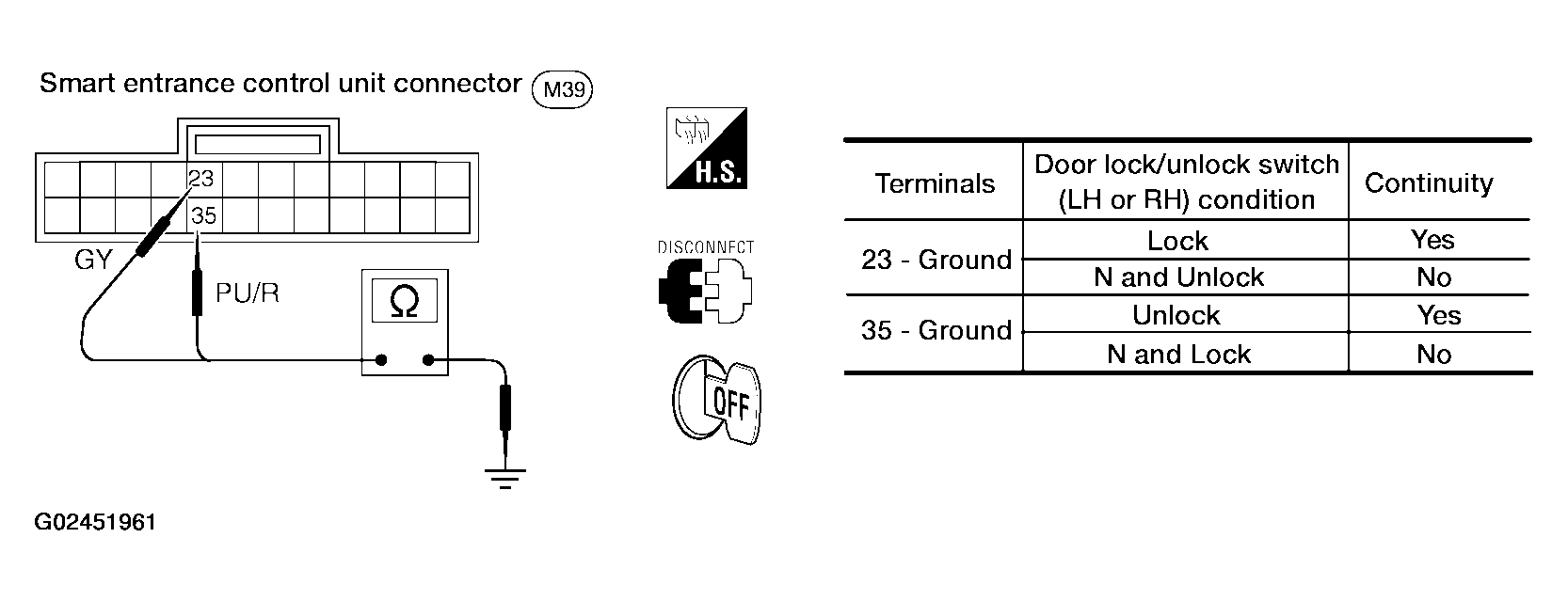

  Fig 2: Checking Continuity Between Smart Entrance Control Unit Harness Connector Terminal 23, 35 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.

  Refer to WIRING DIAGRAM - KEYLES - .
OK or NG
- OK: Door lock/unlock switch is OK.
- NG: GO TO 2.
CHECK DOOR LOCK/UNLOCK SWITCH
1. Disconnect door lock/unlock switch harness connector.
2. Check continuity between door lock/unlock switch LH terminals.

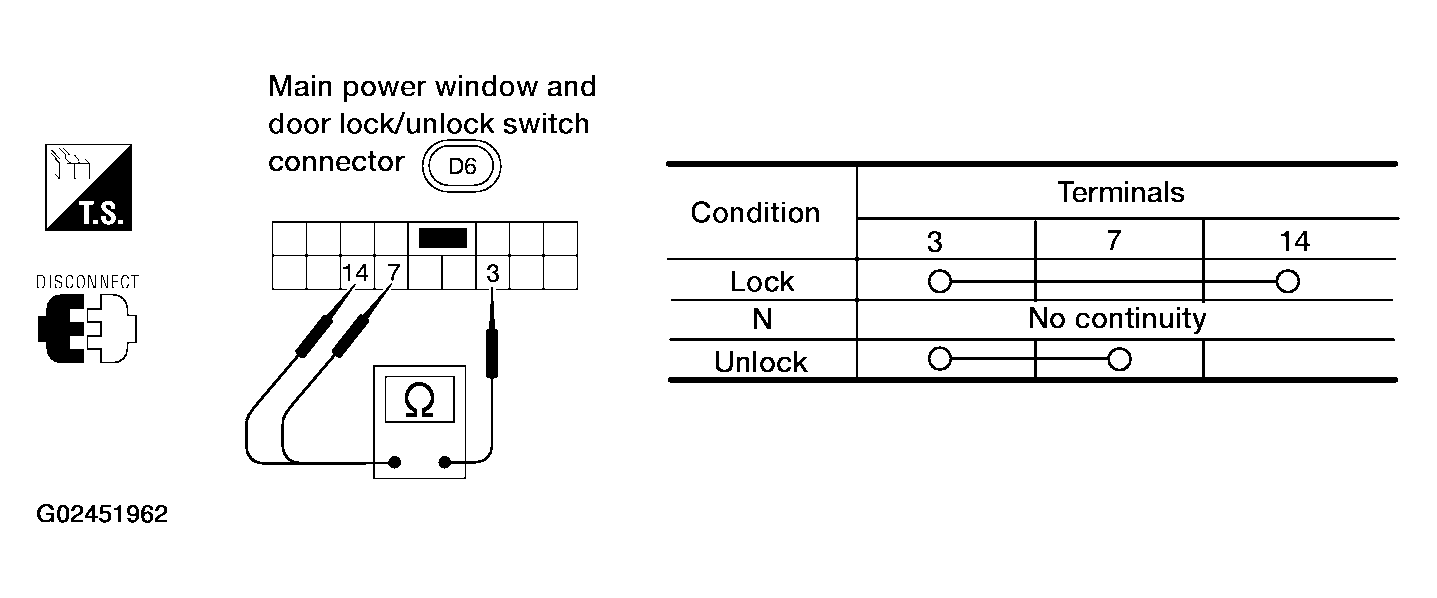

  Fig 3: Checking Continuity Between Door Lock/Unlock Switch LH Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Check the following.
  - Ground circuit for door lock/unlock switch
  - Harness for open or short between door lock/unlock switch and smart entrance control unit connector
- NG: Replace door lock/unlock switch.
