Door Switch Check

CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II

Check door switches ("DOOR SW-ALL") in "DATA MONITOR" mode with CONSULT-II.

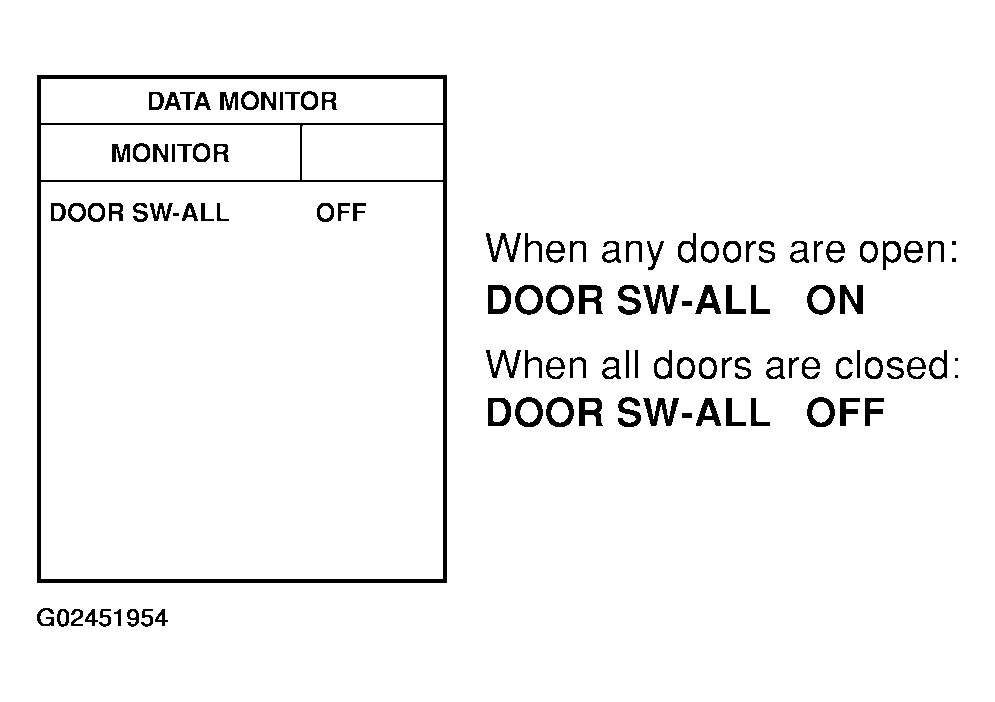

Fig 1: Identifying "DOOR SW-ALL" In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between smart entrance control unit harness connector terminals 28 or 29 and ground.

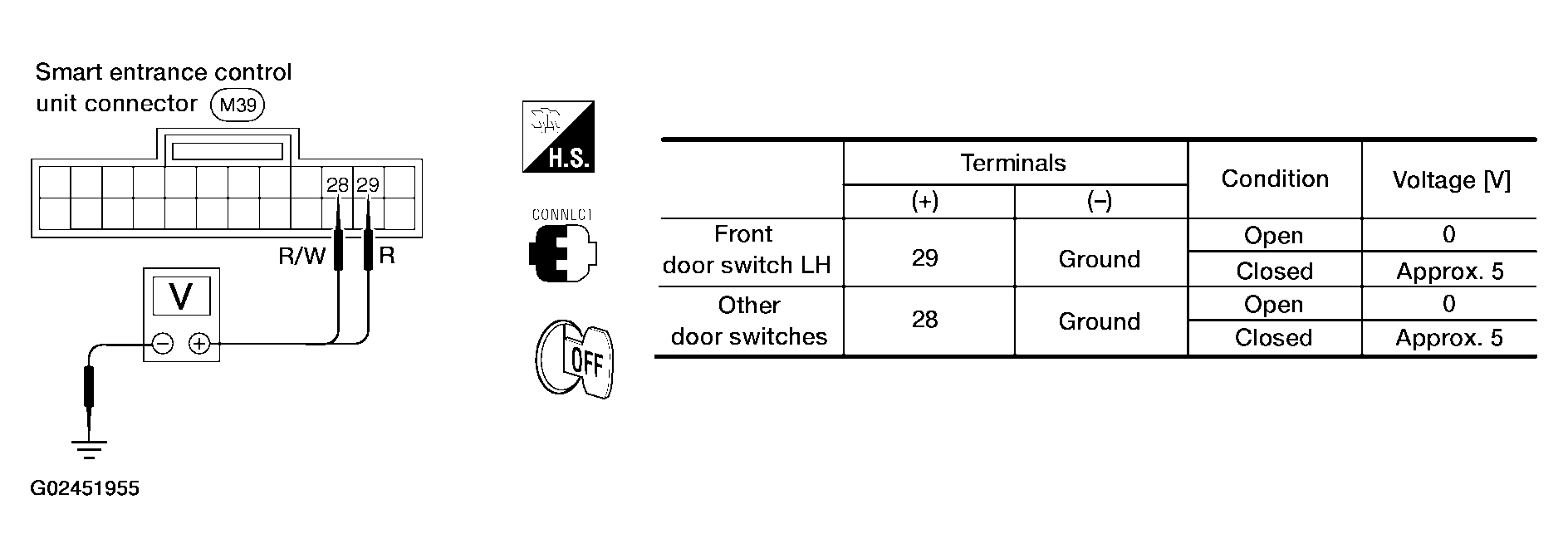

Fig 2: Checking Voltage Between Smart Entrance Control Unit Harness Connector Terminals 28, 29 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "WIRING DIAGRAM - KEYLES - ".

OK or NG
- OK: Door switch is OK.
- NG: GO TO 2.
CHECK DOOR SWITCH
1. Disconnect door switch harness connector.
2. Check continuity between door switch terminals.

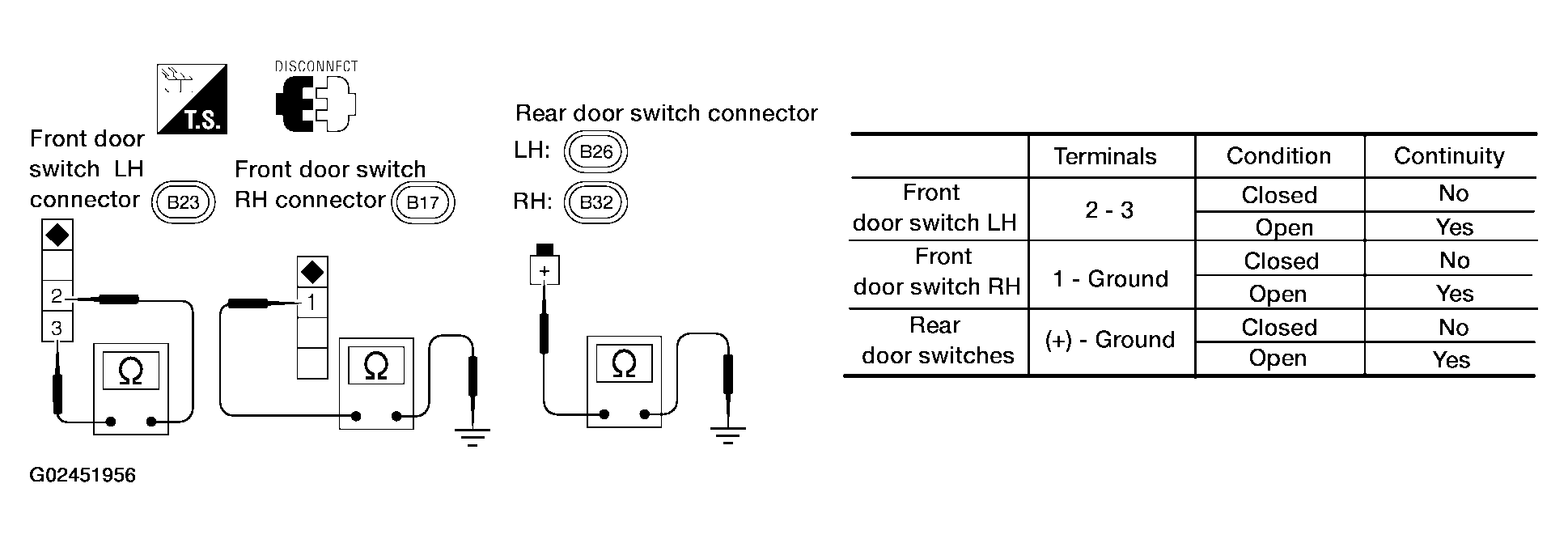

  Fig 3: Checking Continuity Between Door Switch Terminals
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Check the following.
  - Door switch ground circuit or door switch ground condition
  - Harness for open or short between smart entrance control unit and door switch
- NG: Replace door switch.
