Interior Lamp Operation Check

Check if the interior lamp switch is in the "ON" position and the lamp illuminates.

Does interior lamp illuminate?

• Yes: GO TO 2.
• No: Check the following.
  • Harness for open or short between smart entrance control unit and interior lamp
  • Interior lamp

With CONSULT-II

1. Select "ACTIVE TEST" in "MULTI REMOTE ENT" with CONSULT-II.
2. Select "INT/IGN ILLUM" and touch "ON".

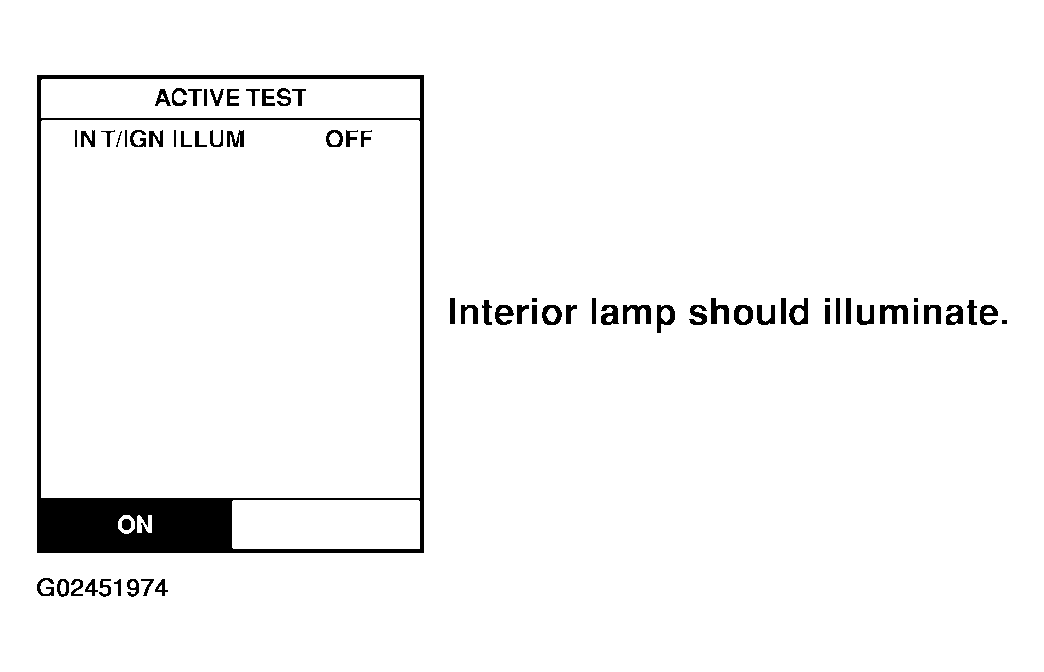

   Fig 1: Identifying "INT/IGN ILLUM"

   Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Push unlock button of keyfob with all doors closed, and check voltage between smart entrance control unit harness connector terminal 8 and ground.

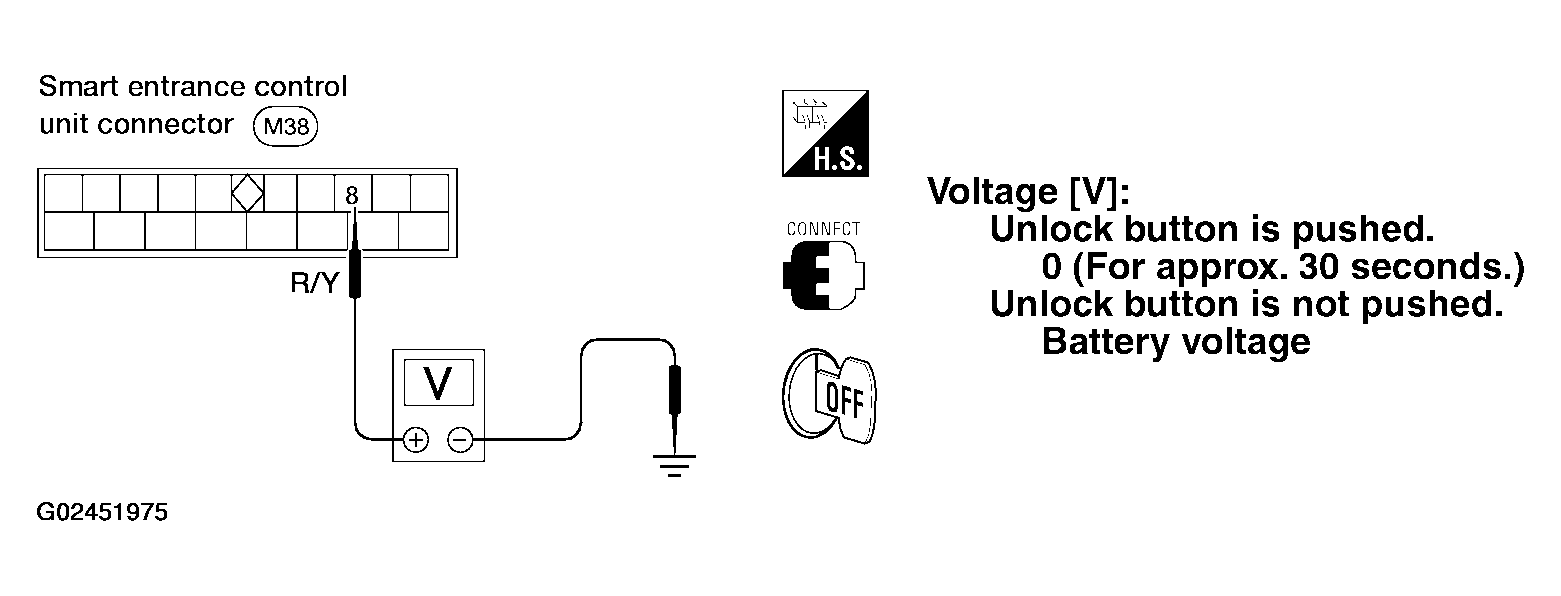

Fig 2: Checking Voltage Between Smart Entrance Control Unit Harness Connector Terminal 8 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "WIRING DIAGRAM - KEYLES - ".

OK or NG

• OK: System is OK.
• NG: Check harness open or short between smart entrance control unit and interior lamp.
