KEYFOB Battery And Function Check

CHECK KEYFOB BATTERY
Remove battery (refer to "KEYFOB BATTERY REPLACEMENT ") and measure voltage across battery positive and negative terminals, (+) and (-).
- Voltage [V]: 2.5 - 3.0
NOTE: Keyfob does not function if battery is not set correctly.

OK or NG
- OK: GO TO 2.
- NG: Replace battery.

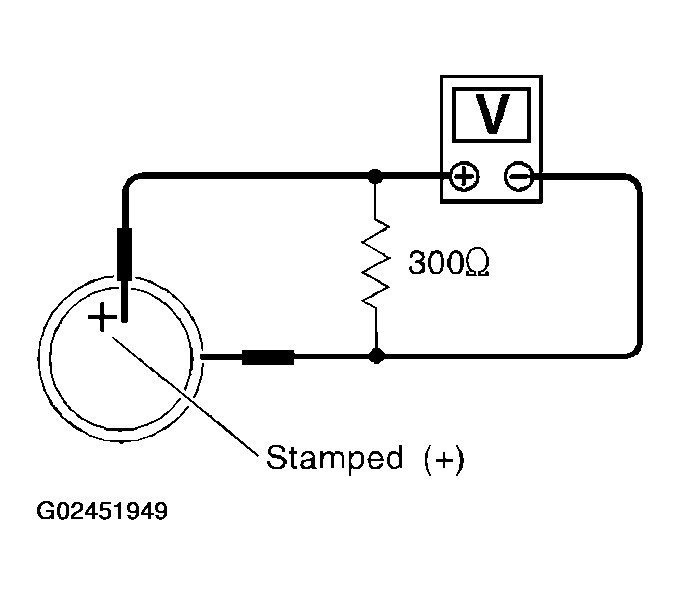

Fig 1: Measuring Voltage Across Battery Positive And Negative Terminals (+) And (-)
Courtesy of NISSAN MOTOR CO., U.S.A.

CHECK KEYFOB FUNCTION

With CONSULT-II

Check keyfob function ("LK BUTTON/SIG", "UN BUTTON/SIG", "TRUNK BTN/SIG", "PANIC BTN", "UN BUTTON ON" and "LK/UN BTN ON") in "DATA MONITOR" mode with CONSULT-II. When pushing each button of keyfob, the corresponding monitor item should be turned as follows.

KEYFOB BATTERY AND FUNCTION CHECK - MONITOR ITEM CONDITION

Condition	Monitor item
Pushing LOCK	LK BUTTON/SIG : ON
Pushing UNLOCK	UN BUTTON/SIG : ON
Pushing TRUNK	TRUNK BTN/SIG : ON
Pushing PANIC	PANIC BTN/SIG : ON
Pushing UNLOCK within 5 seconds after pushing UNLOCK	UN BUTTON ON : ON
Pushing LOCK and UNLOCK at the same time	LK/UN BTN ON : ON

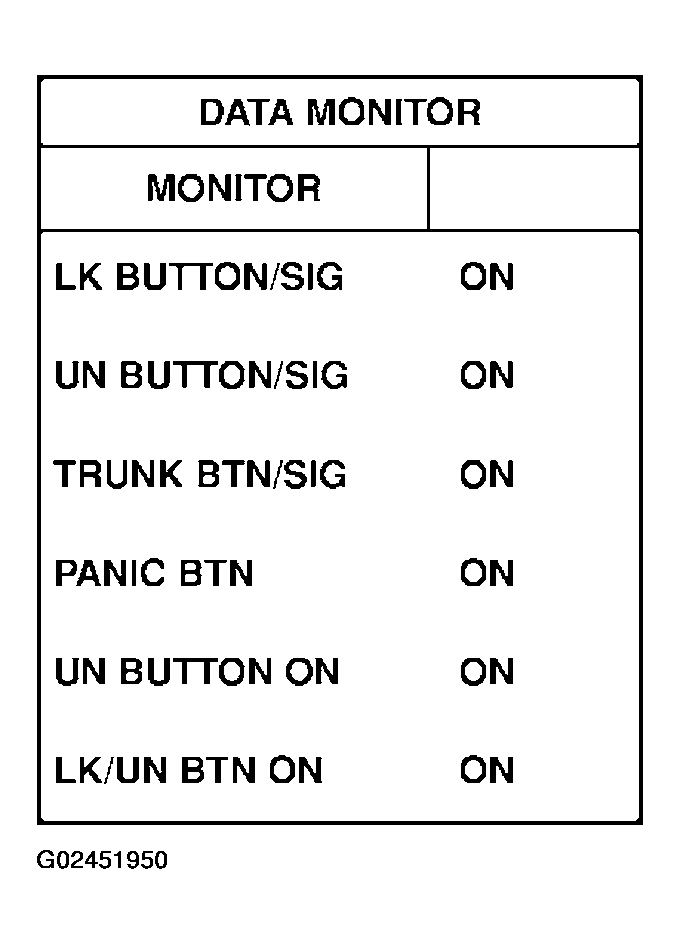

Fig 2: Identifying Keyfob Function On Data Monitor Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Keyfob is OK. Further inspection is necessary. Refer to "SYMPTOM CHART ".
NG: Replace keyfob. Refer to "ID CODE ENTRY PROCEDURE ".
