Key Switch (Insert) Check

CHECK KEY SWITCH INPUT SIGNAL
With CONSULT-II

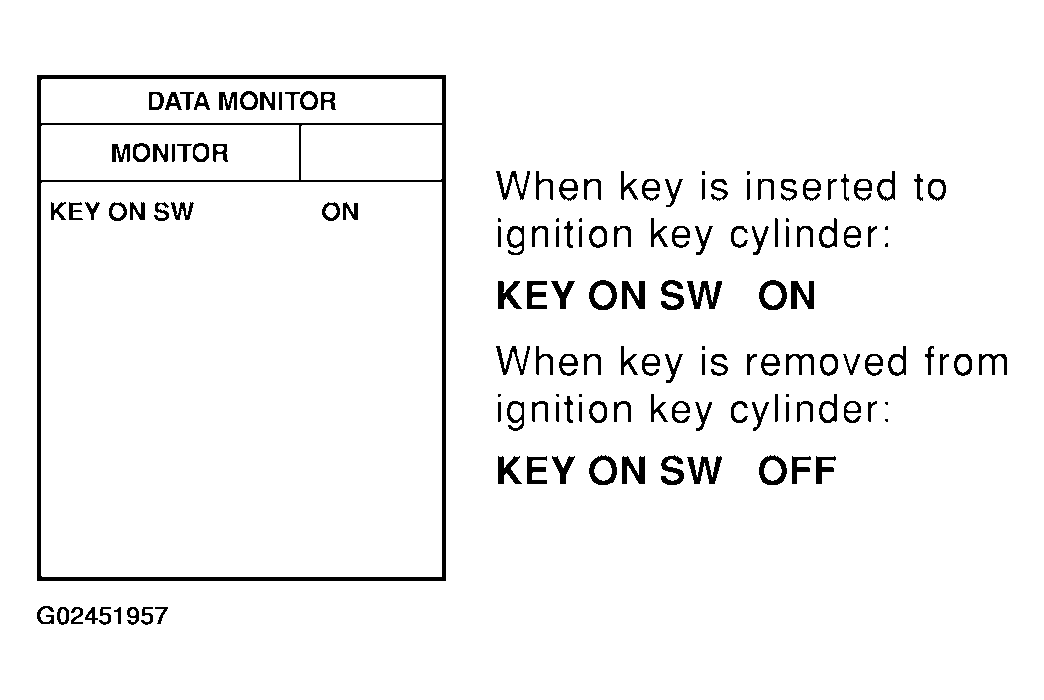

Check key switch ("KEY ON SW") in "DATA MONITOR" mode with CONSULT-II.

Fig 1: Identifying "KEY ON SW" In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

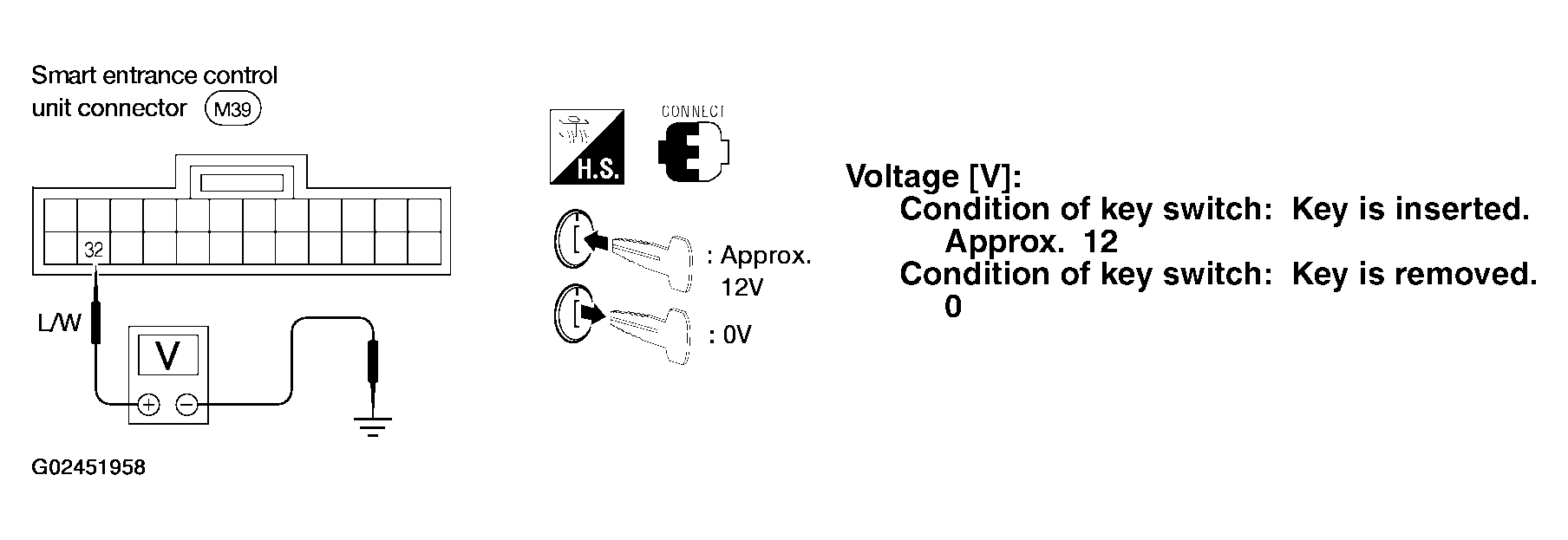

Check voltage between control unit terminal 32 and ground.

Fig 2: Checking Voltage Between Control Unit Terminal 32 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to "WIRING DIAGRAM - KEYLES - ".

OK or NG
- OK: Key switch is OK.
- NG: GO TO 2.
CHECK KEY SWITCH

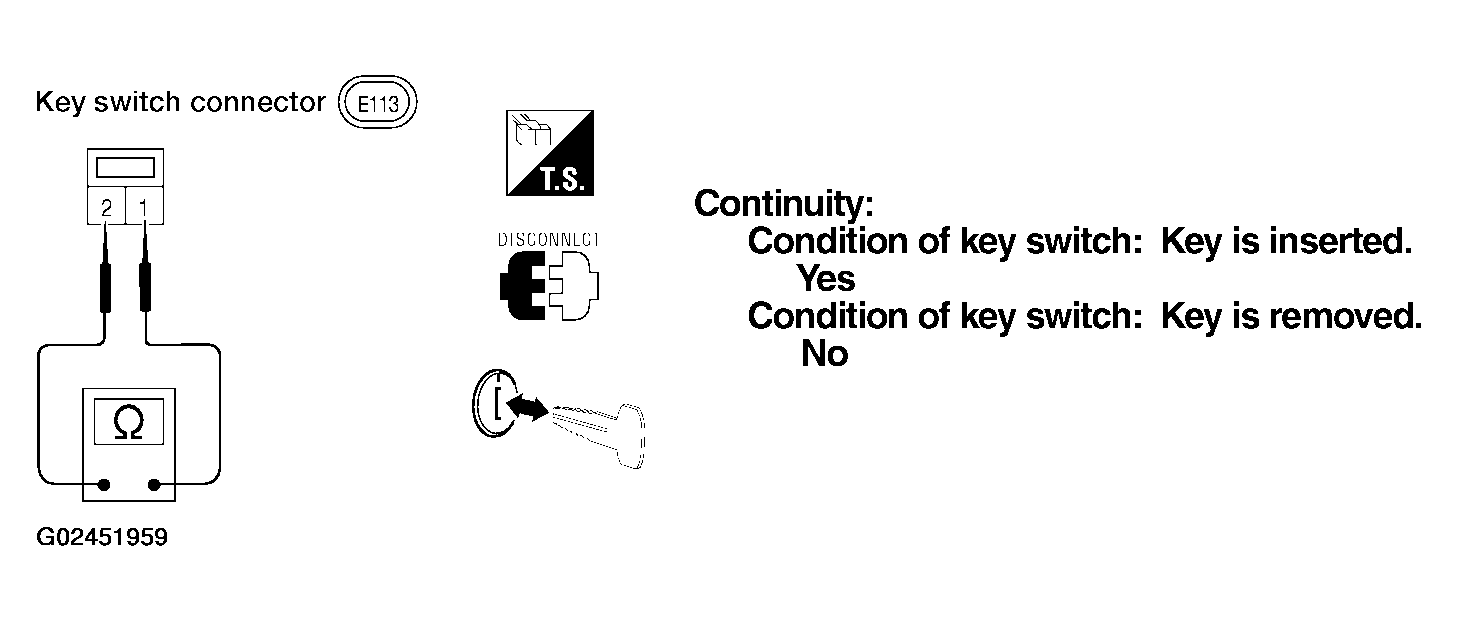

Check continuity between key switch terminals 1 and 2.

Fig 3: Checking Continuity Between Key Switch Terminals 1 And 2
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK: Check the following.
  - 10A fuse [No. 12, located in fuse block (J/B)]
  - Harness for open or short between key switch and fuse
  - Harness for open or short between smart entrance control unit and key switch
- NG: Replace key switch.
