Trouble Diagnoses

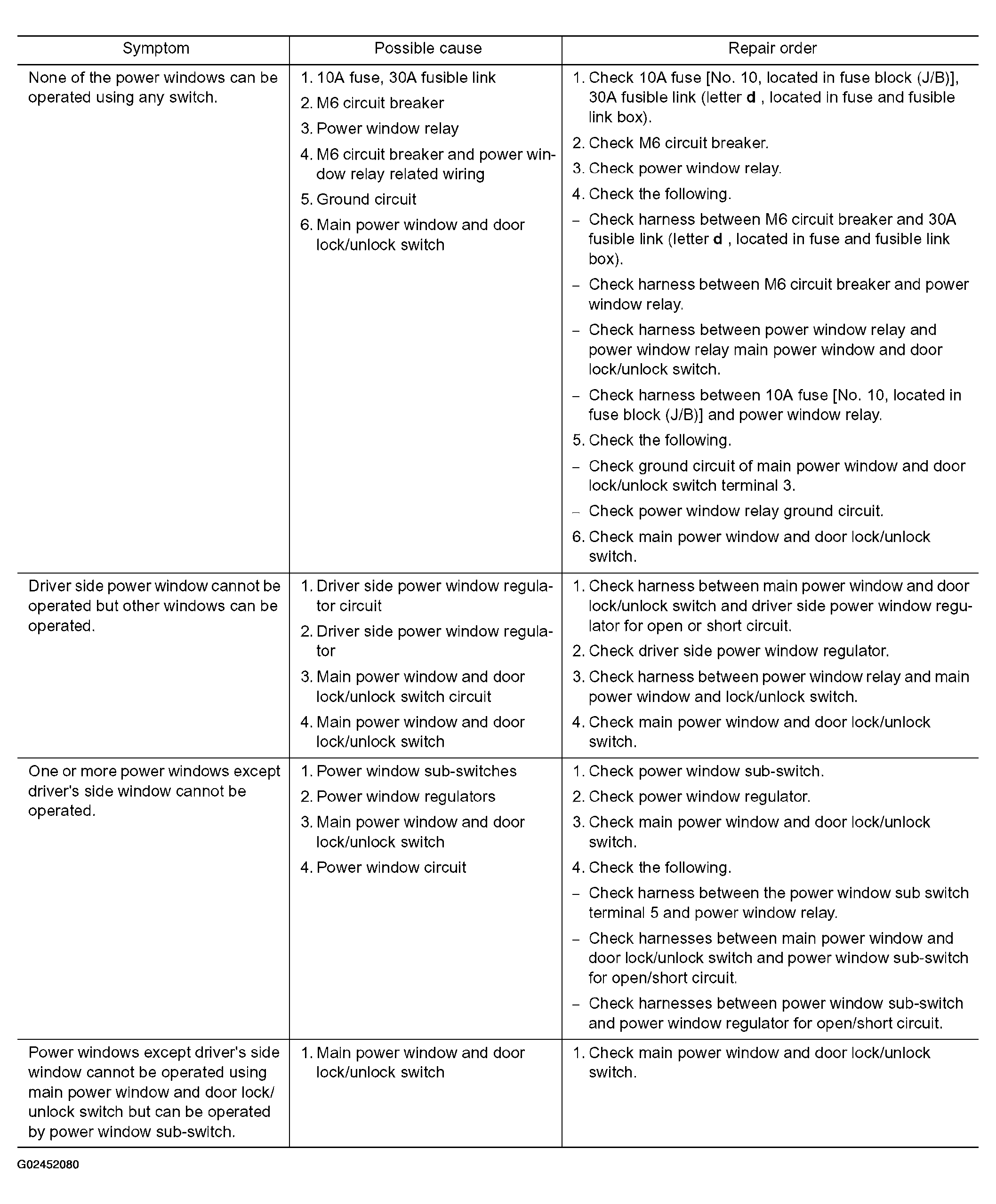

Fig 1: Power Window Trouble Diagnoses Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
