Removal and Installation: Installation

  1. Install mounting bracket as follows:
    1. Determine mounting bracket position on windshield by measuring from top of windshield to top of mounting bracket as shown in Fig 1.
    2. Mark location on outside of windshield with wax pencil or equivalent.
    3. Clean attaching point on inside of windshield with an alcohol saturated paper towel.
    4. Sand bonding surface of mounting bracket with sandpaper (No. 320 or No. 360).

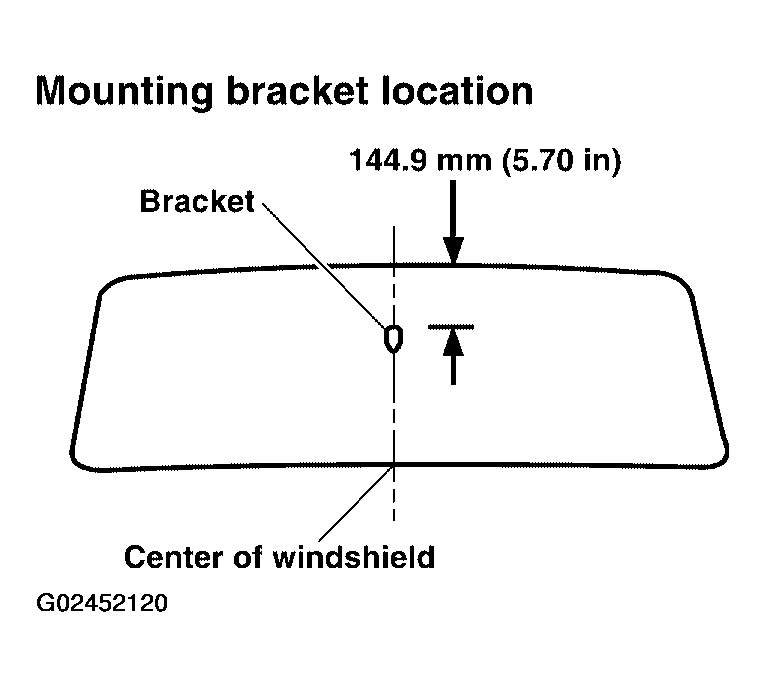

      Fig 1: Installing Rear View Mirror Mounting Bracket
      G02452120Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Clean bonding surface of mounting bracket with an alcohol-saturated paper towel.
    6. Apply Genuine Mirror Adhesive or equivalent to bonding surface of mounting bracket. Refer to RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS .
    7. Install mounting bracket at pre-marked position and press mounting bracket against glass for 30 to 60 seconds.
    8. After five minutes, wipe off excess adhesive with an alcohol-moistened paper towel.
  2. Install rear view mirror.
