Rear Window Defogger Switch

With air control (rear window defogger switch) connector M32 disconnected, check continuity between terminals 3 and 5 when rear window defogger switch is pushed and released.

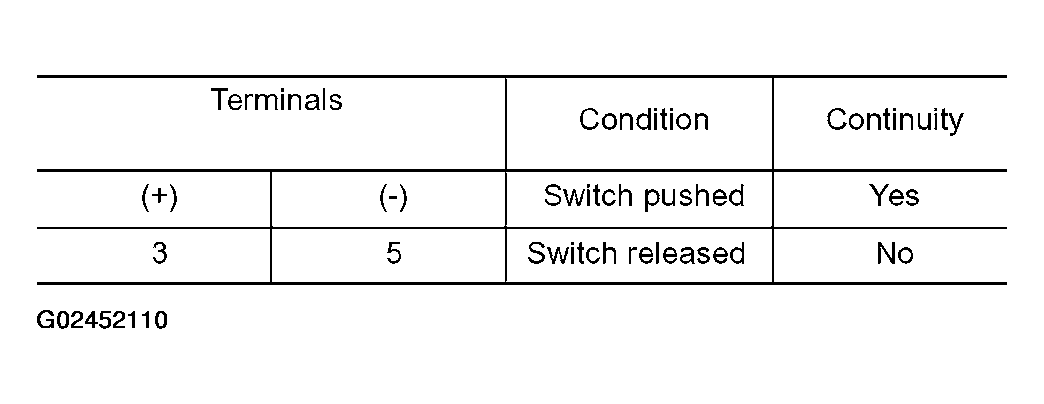

Fig 1: Rear Window Defogger Switch Terminals, Condition & Continuity Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

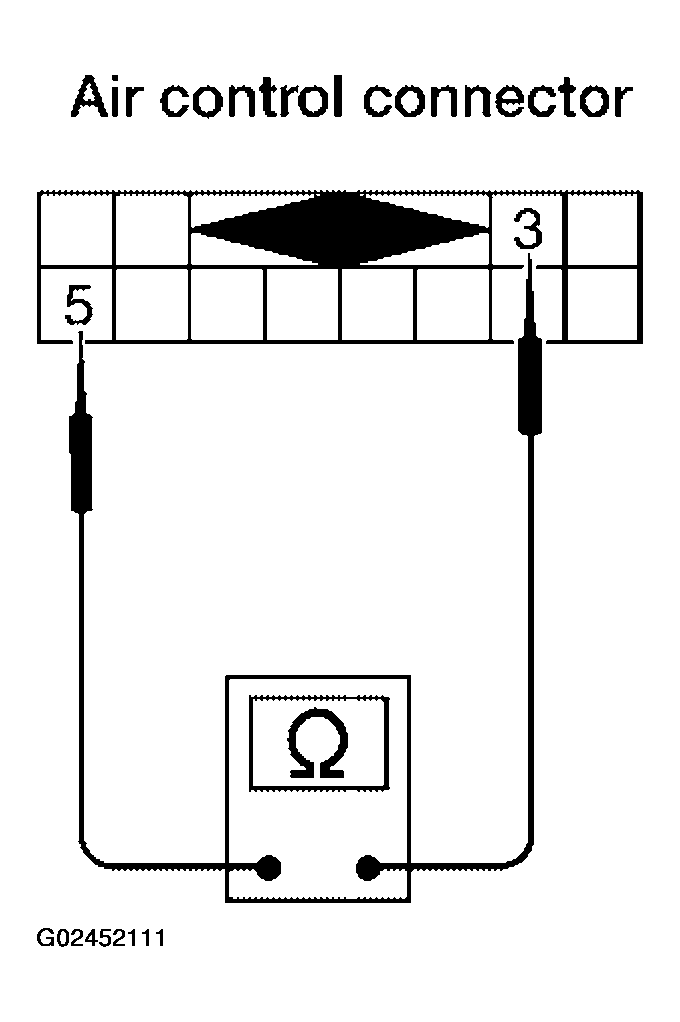

Fig 2: Checking Continuity Between Rear Window Defogger Switch Terminals 3 & 5

Courtesy of NISSAN MOTOR CO., U.S.A.
