Parking Brake Control: Components

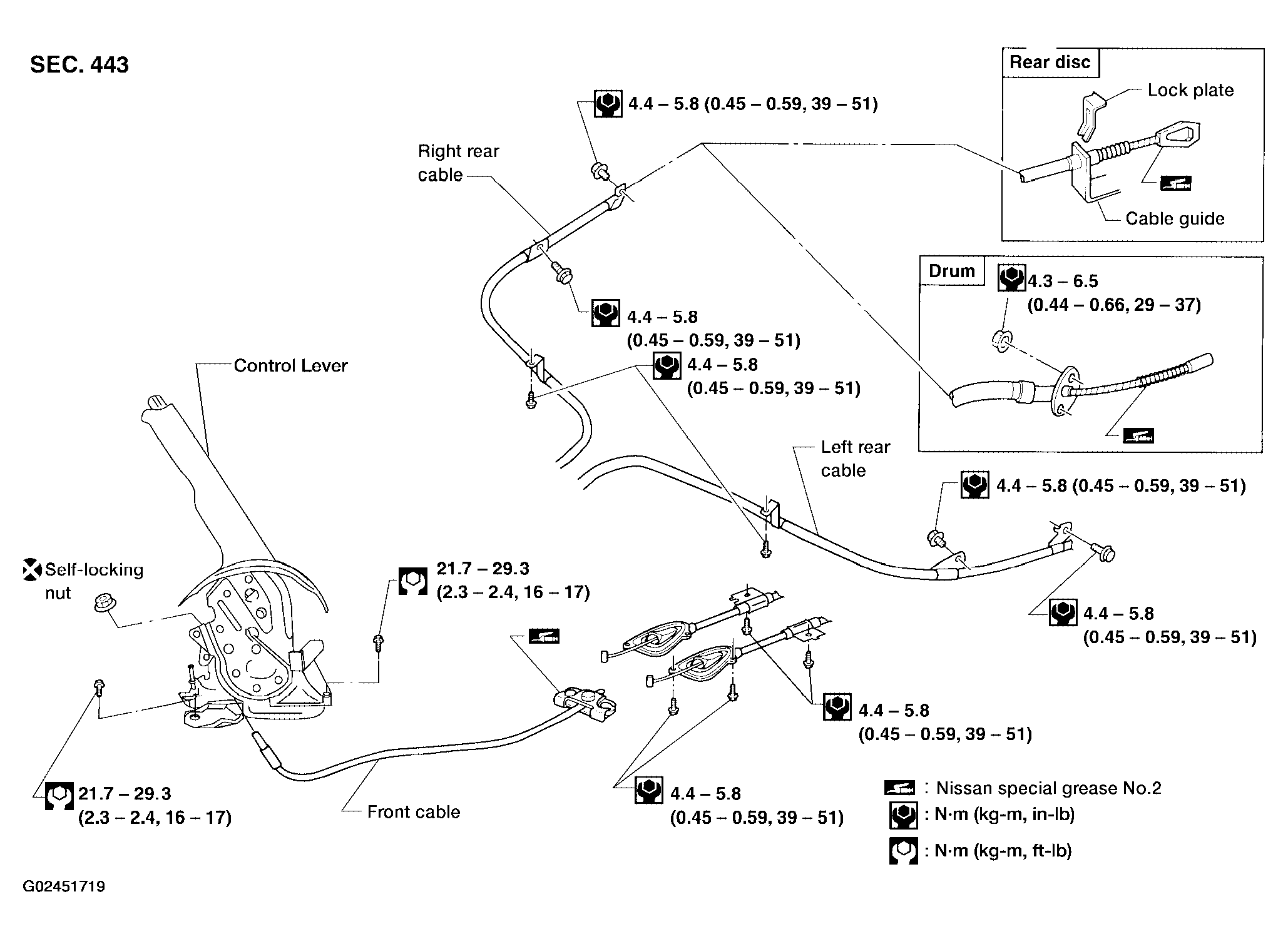

Fig 1: Parking Brake Control Replacement Components With Torque Specifications
G02451719Courtesy of NISSAN MOTOR CO., U.S.A.
