Component Parts and Harness Connector Location

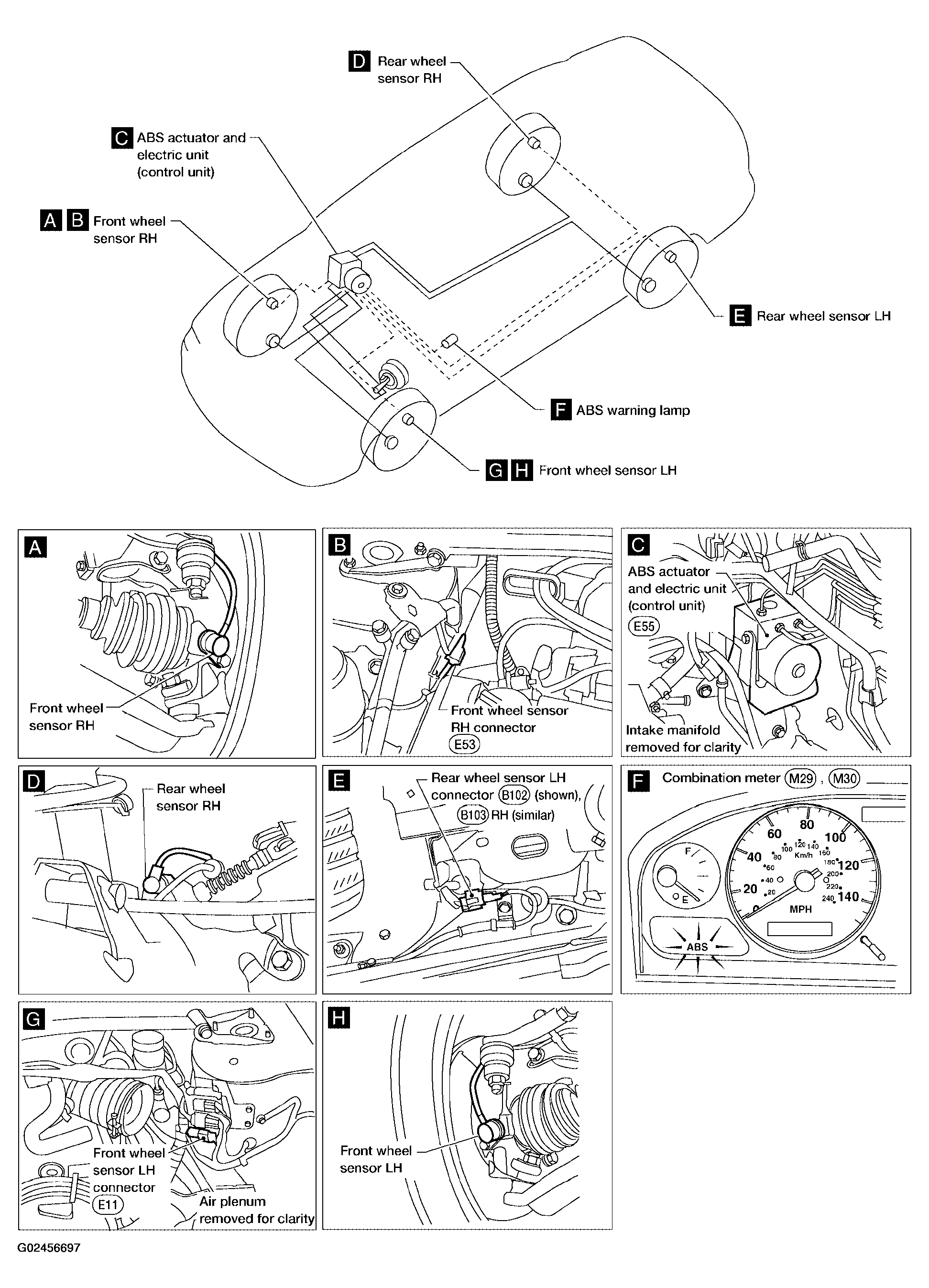

Fig 1: Identifying ABS Component & Harness Connector Locations
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
