ABS Actuator Operation

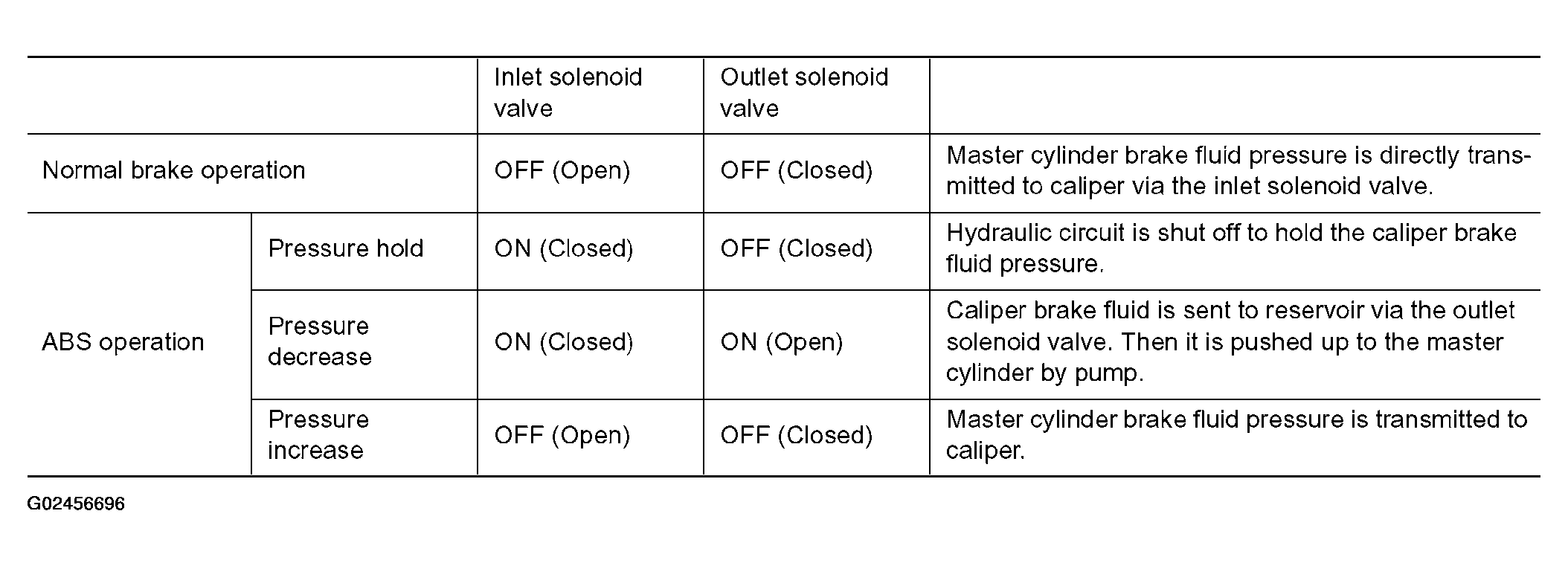

Fig 1: ABS Actuator Operation Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
