Wiring Diagram - ABS

For references to PG-POWER, see POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

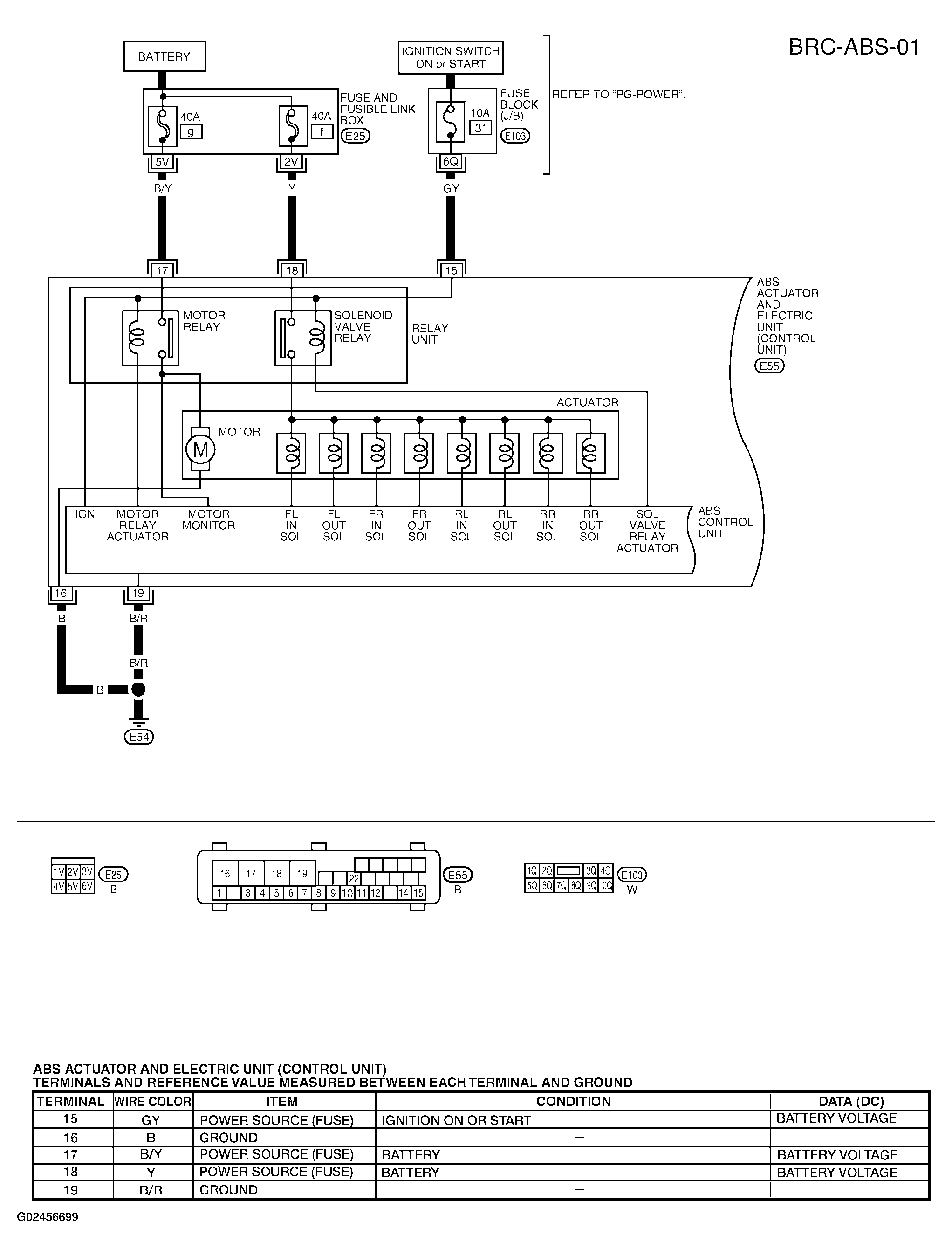

Fig 1: Wiring Diagram - ABS (BRC-ABS-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

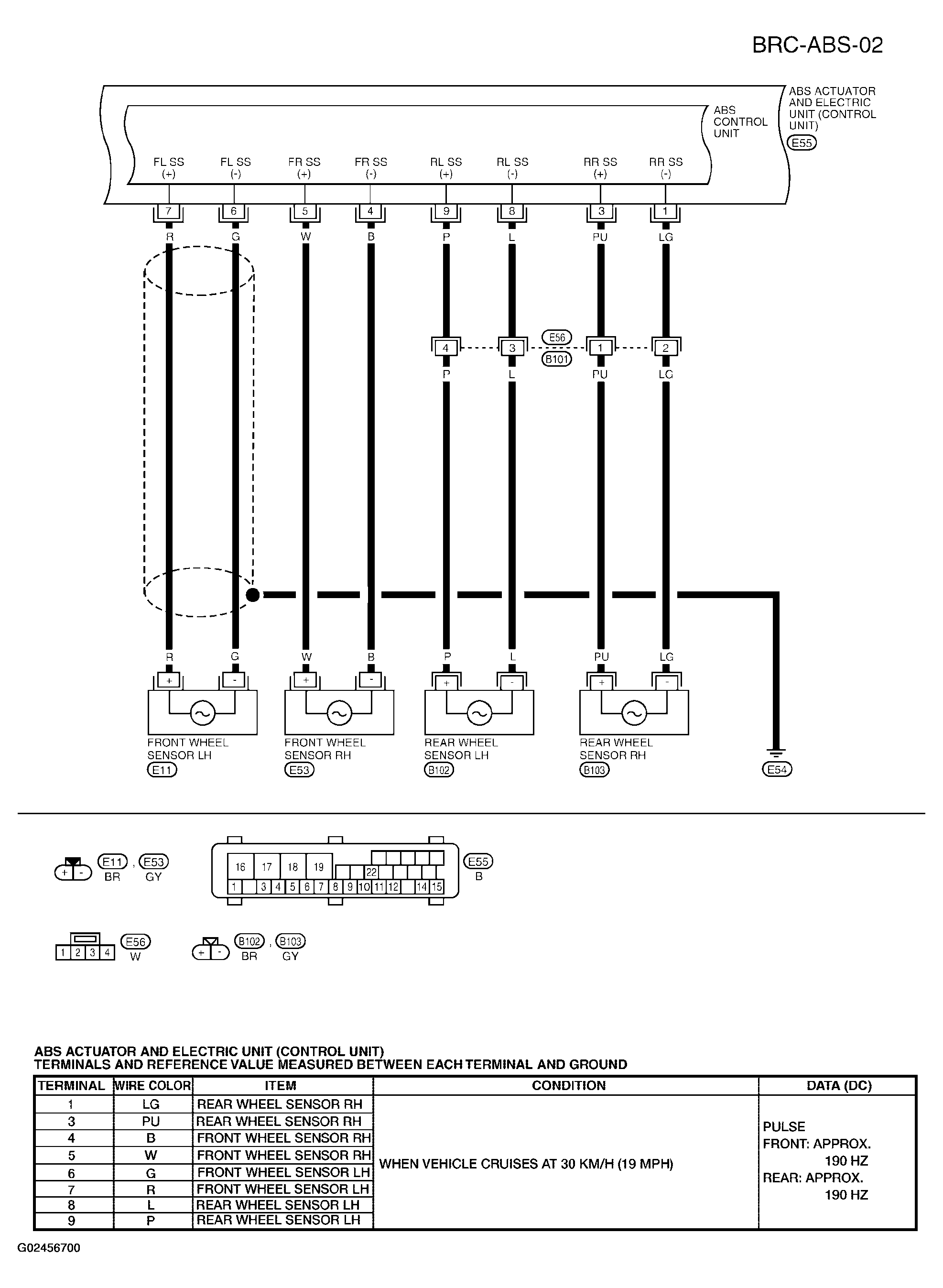

Fig 2: Wiring Diagram - ABS (BRC-ABS-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

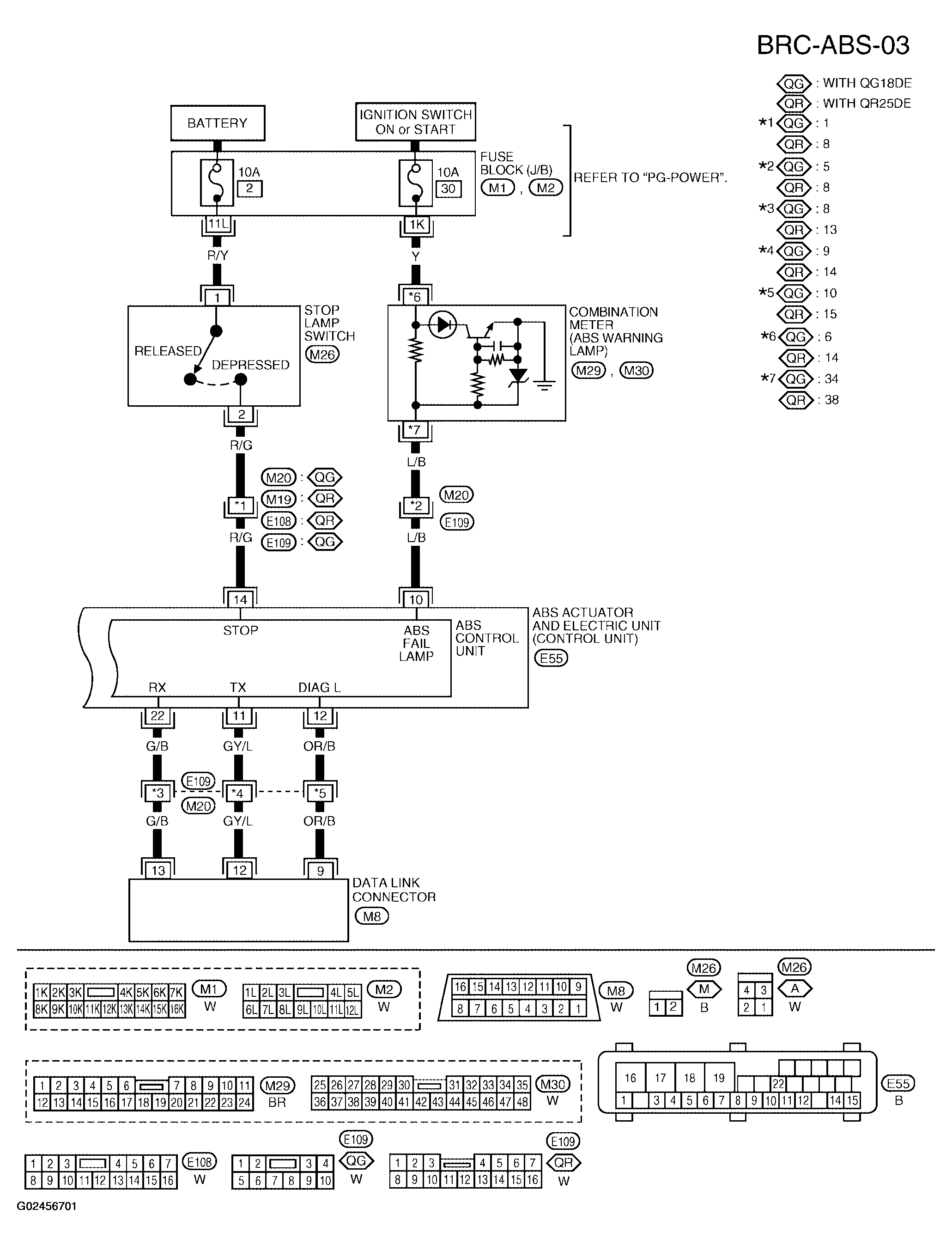

Fig 3: Wiring Diagram - ABS (BRC-ABS-03)

Courtesy of NISSAN MOTOR CO., U.S.A.

ABS actuator and electric unit (control unit) terminals and reference value measured between each terminal and ground.

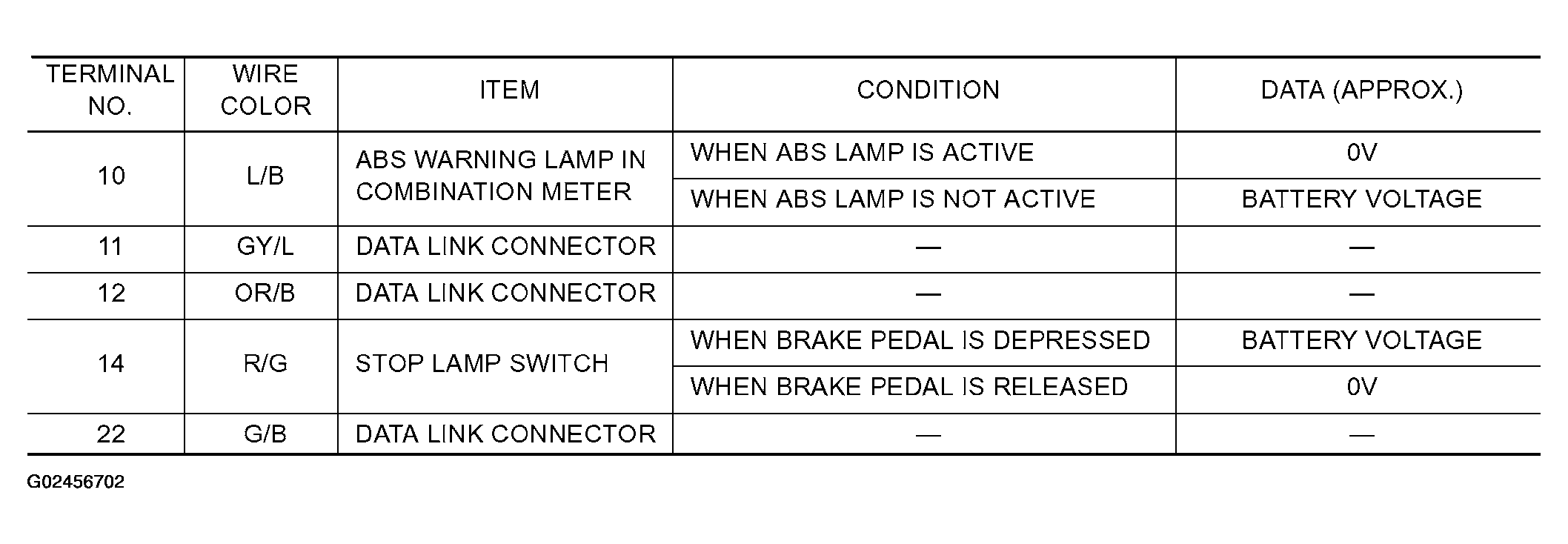

Fig 4: ABS Actuator & Electric Unit Terminals & Reference Value Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
