Removal and Installation: Actuator: Notes

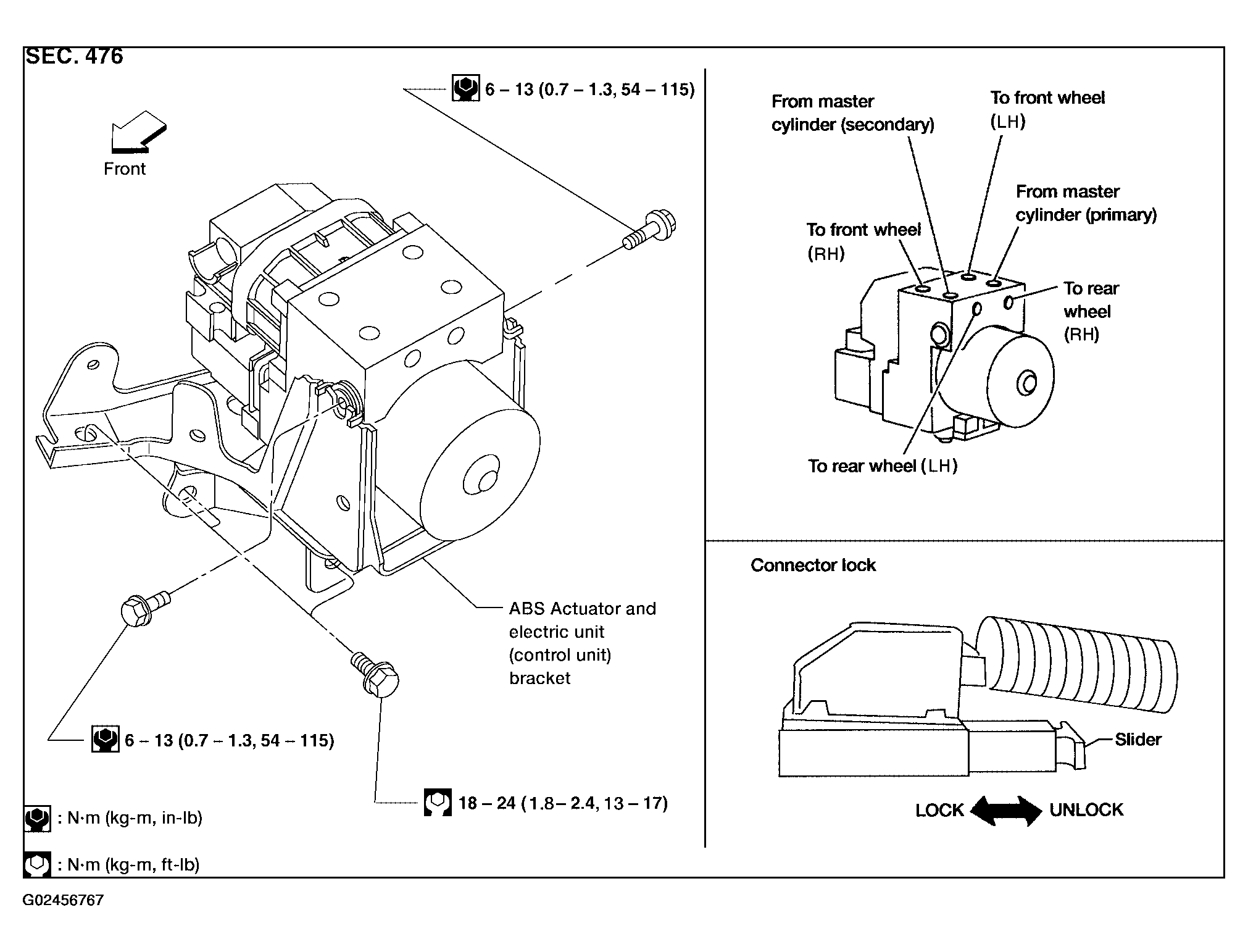

Fig 1: ABS Actuator With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
