Preliminary Check

Check brake fluid for contamination.

Has brake fluid been contaminated?

• Yes: Replace. GO TO  2.
• No: GO TO  2.

Check brake fluid level in reservoir tank.

Low fluid level may indicate brake pad wear or leakage from brake line.

Is brake fluid filled between MAX and MIN lines on reservoir tank?

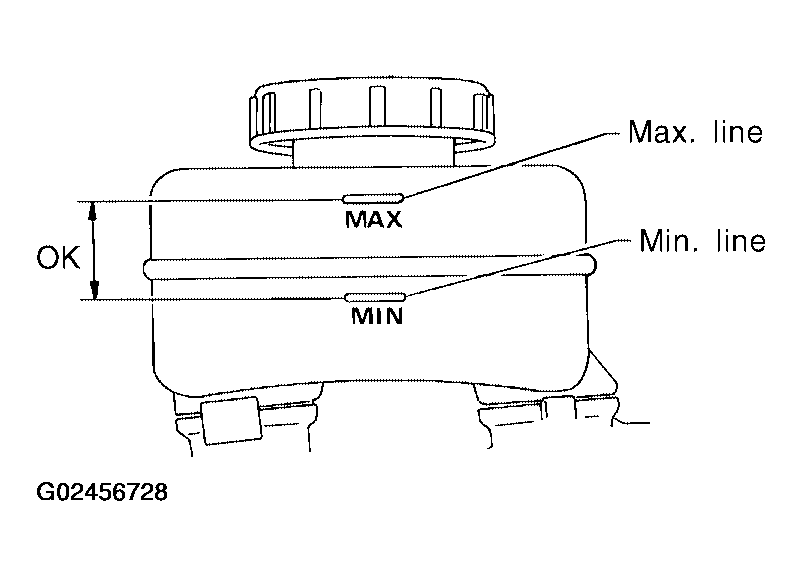

Fig 1: Identifying Brake Fluid Level On Reservoir

Courtesy of NISSAN MOTOR CO., U.S.A.

• Yes: GO TO  3.
• No: Fill brake fluid. GO TO  3.

Check brake line for leakage.

Is leakage present at or around brake lines, tubes or hoses or are any of these parts cracked or damaged?

• Yes: Repair or replace as required. GO TO  4.
• No: GO TO  4.

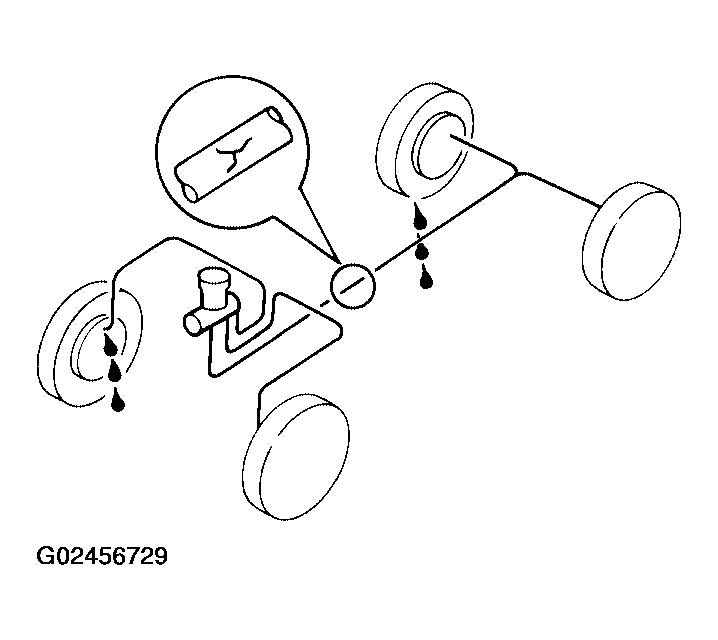

Fig 2: Checking Brake Line Leakage

Courtesy of NISSAN MOTOR CO., U.S.A.

Check brake booster for operation. Refer to OPERATING CHECK . Also, check air tightness. Refer to AIRTIGHT CHECK .

Is brake booster airtight and functioning properly?

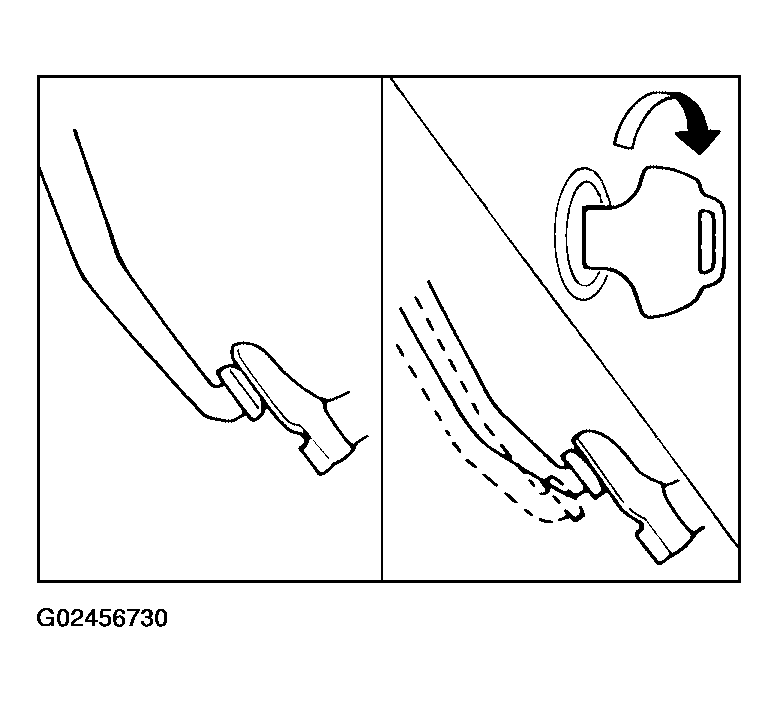

Fig 3: Checking Brake Booster Operation

Courtesy of NISSAN MOTOR CO., U.S.A.

• Yes: GO TO  5.
• No: Replace; GO TO  5.

Check brake pad, rotor, shoe and drum.

Refer to FRONT DISC BRAKE (CL25VA/CL25VB TYPE) , FRONT DISC BRAKE (OPB27VA TYPE) , REAR DISC BRAKE or REAR DRUM BRAKE .

Are brake pads, rotors, shoes and drums functioning properly?

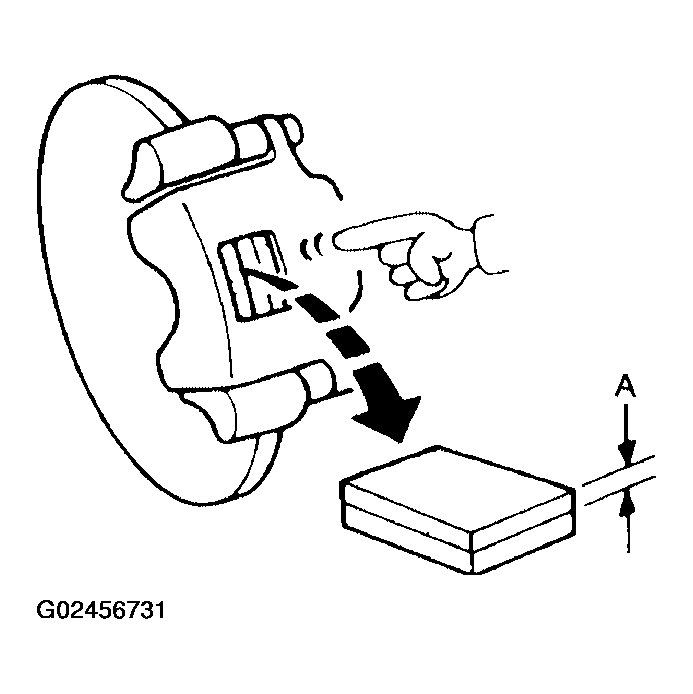

Fig 4: Checking Brake Pad Thickness

Courtesy of NISSAN MOTOR CO., U.S.A.

• Yes: GO TO  6.
• No: Replace.

Check brake fluid level in reservoir tank again.

Is brake fluid filled between MAX and MIN lines on reservoir tank?

Fig 5: Identifying Brake Fluid Level On Reservoir

Courtesy of NISSAN MOTOR CO., U.S.A.

• Yes: GO TO  7.
• No: Fill brake fluid reservoir to specification.

Check warning lamp activation.

Does warning lamp turn on when ignition switch is turned ON?

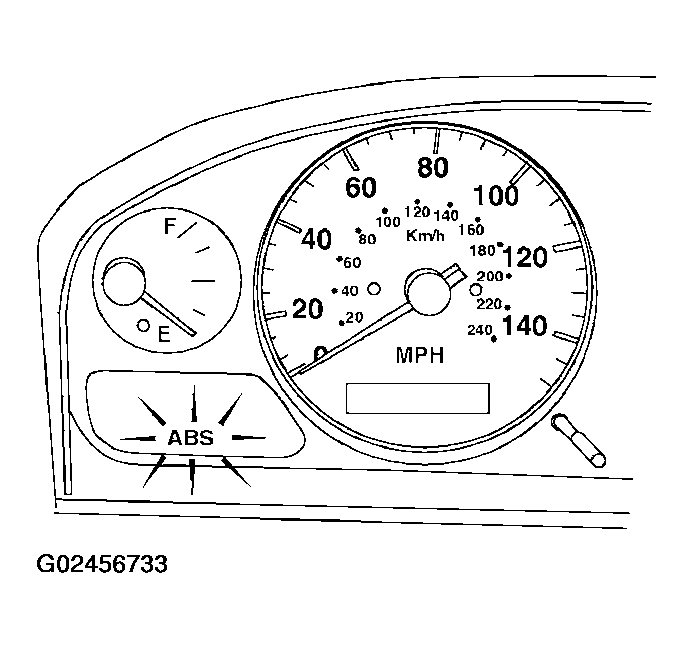

Fig 6: Checking ABS Warning Lamp Activation

Courtesy of NISSAN MOTOR CO., U.S.A.

• Yes: GO TO  8.
• No: Check fuse, warning lamp bulb and warning lamp circuit.

Check warning lamp for deactivation after engine is started.

Does warning lamp turn off when engine is started?

• Yes: GO TO  9.
• NO (with CONSULT-II): Refer to SELF-DIAGNOSIS PROCEDURE .
• NO (without CONSULT-II): Refer to SELF-DIAGNOSIS PROCEDURE .

Drive vehicle at speeds over 30 km/h (19 MPH) for at least one minute.

Does warning lamp remain off after vehicle has been driven at 30 km/h (19 MPH) for at least one minute?

• Yes: Inspection End.
• NO (with CONSULT-II): Refer to SELF-DIAGNOSIS PROCEDURE .
• NO (without CONSULT-II): Refer to SELF-DIAGNOSIS PROCEDURE .
