Work Flow

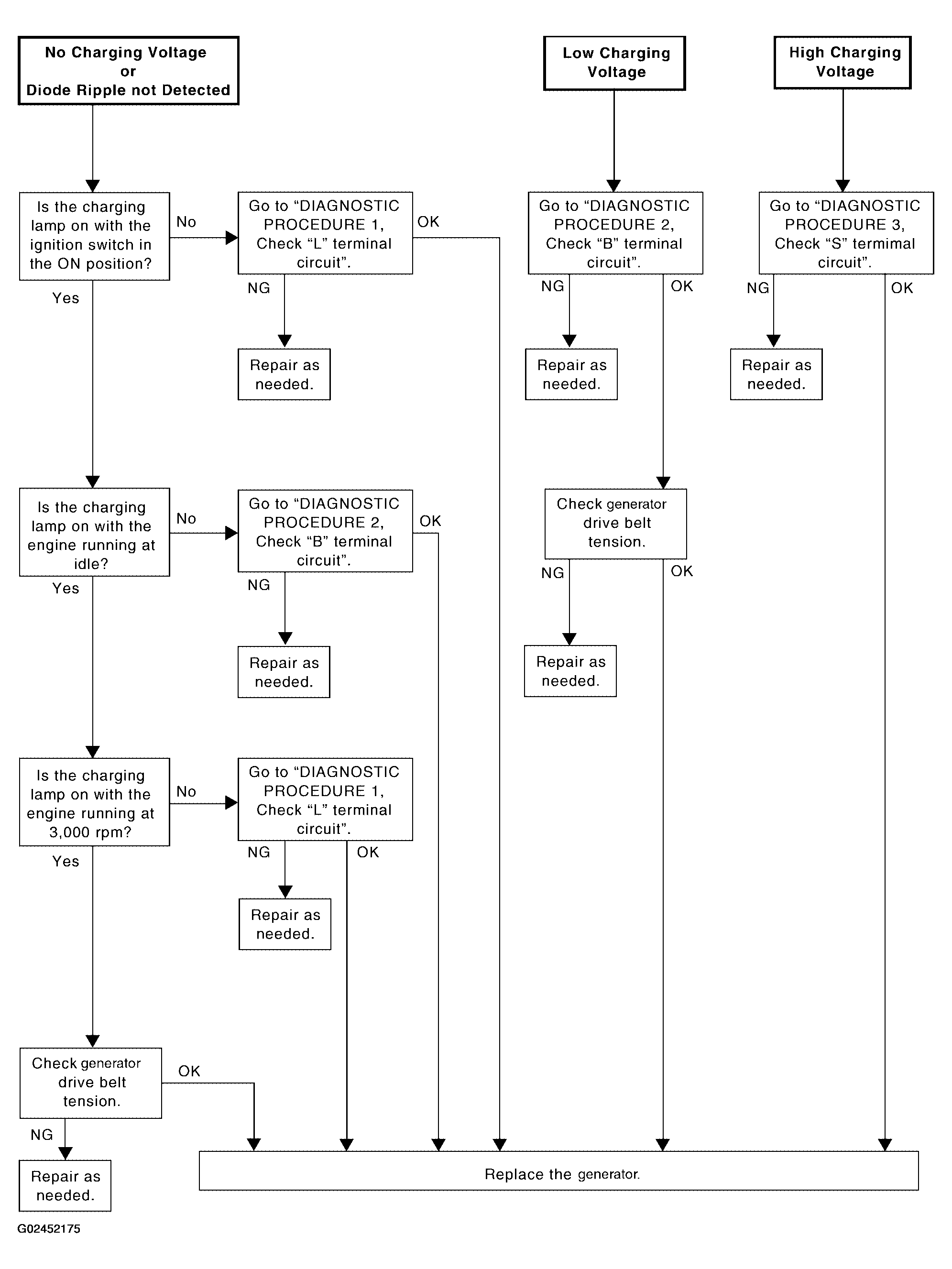

Fig 1: Charging System Diagnosis - Work Flow Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
