Service Data And Specifications (SDS): Generator

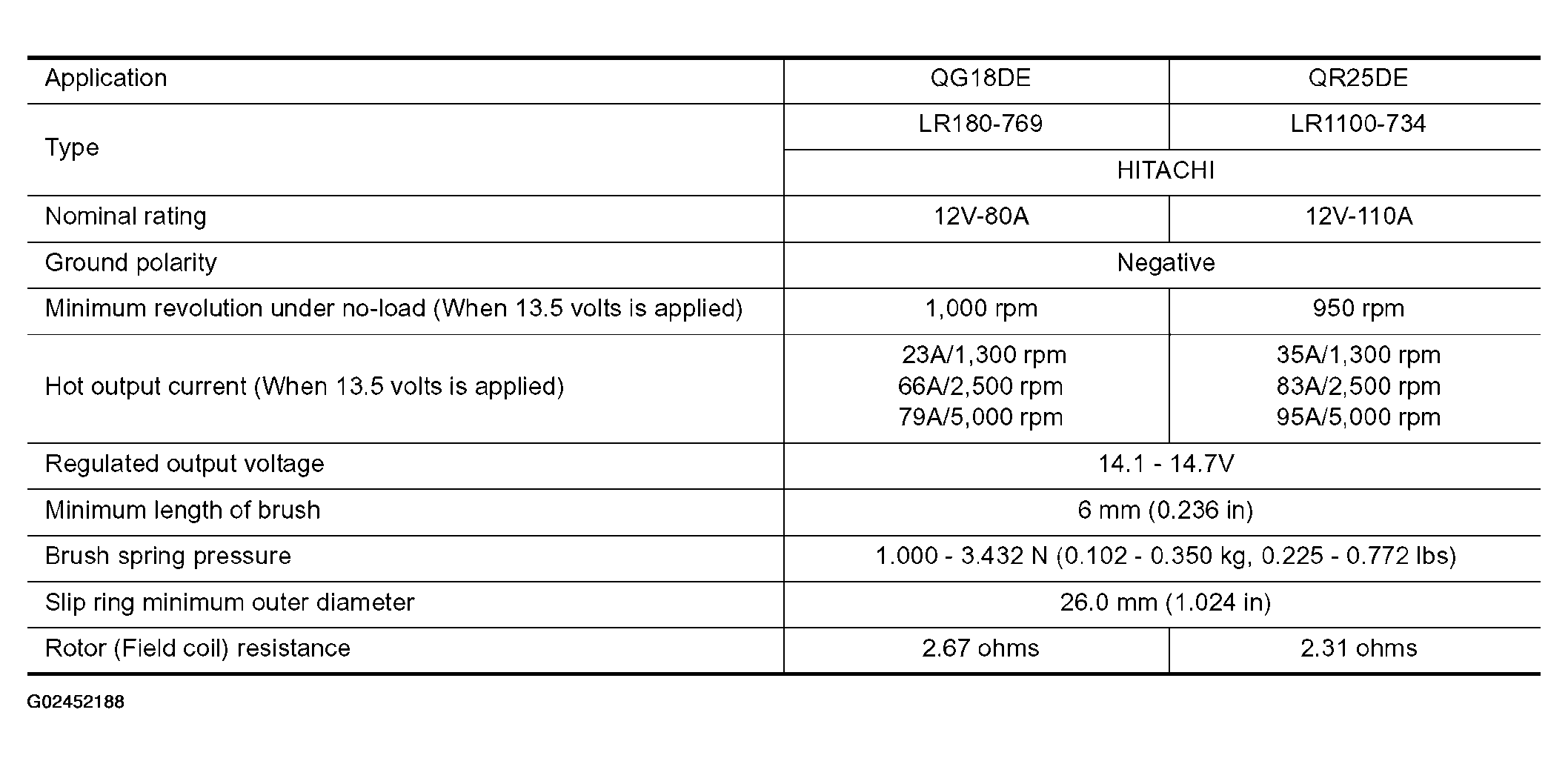

Fig 1: Generator Specification Chart

G02452188

Courtesy of NISSAN MOTOR CO., U.S.A.
