Preliminary Check

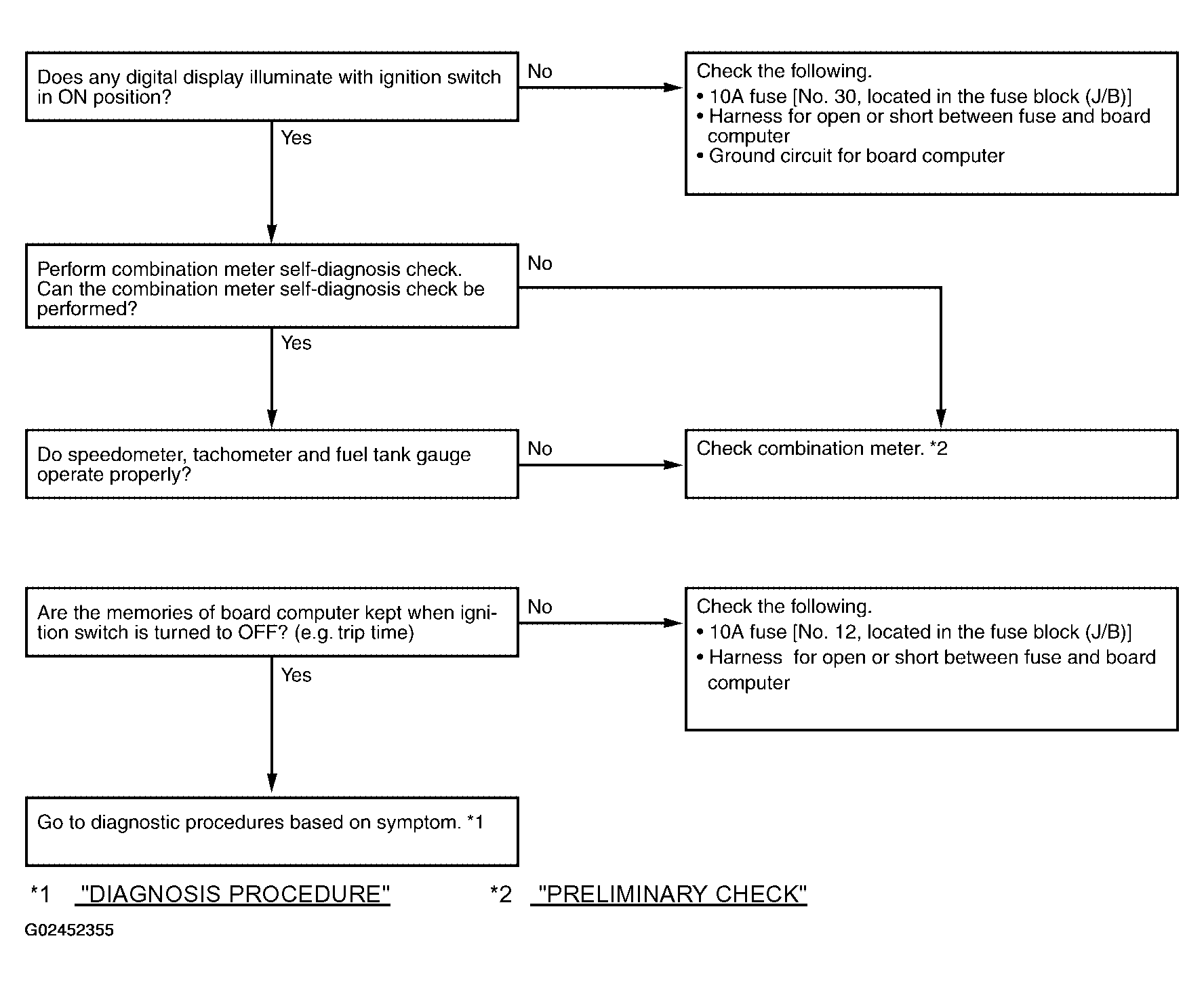

Fig 1: Trouble Diagnoses (Preliminary Check) - Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
