Wiring Diagram - B/COMP -
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Wiring Diagram - B/COMP -

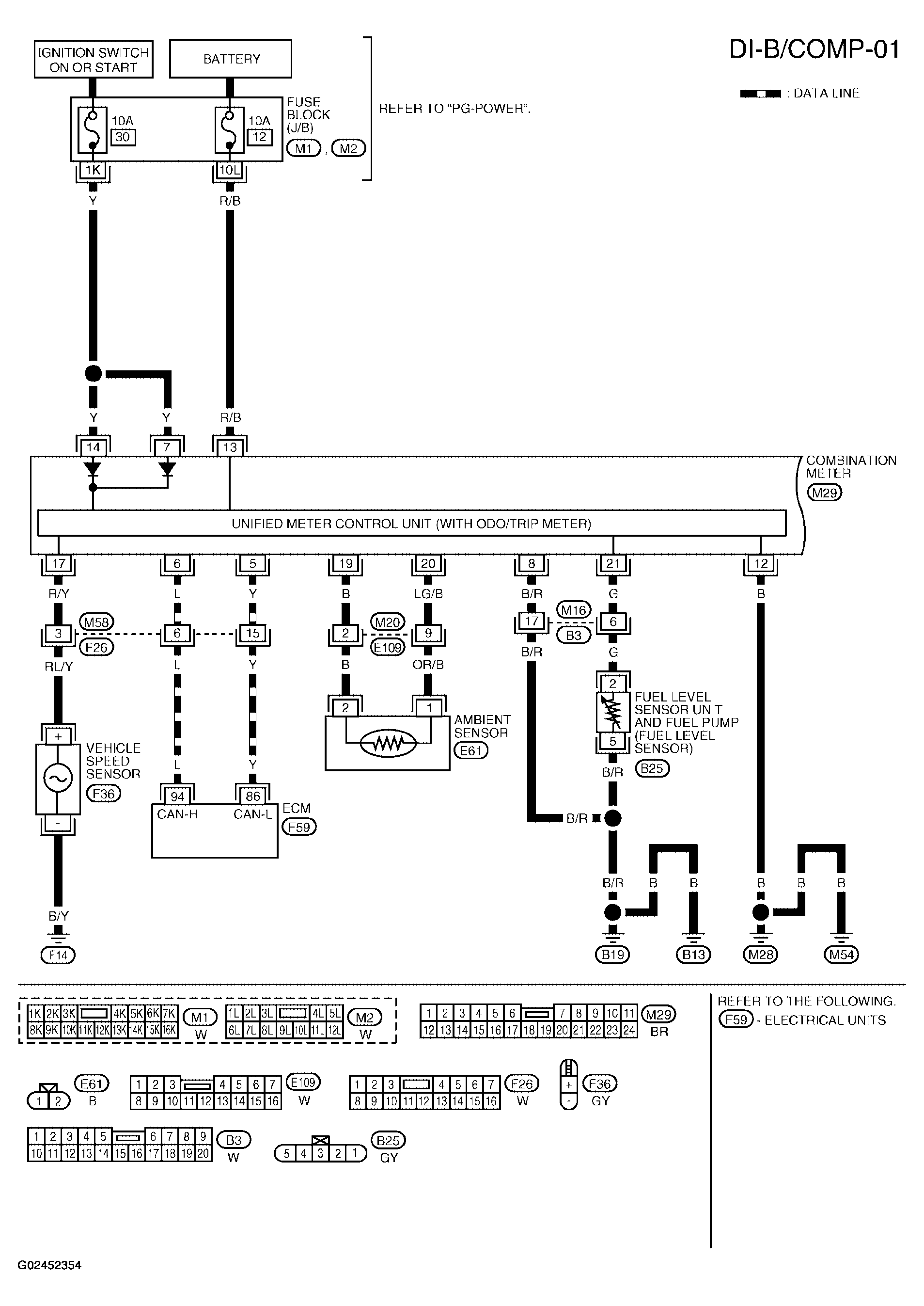

Fig 1: Wiring Diagram - DI-B/COMP-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
