Fuel Level Sensor Unit Check

• For removal, refer to "REMOVAL AND INSTALLATION ".

Check the resistance between terminals 2 and 5.

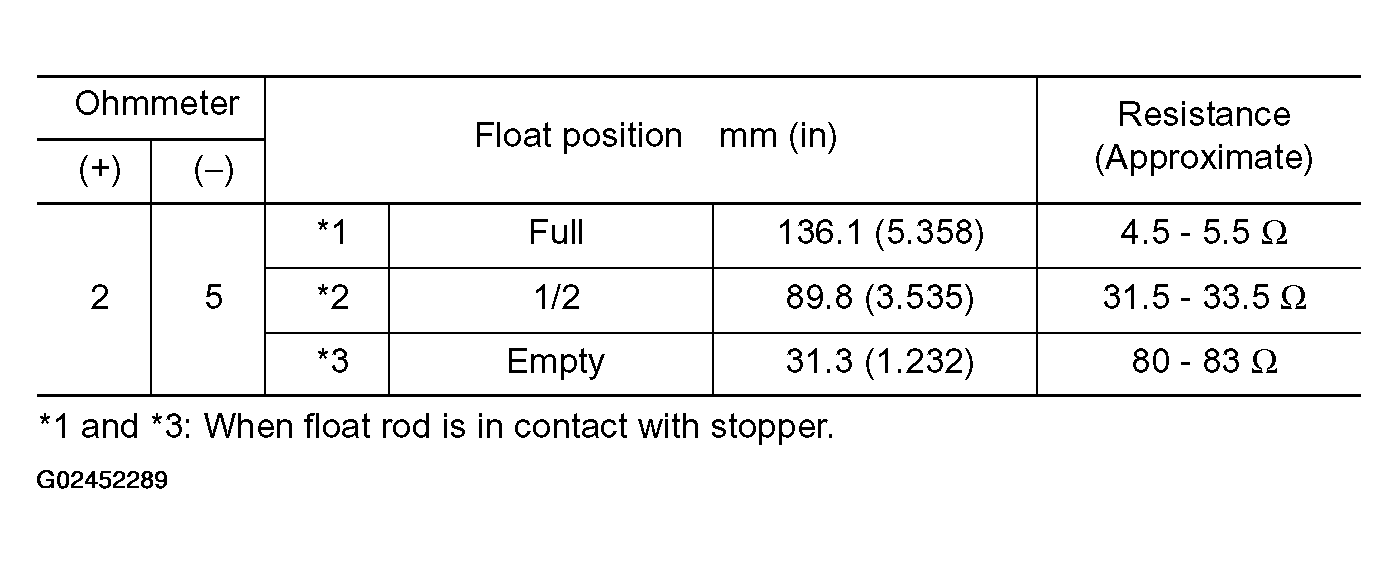

Fig 1: Fuel Level Sensor Unit Check - Terminal Resistance Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking Resistance Between Terminals 2 And 5

Courtesy of NISSAN MOTOR CO., U.S.A.
